K65
Speedy Product Code 35/0562

Key Features & Benefits
- High Power, LED mobile area lighting tower providing superb illumination over a large area from low power requirement
- Approximately 70% lower light pollution than typical lighting tower designs
- Easy & safe to store, transport and set up with 6.5M max height
- Compact to store, mobile over any terrain
- Light heads can be positioned for 180˚ to 360˚ illumination with average 20 lux illumination over 6868m2 area.
- Powered by diesel generators, mains power or RITE-POWER portable battery powered generators

K65 Photo Gallery
K45 4.5M MOBILE LIGHTING TOWER
Speedy Product Code 22/0095

Key Features & Benefits
- High Power LED mobile lighting tower providing up to 195,000 lumens from low 1460W power consumption
- Easy to store, transport and set up
- Optimised illumination and uniformity of light
- Light heads can be positioned for 180˚ to 360˚ illumination
- Safe to operate, one person quick deployment.
- Powered by diesel generators, mains power or RITE-POWER portable battery powered generators
- Sensor option available to minimise power requirements

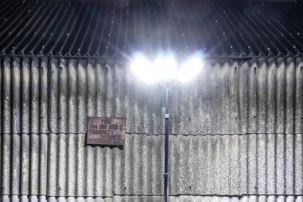

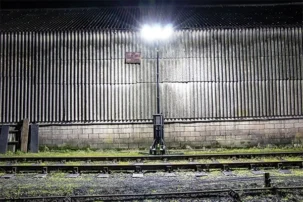

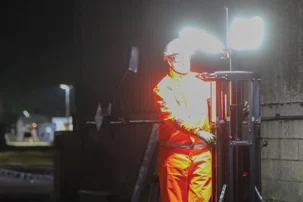

K45 Photo Gallery
PROLINK LINKABLE FLOOD LIGHT
Speedy Product Code 35/0508

Key Features & Benefits
- Ultra Efficient LED linkable track light compatible with generators and batteries
- Low power consumption allows product to be powered from RITE-POWER battery packs
- Minimised light pollution from bespoke optics and beam control lensing
- Full Even coverage between lights along track exceeding HSE required levels
- Smaller & lighter than other track lighting – avoids issues with weight limits, space on vehicles & security
- Lower carbon footprint in use and in supply chain
- Rugged construction & maintenance free
- Fully compatible with existing lighting systems & deployment methods – Masts, Bases, Cables


Typical Installation

Average Lux – Approx 34 lux
Power Options for Pro-LINK lighting chains
1 x RITE-POWER 1750 Battery Generator will power 10 x Prolink Linkable Floodlights over 100M for up to 11 hours
1 x RITE-POWER 1750×2 Battery Generator will power 10 x Prolink Linkable Floodlights over 100M for up to 22 hours
1 x RITE-POWER 3850 Battery Generator will power 20 x Prolink Linkable Floodlights over 200M for up to 12 hours
Prolink Photo Gallery
Product Used With
PROLINK SAFETY SHIFT LED LINKABLE TRACK LIGHT
Speedy Product Code 35/0557

Key Features & Benefits
- Rechargeable battery powered linkable LED track light
- Works in conjunction with a mains 110V supply to provide emergency back up light
- Fit alongside Prolink linkable floodlights – light will remain on if mains power fails
- 12 hour duration on one charge
Product Used With
K45-LITE
Speedy Product Code 35/0556

Key Features & Benefits
- High power, Multi-Functional 360o Area lighting system
- 85,000 lumen output
- Directional or 360o area lighting
- Easy to transport and setup,
- Fast, simple, safe deployment system
- Light to carry along tracks
- 3.1-4.1m height optional tripods from small ground footprint
- Fitted with standard DIN tripod mounting for use with all industry standard tripods with DIN spigot
- Fully dimmable for optimum control of light output and run-time when using the RITE-POWER battery powered generators

Typical Installation

Recommended distance up to 60M apart (20 lux average area @ 100% power)
Power Options for the K45-LITE
1 x RITE-POWER 1750 Battery Generator will power 1 x K45-LITE for 2.5 hours at full power
1 x RITE-POWER 1750×2 Battery Generator will power 1 x K45-LITE for 5 hours at full power or 16 hours @ 30% power
Setup Options

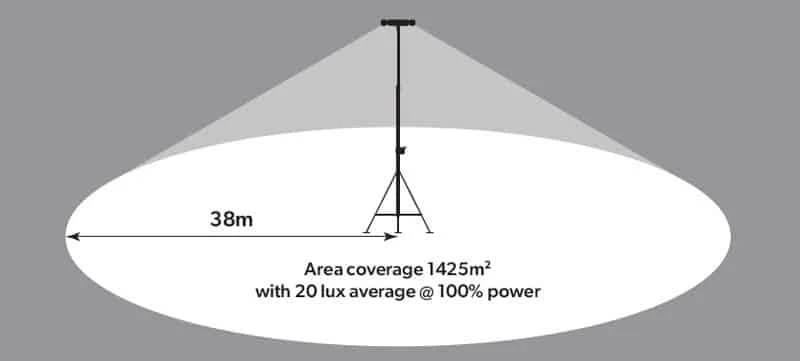

360 Degree Area Lighting

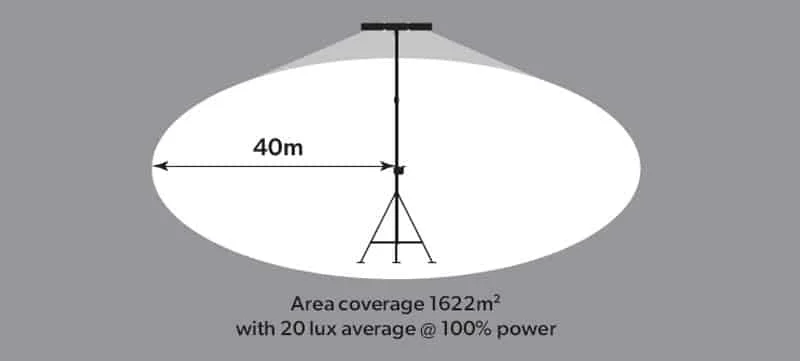

Directional Area Lighting

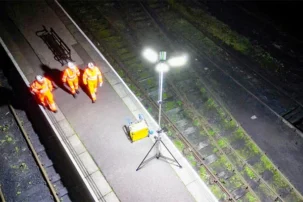

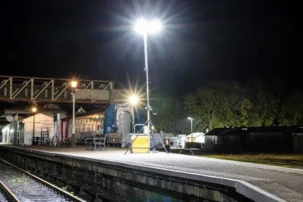

K45-LITE Photo Gallery
Product Used With
K21 LED BEAM CONTROL TWIN HEAD
Speedy Product Code 35/0501 | Twin Head Adaptor 35/0502 | Mag Braket 35/0503 | Tripod 22/0142

Key Features & Benefits
- Advanced beam control optics for optimised light spread
- High levels of uniformity and no dark spots
- Minimal light spill / pollution
- Beam control prevents light being wasted and spilt where not wanted
- Maximum efficiency achieved
- Only 220W of power
- Compact low weight
- Twin element hybrid optics
- Configurable to single or twin mounting
- Magnet mounting / Pole / Fence mounting options

Typical Installation

K21 fitted to gantry or tripod, dual lights
84 lux average. 50 lux minimum. 50m spacing

K21 fitted to gantry, single light
40 lux average. 25 lux minimum. 50m spacing

K21 fitted to gantry or tripod, staggered down track dual lights
85 lux average. 14 lux minimum. 100m spacing alternate
Power Options for the K21
1 x RITE-POWER 1750×2 Battery generator will power 1 x K21 light for 30 hours
1 x RITE-POWER 1750×2 Battery generator will power 2 x K21 lights for 15 hours
1 x RITE-POWER 3850 Battery generator will power 2 x K21 lights for up to 16 hours
1 x RITE-POWER 7770 Battery generator will power 4 x K21 lights for up to 16 hours
K21 Photo Gallery
Product Used With
RITE-POWER Industrial Portable Battery Powered Generators
Speedy Product Code: RP1750 – 35/0543 | RP3850 – 35/0561 | RP7000 – 35/0598

Key Features & Benefits
- Ultra flexible, reliable portable power supply for any remote power location
- Powers Ritelite lighting products and other compatible equipment including tools
- Silent, fume free, safe operation for indoor and outdoor use.
- No fuel requirements, rechargeable lithium batteries
- No maintenance requirements
- Highly portable and able to easily be removed from site avoiding security issues
- Long duration solution for weekend work
- Rugged, strong and designed for industrial environments


RITE-POWER Photo Gallery
Product Used With
