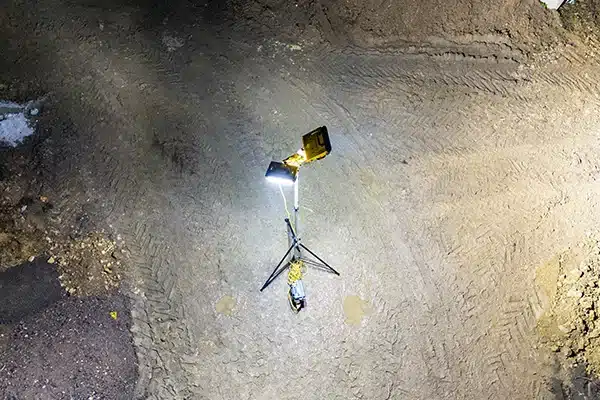

K21 Gantry Light
The K21 is a rugged high-power LED flood head for high lighting demands over wide area applications.
WHY IS THE K21 SO POPULAR?
Rapid, safe, Single person deployment up to 4.7M
Lightweight, portable, easy to carry & transport
Multiple accessories & tripod options for maximum flexibility
Advanced beam control optics for optimised light spread & minimal light pollution
Mains or Generator powered including the RITE-POWER Battery Generators. 110V or 240V AC options available
Compact to fit multiple units in the back of a car or van to transport and easy to store
WHAT MAKES THE k21 SO UNIQUE?
Twin element hybrid optics creating high levels of uniformity and no dark spots

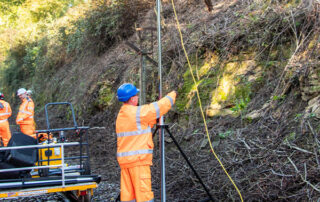

Fast, simple, safe deployment system for 1 person set up
High 32,000 lumens from only 220W low power requirement
Configurable to single or twin mounting
Suitable for use with many tripod systems
Able to be “daisy chained” to enable multiple units to be powered from one power source
WHAT IS UNIQUE ABOUT THE K21 GANTRY LIGHT?
Twin element hybrid optics creating high levels of uniformity and no dark spots
Fast, simple, safe deployment system for 1 person set up
High 32,000 lumens from only 220W low power requirement
Configurable to single or twin mounting
Suitable for use with many tripod systems
Able to be “daisy chained” to enable multiple units to be powered from one power source

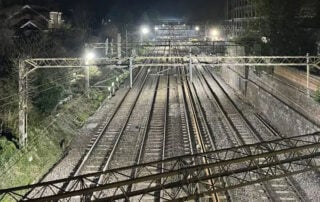

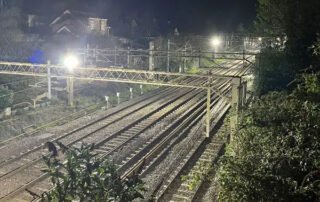

Typical Installation

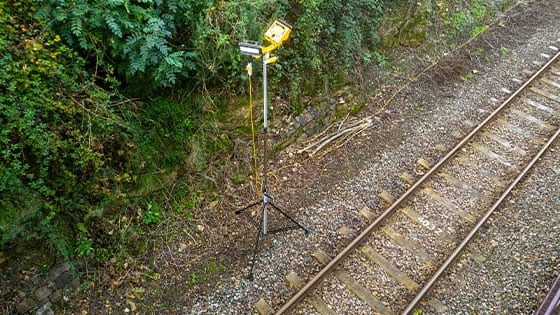

K21 fitted to gantry or tripod, dual lights
84 lux average. 50 lux minimum. 50m spacing
K21 fitted to gantry, single light
40 lux average. 25 lux minimum. 50m spacing

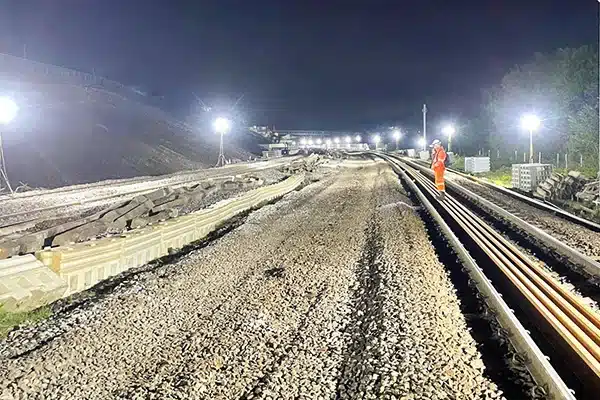

K21 fitted to gantry or tripod, staggered down track dual lights
85 lux average. 14 lux minimum. 100m spacing alternate
TECHNICAL SPECIFICATIONS OF THE K21 GANTRY LIGHT
| Light Source | Twin Beam Control LED module |
|---|---|
| Power | 220W |
| Light Output | 32,000 lumens (high) @ 6400K |
| Beam Angle | Hybrid Beam Control and 25 Degree projection |
| Longevity | 50,000 hours |
| Input | 90-305V AC 50/60Hz >0.98 power factor (multiple plug options available) |
| Operating Temperature Range | -20ºC to +40ºC |
| Dimensions (W x H x D) | 320mm x 220mm x 310mm (including tripod mount) |
| Weight | 5.3Kg |
| Construction | Powder coated aluminium / steel |
| Cable | 5-10m heavy duty cable (optional) Daisy chain in / out (optional) |
| IP Class | IP65 (Electrical connector dependant) |
4.2m Heavy Duty Tripod
(inc. male stud)
Dimensions:-
Closed: 1850mm (H)
Open: 4200mm max height extended x ø1900mm
Max Footprint: ø1900mm
Weight: 21kg
All Terrain 4m Tripod
(inc. male stud) A robust, light weight tripod designed for outdoor use with the K20 Power Head light that enables the user to raise the K20 Power Head Light to 4m. Dimensions: Closed: 1320mm x ø180mm | Open: 4000mm x ø1500mm, Weight: 8.7kg, Product Code: K20-T4M
Different Tripod Mountings Available
K20 / K21 Magnetic Bracket
Attach the K20 Power Head light to sturdy steel objects. When mounted the bracket design allows the K20 Power Head light to be adjusted through all angles, ensuring the best illumination for the application. Includes male stud.
Product Code: K20-MB
K20 / K21 Heavy Duty Quad Magnetic Bracket
Product Code: K20-MBQ

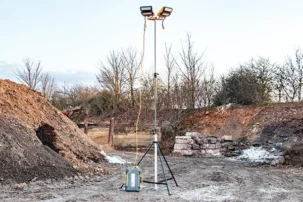

K20 / K21 Twin Head Adaptor
Product Code: K20-TAB
K20 / K21 Scaffold Bracket
The magnetic bracket accessory allows the K20 LED power head or K21 Gantry Light to be mounted to any steel surface. Product Code: K20-SB
- Can the K21 run from a 110v or 240v supply?
The K21 product has an input voltage range of 90-305 VAC so will work with 110V or 240V circuits. Please specify the type of connector you need when ordering. - How bright is the K21?
The lumen output of the K21 is a fantastic 32,000 lumens in brightness at 100%. - What is the IP rating of the K21?
The K21 is rated IP65 so fully waterproof for normal outdoor use. - How long is the cable?
The cable length can be between 5 and 10 metres and can be adjusted to meet a specific requirement. Please let us know the length required when ordering. - Can the K21 be daisy chained?
The K21 can be fitted with input and output connectors allowing the units to be daisy chained together. This enables use of multiple units from one power source increasing the area that can be illuminated and reducing the quantity of equipment on site.
