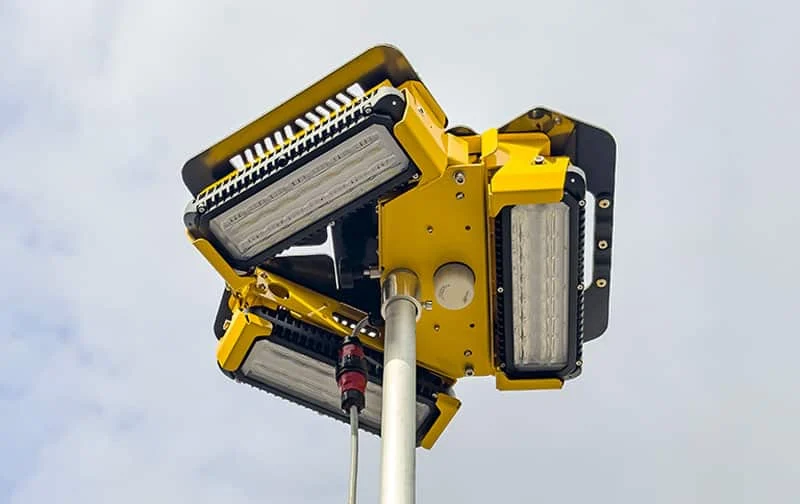

A High-Performance, Multi-Functional 360º LED Lighting System, Built For Demanding Environments
Up to 92,000 Equivalent Lumens Light Output
KEY FEATURES OF THE K41 PORTABLE AREA FLOOD LIGHTING SYSTEM?
Large area light coverage from a max 380W power requirement
Beam Control precision light direction to focus all the light where it is needed with minimised light pollution

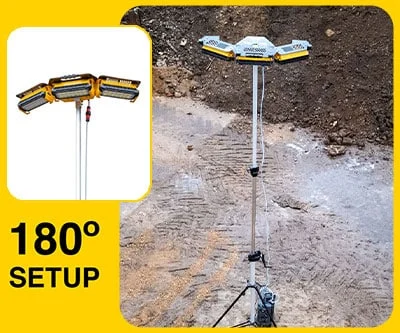

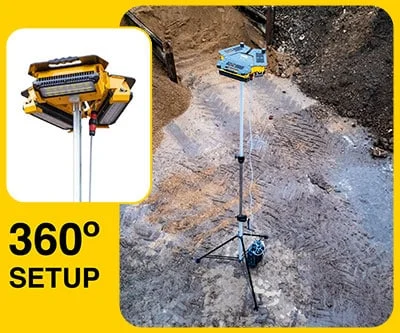

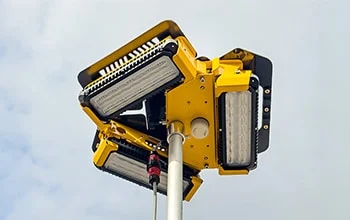

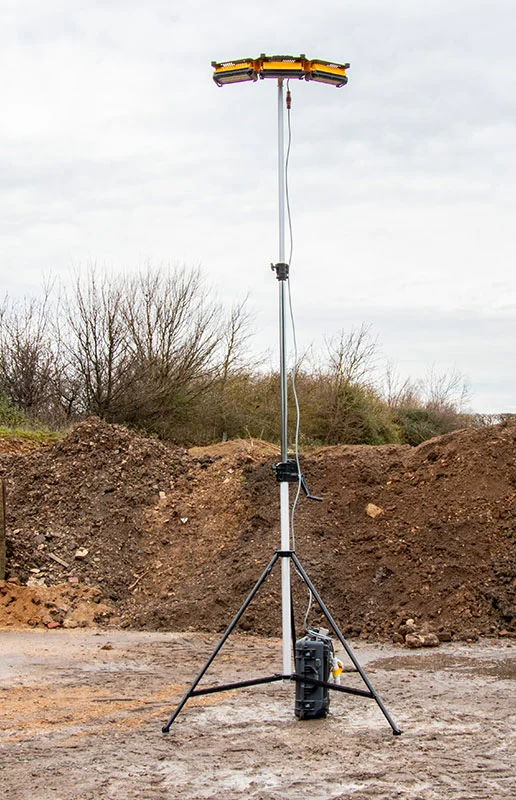

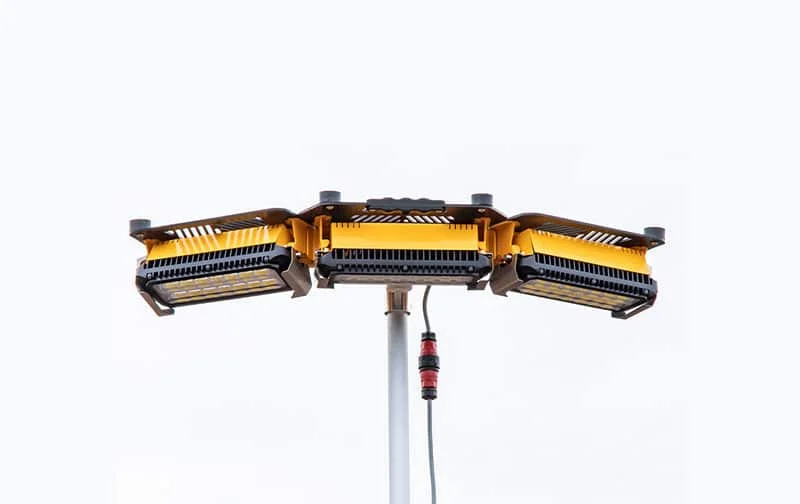

180 – 360 degree flexible set up for maximum flexibility and applications
Automated light output control for maximised power efficiencies and energy savings

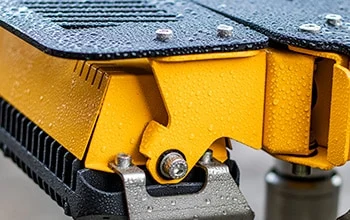

Robustly manufactured for harsh working conditions. Corrosion resistant aluminium and stainless-steel construction
Silent, emission-free, zero carbon lighting solution when powered by a RITE-POWER battery powered generator
RUGGED CONSTRUCTION FOR MAXIMUM APPLICATIONS

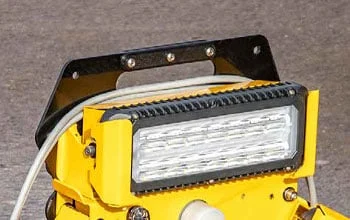

Polyethylene impact resistance handles
Robust aluminium case

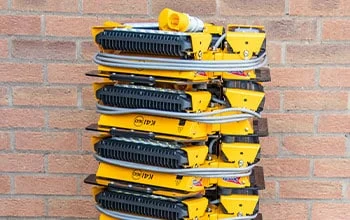

Stackable and compact for transport and storage

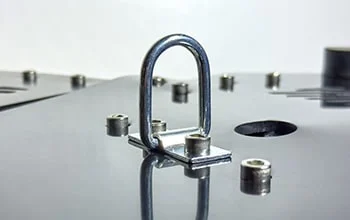

Folding suspension eye for 360° deployment
Robust aluminium case
K41 Area Lighting System Models
There are 3 standard K41 models to meet every application and budget. Additional optional features are available for all models outlined below with other bespoke specifications also available.
K41-S1
180-360° configurable light system. Simple on / off control of the light with the light level able to be set to meet requirements via an integrated digital dimmer system from 0 -100% brightness. 5m down lead fitted. 110V or 240V input available.
Standard lead
Dimmer on head
K41-S2
As S1 model but with the additional functionality of a light head mounted Dusk To Dawn (D2D) switch and a link box at the power input to enable multiple lights to be linked or daisy chained together to run from one power source.
+ Linkable pendant
+ Dusk to Dawn sensor
K41-S3
The S3 model has all the functionality of the S1 & S2 models plus all light function controls within the ground level pendant. It also includes a microwave occupancy sensor enabling the light to automatically turn on at a pre-set level when motion is detected.
+ Ground level control box
+ Microwave occupancy sensor
| Features | K41-S1 | K41-S2 | K41-S3 | |
|---|---|---|---|---|
 |
0-100% Dimmer | ✓ | ✓ | ✓ |
| Control Method | In Lighthead | In Lighthead | Ground Level Pendant | |
 |
Linkable functionality to other lights or equipment | N/A | ✓ | ✓ |
| Link position | N/A | Ground Level | Ground Level | |
 |
Dusk-to-Dawn sensor | N/A | ✓ | ✓ |
| Control position | N/A | In Lighthead | Ground Level Pendant | |
 |
Occupancy sensing | ✗ | ✗ | ✓ |
| Control position | Ground Level Pendant | |||
|
Detachable inline pendant connector system | ✗ | ✗ | optional |
 |
110V or 240V input | ✓ | ✓ | ✓ |
 |
5M cable with 110V or 240V plug | ✓ | ✓ | ✓ |
 |
Diffuser glare reduction screen | optional | optional | optional |
 |
Folding suspension eye for 360° deploy | optional | optional | optional |
 |
Pendant lockout box | N/A | N/A | optional |
 |
Find me indication light | optional | optional | optional |

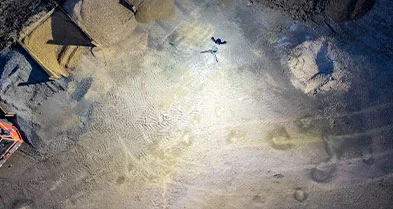

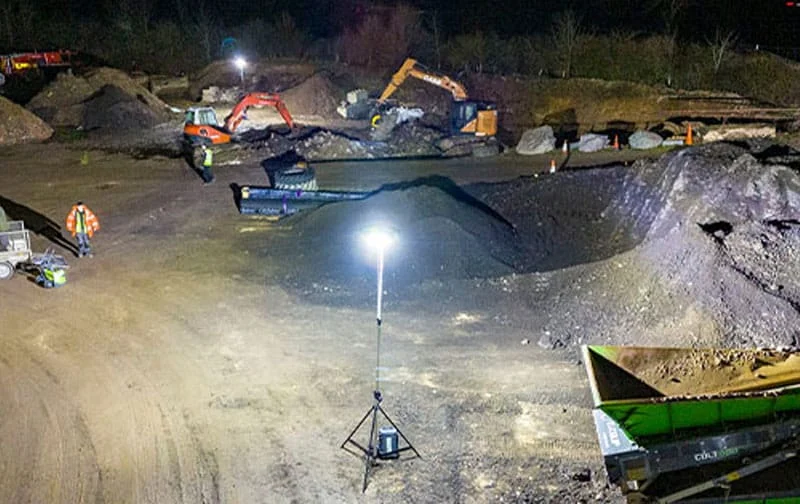

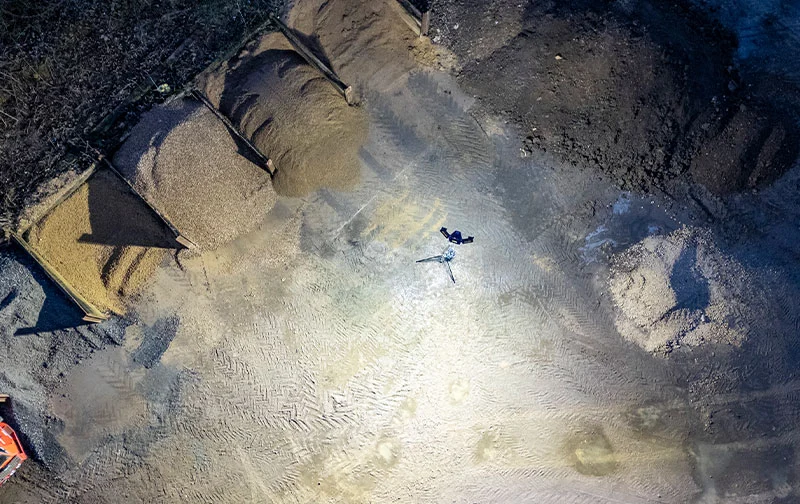

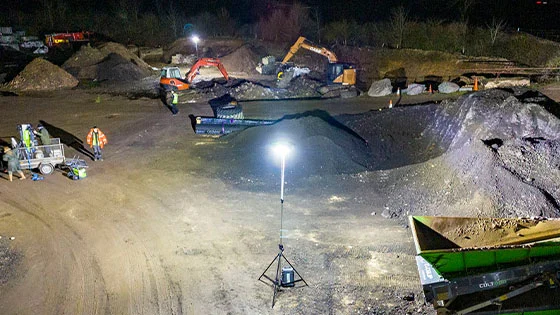

FLEXIBLE LIGHTING FOR ALL APPLICATIONS
TECHNICAL SPECIFICATIONS OF THE K41 AREA FLOODLIGHT

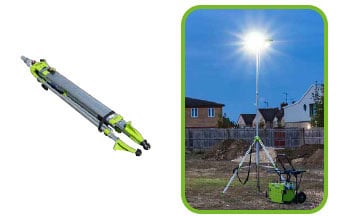

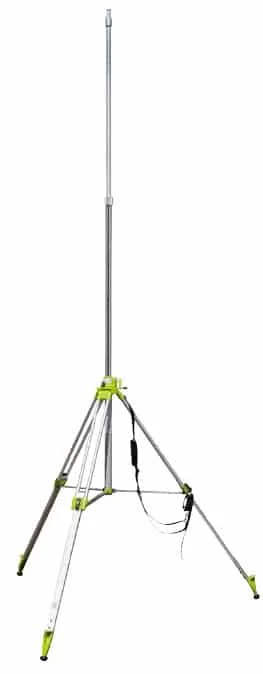

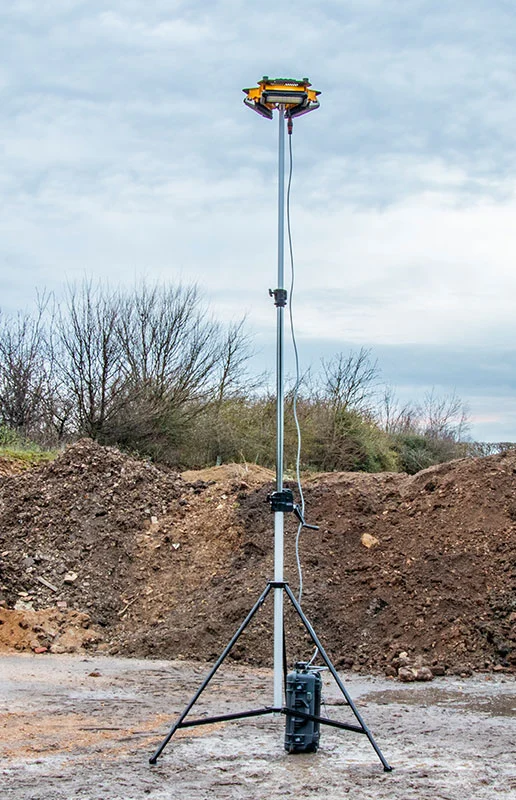

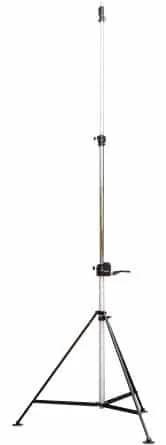

4.0M LIGHTWEIGHT TRIPOD
- Lightweight aluminum construction
- 2 section tripod
- Fitted with DIN connector
- Combined winch and manual raise mast
- Air cushioned mast with controlled descent
- Independently adjustable legs
- Adjustable feet – rubber pad or metal spike
- Optional ballast bags for increased stability
| TRIPOD | LIGHTWEIGHT |
|---|---|
| PRODUCT CODE | SLK45-LITE/TRP/4M |
| CLOSED LENGTH | 1.32m |
| MAXIMUM HEIGHT | 4.0m |
| EXTENDED LEG DIAMETER | 2.1m |
| LOAD CAPACITY | 14Kg |
| TRIPOD WEIGHT | 9Kg |

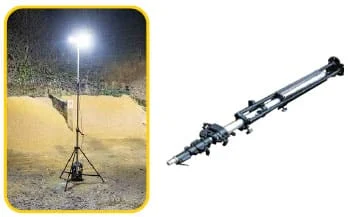

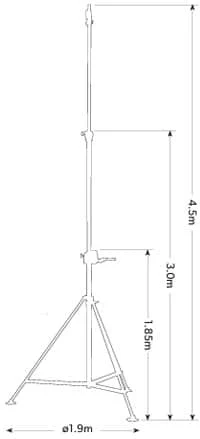

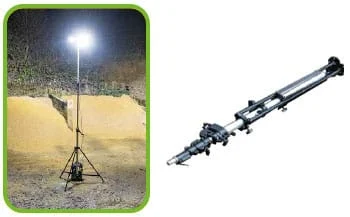

4.5M HEAVY DUTY TRIPOD
- Robust steel construction
- 3 section tripod
- Fitted with DIN connector
- Heavy duty winch
- Anti-drop safety interlock
- 1 x adjustable leg for uneven surfaces
- Leg pad diameter 12cm
- Peggable leg pads for increased stability
| TRIPOD | HEAVY DUTY |
|---|---|
| PRODUCT CODE | K-LITE/TRP/4.5M |
| CLOSED LENGTH | 2.0m |
| MAXIMUM HEIGHT | 4.5m |
| EXTENDED LEG DIAMETER | 1.9m |
| LOAD CAPACITY | 30Kg |
| TRIPOD WEIGHT | 21Kg |
This rugged steel tripod is designed for rough terrain applications. Fitted with safety interlock and hand winch mechanism. The tripod will raise up to 30Kg of head load. With the correct lighting system fitted the tripod can provide the platform for a high light output normally only achievable with a towed system. Load spreading feet are attached to steel legs to allow use of ballast bags or pegging.
| DIMENSIONS | WIDTH | HEIGHT | LENGTH |
| 360º Configuration | 561mm | 161mm | 535mm |
| 180º Configuration | 356mm | 161mm | 980mm |
| WEIGHT | 13.4Kg | ||
| POWER SUPPLY | 100-240V AC input | ||
| POWER CONSUMPTION | 380W | ||
| FREQUENCY | 50/60Hz | ||
| LUMENS | 92,000 equivalent lumens* | ||
| COLOUR TEMP | 6500K | ||
| CRI | >70 | ||
| AVERAGE LIFE | 50,000 hours | ||
| TEMP RANGE | -20ºC to +50ºC | ||
*when comparing light output to other symmetrical lensed beam pattern products
| STOCK CODE | DESCRIPTION |
| K41-S1A | K41-S1A 110V fitted with IP44 industrial site plug** |
| K41-S1B | K41-S1B 240V fitted with IP44 industrial site plug** |
| K41-S2A | K41-S2A 110V fitted with IP44 industrial site plug** |
| K41-S2B | K41-S2B 240V fitted with IP44 industrial site plug** |
| K41-S3A | K41-S3A 110V fitted with IP44 industrial site plug** |
| K41-S3B | K41-S3B 240V fitted with IP44 industrial site plug** |
**wide range of country specific plugs available for non UK users

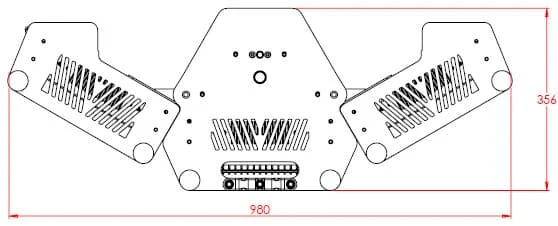

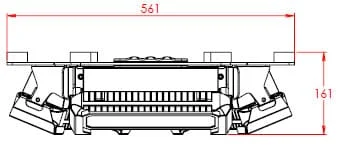

TECHNICAL DRAWING
TOP VIEW
SIDE VIEW
K41-FIL
Find me Indication Light
K41-FSE
Folding Suspension Eyelet
K41-DS
Optional slide in diffuser ensures unwanted
direct light is softened as required
K41-DIP
Detachable Inline Pendent Connector System
K41-PLB
Pendant Lockout Box
Tamper proof lock out box
K41-S/Bag
Padded Carry Bag
K41-S/Carrycase
Hard Carry Case
