PROLINK BEAM CONTROL is an ultra efficient LED linkable track light compatible with generators and batteries.
Low 15W power consumption - able to be battery powered
Bespoke optics minimises light pollution
Small and lightweight
Full even coverage between lights
Rugged and maintenance free
Compatible with existing 110V generator lighting systems
KEY FEATURES OF THE PROLINK BEAM CONTROL
Battery pack option = Silent operation, no fumes, no fuel, no maintenance
Minimal light spill/pollution - Even light uniformity. No dark spots between lights
20 times smaller than fluorescent product - avoids weight limit issues
Rugged and maintenance free - Fully compatible with existing lighting system & deployment methods
Lower carbon footprint in use and supply chain
Kit options available with a range of battery powered portable generators
KEY FEATURES OF THE PROLINK BEAM CONTROL
Battery pack option = Silent operation, no fumes, no fuel, no maintenance
Minimal light spill/pollution - Even light uniformity. No dark spots between lights
20 times smaller than fluorescent product - avoids weight limit issues
Rugged and maintenance free - Fully compatible with existing lighting system & deployment methods
Lower carbon footprint in use and supply chain
Kit options available with a range of battery powered portable generators
Day Kit Contents
- 10x PROLINK Beam Control lights
- 10x Aluminum 3m masts

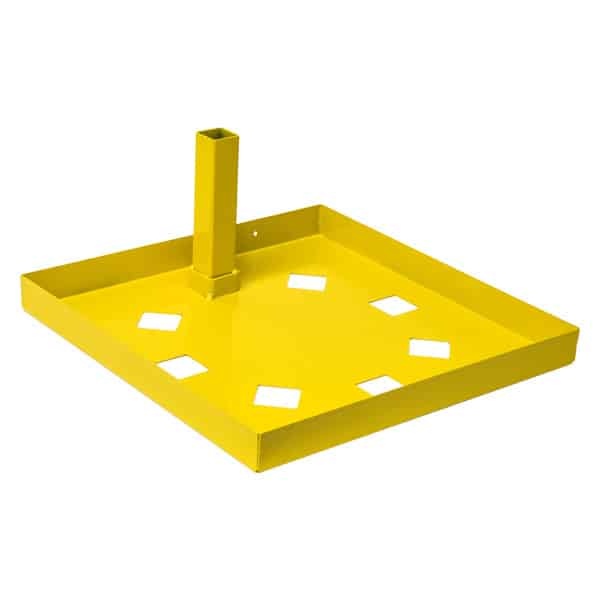

- 10x Ballast bases
- 10x Daisychain cables
- 1x RITE-POWER Rechargeable battery powered generator complete with charger
Effect of Controlling the Light Levels and Beam Patterns
PROLINK Beam Control
Competitor LED Product
Based on a 100m x 4m width track with 3m masts spaced 10m apart

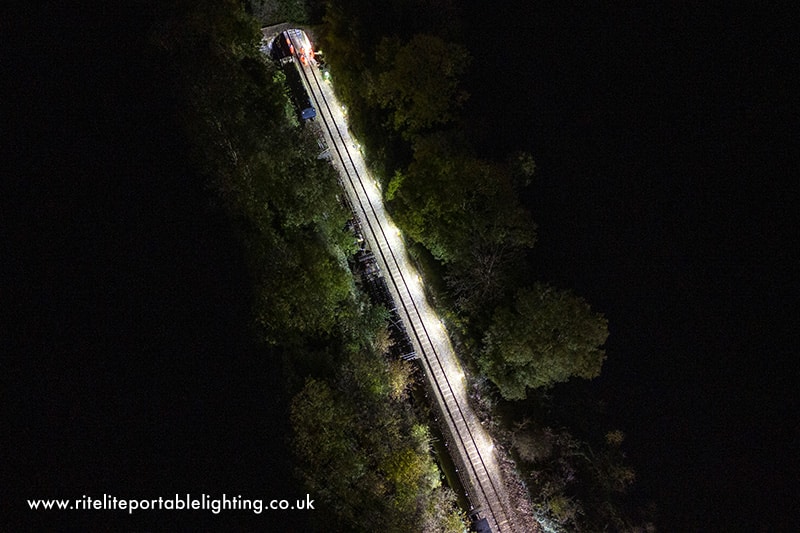

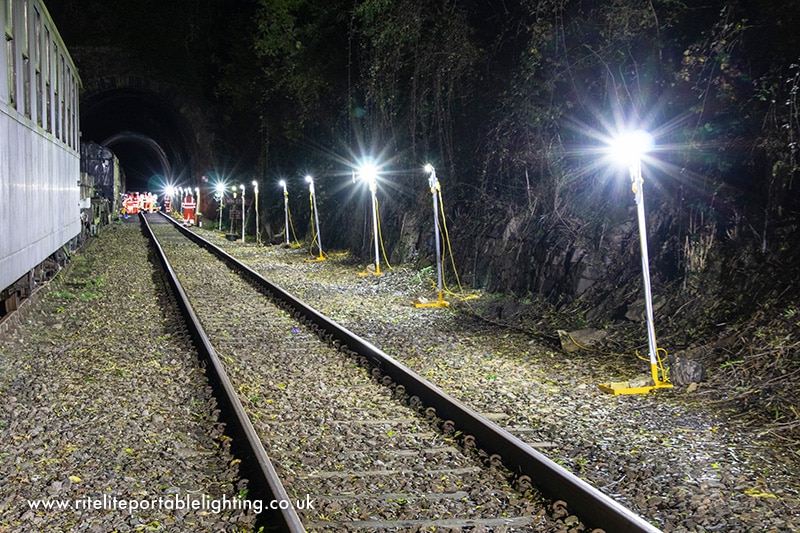

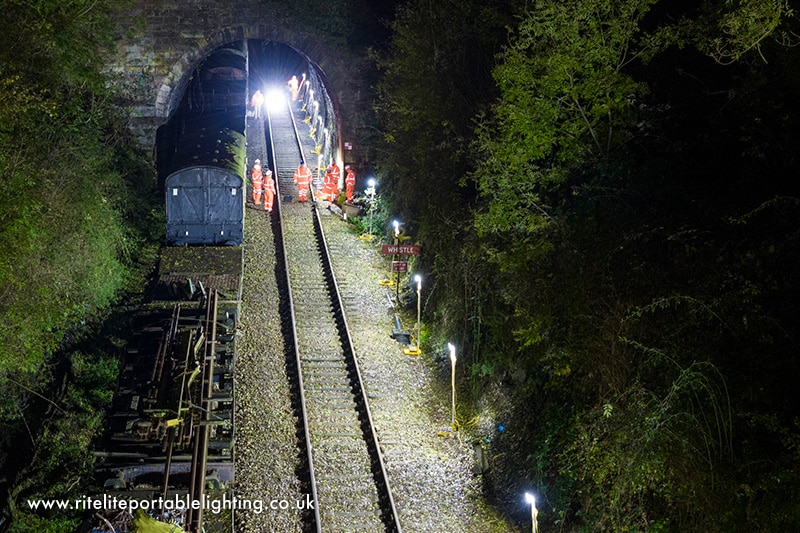

Typical Installation
The PROLINK Beam Control Compared to a Fluorescent Type
| Width | Height | Length | Weight | Lux Average | Lux Min | |
|---|---|---|---|---|---|---|
| PROLINK Beam Control | 120mm | 55mm | 190mm | 1.5kg | 34 | 21 |
| Fluorescent Type | 280mm | 140mm | 610mm | 3.2kg | 19 | 79 |
| PROLINK Beam Control Is | 20 times smaller by volume | half the weight | 80% better light average | 265% increase in min light level | ||
110V 14m Extension Lead
SE/110EL142
Aluminium Extending Mast
LLM3M
3M Tripod
PLL-TRIPOD-3M-BLK
Scaffold Clamp
LLSC
Rugged Magnetic Mount Fence Mountable Bracket
PLL30LB-SHA-MAG
Rugged Magnetic Mount Fence Mountable Bracket – Twin
PLL30LB-DHA-MAG
Twin Light Head Adapter C
PLL30LB-DHA
- Is there a limit on how many units I can connect together?
The limit of how many lights can be connected together will depend on the power source used. Our experienced sales team will be able to advise for your application. Please contact us to discuss. - How many units can I run on a battery generator?
Multiple units can be linked together to run off one battery generator or other power source. The quantity that can be powered together will be depend on the size of the power source. Please contact our sales team to discuss your application and we will be able to quote you for the right equipment. - Is there an emergency backup option in case the power supply is interupted?
Yes we also offer a battery powered linkable PROLINK product which can be used as a safety back up emergency light if power is lost. They can be connected between a few standard PROLINK units to provide enough light to safely see along the track or perimeter. Find out more. - Can I buy 14m extention leads seperately?
We sell extension cables in both 110V and 230V which are sold separately. Please click here for all accessories available. - Can I mount the Pro-LINK on the wall instead of the 3m stands?
A range of mounting brackets are available for the Pro-Link. Please click here for all accessories available. - What does Beam Control mean?
Beam control refers to Ritelite’s unique lighting design ensuring that all the light that our products produce is directed towards the required playing or work surface rather than being lost into the sky or surrounding area in the most efficient way possible. To understand more about this please click here.
