22,000 Equivalent
Lumens
SPORTS-LITE TRAINING KIT FOR SCHOOLS & UNIVERSITIES
Ritelite’s SPORTS–LITE training lights provide educational settings with an efficient and cost-effective lighting solution for winter training. With silent operation, no trailing cables, and battery-powered functionality, these lights can be set up effortlessly on any pitch or court, enhancing training flexibility for any sport.
SPORTS-LITE TRAINING KIT OPTIONS
SPORTS-LITE training kits are available in multiples of 2. Common kit sizes are shown below with recommended Sports area size coverage.
4 x SPORTS–LITE
Training Kits
8 x SPORTS–LITE
Training Kits
10 x SPORTS–LITE
Training Kits
16 x SPORTS–LITE
Training Kits
Recommended kit sizes for different sized training areas
5v5 pitch
4x SPORTS-LITES
Half 11v11 pitch
8x SPORTS-LITES
9v9 pitch
10x SPORTS-LITES
Full 11v11 pitch
16x SPORTS-LITES
30m x 45m drill training area
4x SPORTS-LITES
Half pitch area
8x SPORTS-LITES
70m x 50m training area
10x SPORTS-LITES
Full pitch area
16x SPORTS-LITES
Single court
4x SPORTS-LITES
Twin court
8x SPORTS-LITES
Triple court
10x SPORTS-LITES
2x Twin courts
16x SPORTS-LITES
Half a twin court
4x SPORTS-LITES
Twin court
8x SPORTS-LITES
Triple court
10x SPORTS-LITES
2x Twin courts
16x SPORTS-LITES
Multi use games areas vary in size. Please feel free to call out experienced sales team for recommendations for your MUGA area.
Setting up the SPORTS-LITE

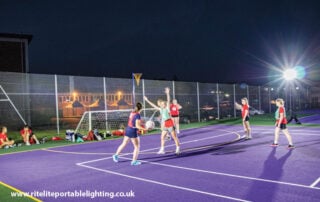

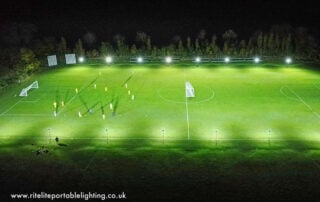

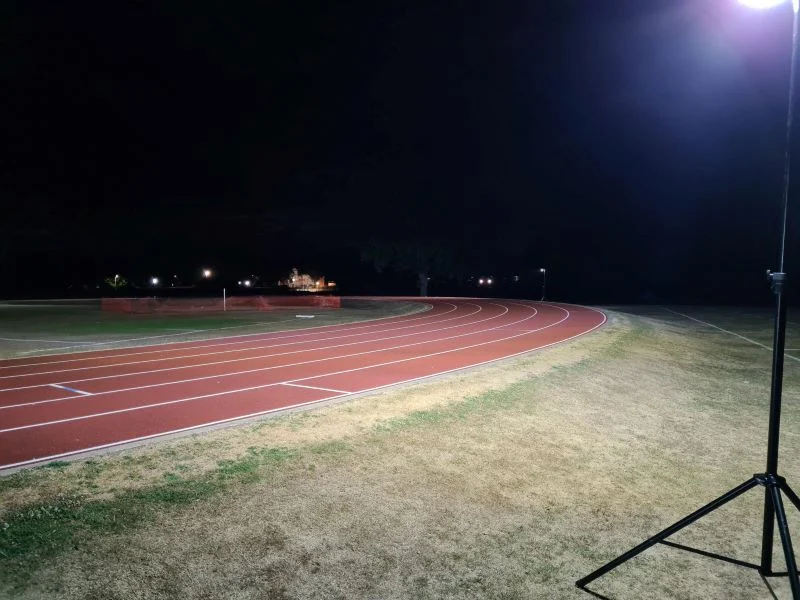

WHERE SPORTS-LITE’S ARE ALREADY BEING USED FOR TRAINING
The SPORTS–LITE Training Kits are the ideal portable floodlights for schools, colleges, and universities, providing a versatile, high-performance lighting solution for all sports training sessions. Ultra-bright, lightweight, and easy to use, these mobile floodlights are transforming sports facilities by extending training hours, increasing participation, and reducing costs for educational settings.
Designed to focus all light precisely onto the playing surface, SPORTS–LITE floodlights ensure even, high-quality illumination while minimising light spill, making them ideal for schools in residential areas. Each unit sets up in under a minute, with no trailing cables for maximum safety. A single charge provides up to 4 hours 20 minutes of operation, ensuring reliable performance throughout training sessions.
The SPORTS–LITE Training Kits offer a cost-effective and flexible lighting solution for indpendent schools, academies, and higher education institutions across the UK. Fully portable and highly mobile, these IP65-rated waterproof floodlights can be used on any training surface and easily moved between locations or training areas. Built-in safety features ensure risk-free operation, making SPORTS–LITE the trusted choice for year-round sports training in all conditions.
TECHNICAL SPECIFICATIONS OF THE SPORTS-LITE TRAINING KIT
- 3M anti-trap, soft descent aluminium tripod
- Daylight White Light sports focused lensing for maximum coverage with low light spill
- Waterproof, IP65 rated light heads
- Quick and simple set up by one person in under 1 minute per light set
- 22,000 equivalent lumens light output when comparing light output to other symmetrical lensed beam pattern products
SPORTS-LITE WEIGHTS / DIMENSIONS | |
TOTAL SYSTEM WEIGHT (standard battery) | <10.5Kg (Light head, battery and tripod) |
TOTAL SYSTEM WEIGHT (high capacity battery) | <11.5Kg (Light head, battery and tripod) |
LIGHT HEAD | |
WEIGHT (excluding battery) | 2.88Kg |
DIMENSIONS (W x H x D) | 300mm x 250mm x 100mm |
TRIPOD | |
WEIGHT | 6.25Kg |
CLOSED DIMENSIONS | 1540mm x ø140mm |
OPEN DIMENSIONS | 3000mm x ø1950mm |
Charging Options
The Sports-Lite training kits are a fantastic energy friendly lighting solution with very little energy required to recharge the Sports-Lite’s lithium battery packs.
- Single chargers supplied with units as standard
- Optional high powered chargers for faster charging
- 4, 5 or 6-way multi-bank charger to charge multiple units from one plug socket
The units can be charged in as little as 4.5 hours (charging a standard battery with the high power charger). They can be charged after the training session and be available for any unexpected training evenings you may have.
BATTERY TYPE | PRODUCT CODE | DURATION | CHARGE TIMES | |
STANDARD CHARGER | FAST CHARGER | |||
Power Pack Battery | LSPL/BATT200 | 2h 20m | 6 hours* | 4.5 hours |
Power Pack+ Battery | LSPL/BATT370 | 4h 20m | 11.5 hours | 8.5 hours* |

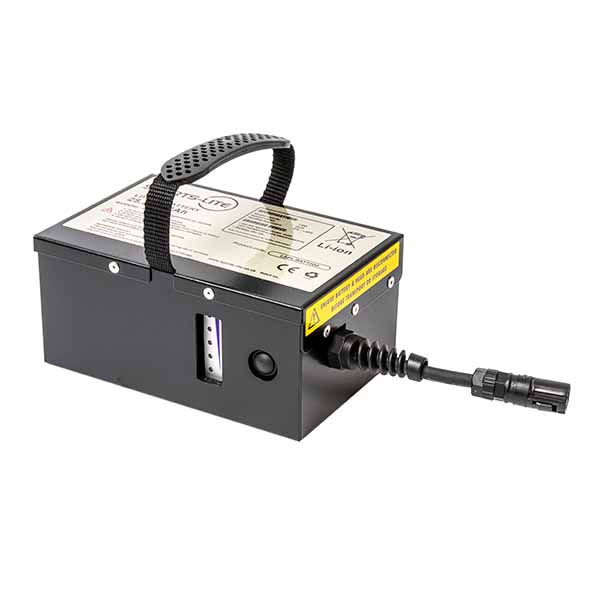

POWER PACK BATTERY (2h 20m)
A rechargeable lithium battery pack with a max 2h 20m duration, complete with in-built battery level indicator
LSPL/BATT200
POWER PACK+ BATTERY (4h 20m)
A rechargeable lithium battery pack with a max 4h 20m duration, complete with in-built battery level indicator
LSPL/BATT370
STANDARD CHARGER
Standard battery charger for charging the Sports-Lite battery packs
LSPL/CHARGER150
FAST CHARGER
Fast battery charger for charging the Sports-Lite battery packs at a faster rate
LSPL/CHARGER200
4 MULTI-WAY BATTERY CHARGERS
Sports-Lite 4-way battery charger
LSPL/4WAYCHARGER150
4 MULTI-WAY FAST CHARGERS
Sports-Lite 4-way fast charger
LSPL/4WAYCHARGER200
5 MULTI-WAY BATTERY CHARGERS
Sports-Lite 5-way battery charger
LSPL/5WAYCHARGER
5 MULTI-WAY FAST CHARGERS
Sports-Lite 5-way fast charger
LSPL/5WAYCHARGER200
6 MULTI-WAY BATTERY CHARGERS
Sports-Lite 6-way battery charger
LSPL/6WAYCHARGER150
6 MULTI-WAY FAST CHARGERS
Sports-Lite 6-way fast charger
LSPL/6WAYCHARGER200

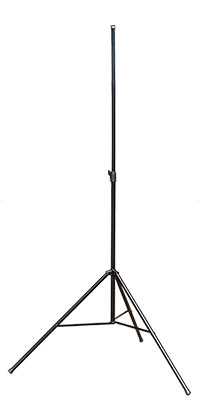

TRIPOD
A light weight 3 metre tripod for use with the Sports-Lite LED light head
LSPL/TRIPOD
STABILITY KIT
Add to the centre of the tripod to increase stability in strong wind
LSPL/STABILITYKIT
FENCE ADAPTOR
A 3m height adjustable mast which can be permanently fixed to any fence. Protective padding also available
LSPL/FENCEADAPTOR
LIGHT HEAD BAG
Store up to 2 Sports-Lite heads, batteries and chargers safely in this padded weatherproof storage bag
LSPL/HEADBAG
TRIPOD BAG
Store up to 2 Sports-Lite tripods safely in this padded weatherproof storage bag
LSPL/TRIPODBAG
FENCE KIT PADDING
Padding for the Sports-LITE Fence Adaptor for additional player protection
LSPL/FENCEKITPADDING
