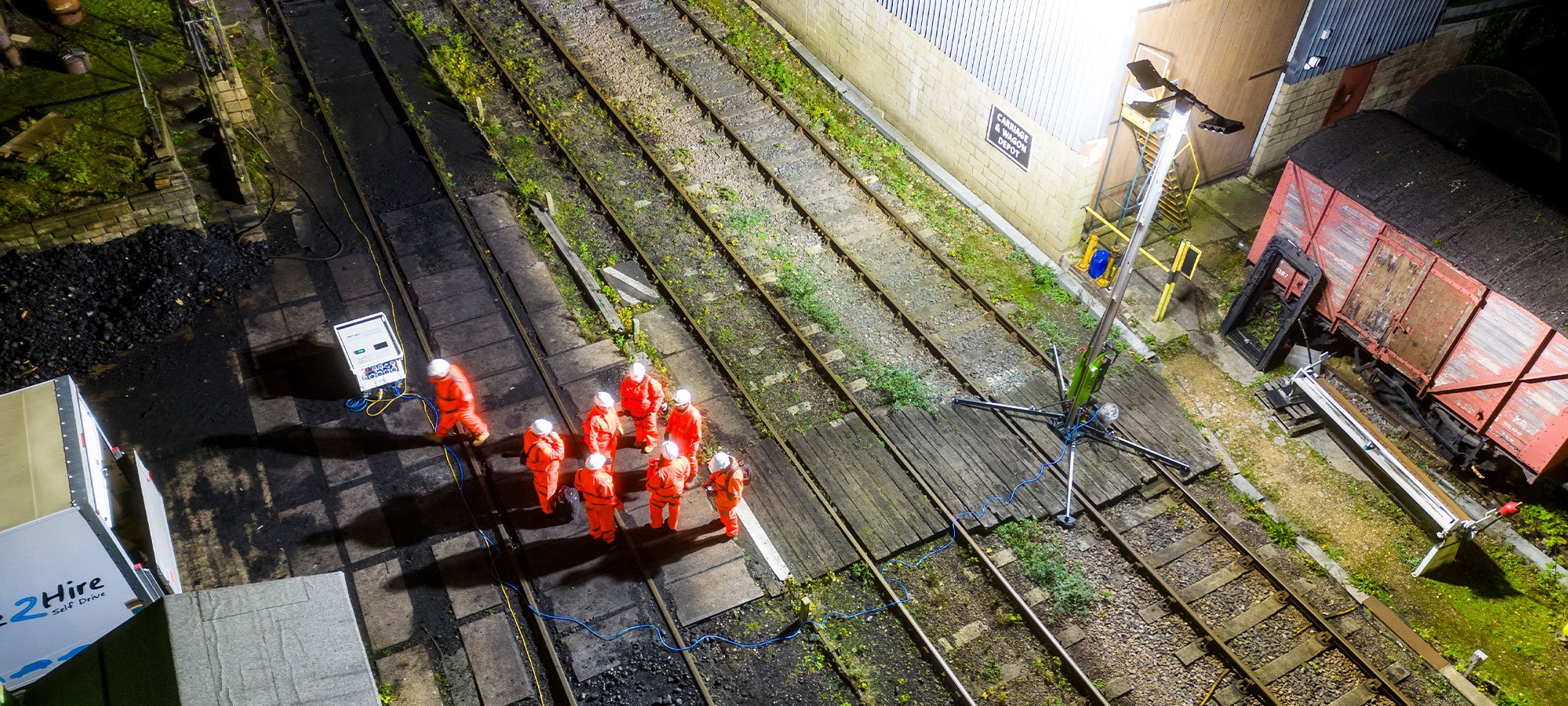

Rail access points require reliable portable site lighting that supports safe entry, exit and material handling during maintenance and repair works. Illumination must provide clear visibility across walkways, steps and track interfaces while remaining efficient and easy to deploy often by hand.
Ritelite’s access point lighting solutions combine area flood lighting, task lighting and link lighting systems to create structured illumination in constrained working areas. Systems are lightweight, modular and designed for straightforward setup within temporary rail environments.
Battery powered operation ensures silent, emission-free performance, reducing on-site disruption while maintaining dependable output throughout the working period.
Designed for Rail Access Points
QUAD POD K65
Key Features & Benefits
High-Performance Mobile Area Lighting Tower – Provides powerful LED illumination across large working areas with efficient power consumption.
Reduced Light Pollution – Beam-controlled optics deliver approximately 70% less light pollution than many conventional lighting towers.
Portable Mobile Tower Design – Compact system that can be easily transported and manoeuvred across rail work sites.
Flexible Area Lighting Control – Adjustable light heads allow 180° to 360° illumination depending on site requirements.
Optional Automatic & Occupancy Sensor Control – Lighting can be configured with dusk-activated microwave sensors or occupancy sensors to provide illumination only when required, reducing energy consumption and extending battery runtime.
Large Area Coverage – Average 20 lux illumination across up to 6,868 m² from 6.5m height, suitable for compounds, access points and working zones.
Multiple Power Options – Operates from diesel generators, mains power or RITE-POWER battery generators for silent, emission-free operation.

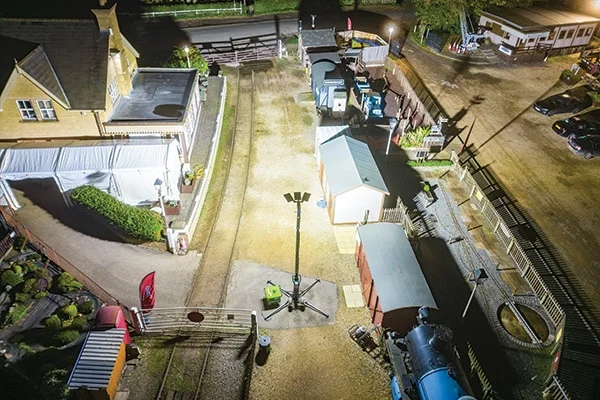

QuadPod K65 Photo Gallery
K45 4.5M MOBILE LIGHTING TOWER
Key Features & Benefits
High-Output Mobile Area Lighting Tower – Provides powerful LED illumination with an average 20 lux coverage across up to 3,553 m².
Compact Tower Design – Engineered for easy transport, storage and deployment on temporary work sites.
Optimised Beam-Control Optics – Designed to minimise light spill and reduce light pollution while maintaining effective working illumination.
Flexible Lighting Direction – Adjustable light heads allow 180° to 360° illumination depending on site requirements.
Rapid One-Person Deployment – Safe, straightforward setup with a telescopic mast extending up to 4.5 m.
Multiple Power Options – Operates from diesel generators, mains power or RITE-POWER battery generators for silent, emission-free operation.

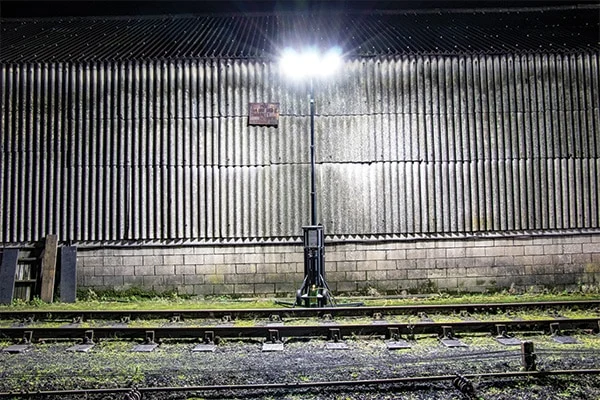

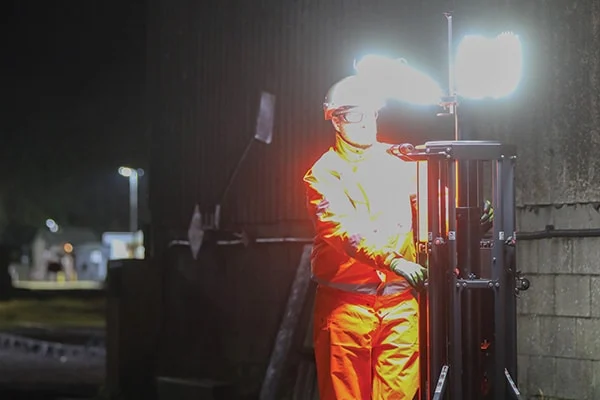

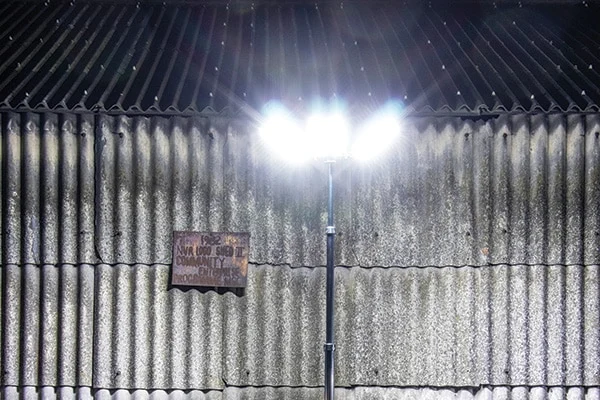

K45 Photo Gallery
K45-LITE
Key Features & Benefits
High Performance LED Area Lighting – Delivers up to 85,000 lumens for powerful illumination across large working areas.
Directional or 360° Lighting Control – Adjustable configuration allows targeted lighting or full area coverage depending on site requirements.
Portable Rail Lighting System – Lightweight design makes the unit practical to transport and deploy along track, access points and temporary work zones.
Rapid Deployment Design – Engineered for fast, safe, straightforward setup in temporary rail maintenance environments.
Adjustable Tripod Height – Compatible with 3.1–4.1 m tripods while maintaining a compact ground footprint.
Industry Standard DIN Mounting – Fitted with DIN spigot connection for use with all standard industry tripods with DIN spigot.
Dimmable LED Control – Output can be adjusted to optimise lighting levels and extend runtime when powered by RITE-POWER battery generators.
Typical Installation
Recommended distance up to 60M apart (20 lux average area @ 100% power)
Power Options for the K45-LITE
1 x RITE-POWER 1750 Battery Generator will power 1 x K45-LITE for 2.5 hours at full power
1 x RITE-POWER 1750×2 Battery Generator will power 1 x K45-LITE for 5 hours at full power or 16 hours @ 30% power
Setup Options
360 Degree Area Lighting
Directional Area Lighting

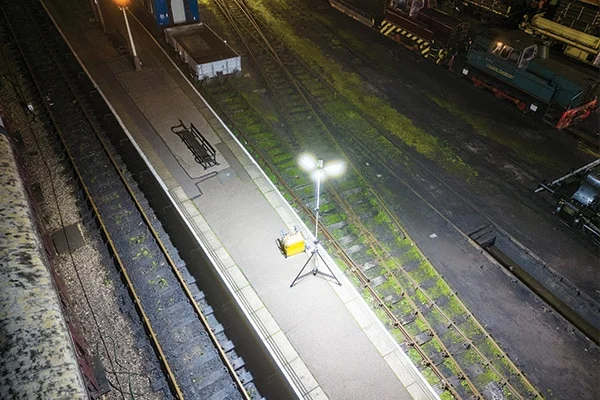

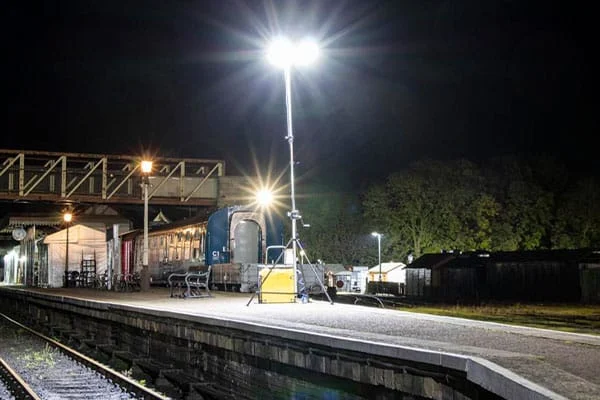

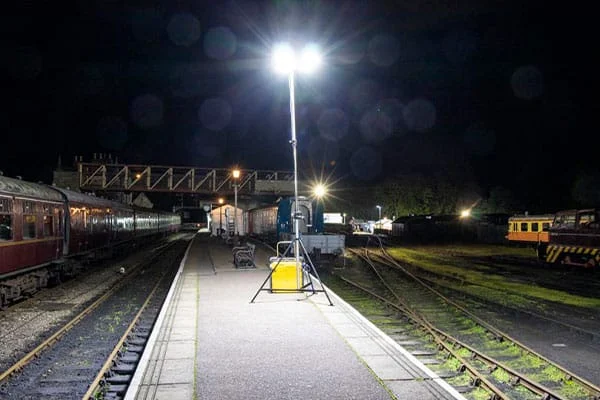

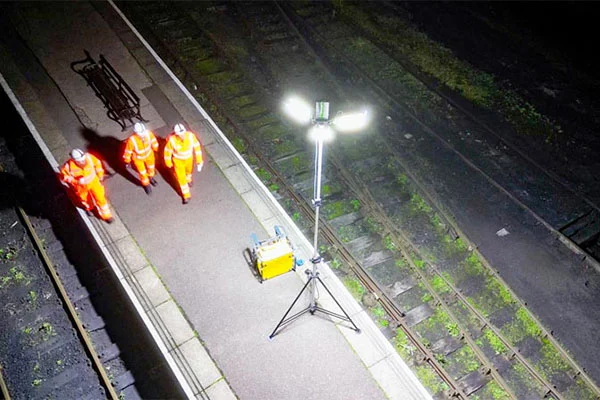

K45-LITE Photo Gallery
Product Used With
PROLINK LINKABLE FLOOD LIGHT
Key Features & Benefits
Linear Linkable Rail Lighting System – Designed to create a continuous line of light along the rail corridor, providing consistent illumination between units.
Ultra-Efficient LED Track Lighting– Low power consumption enables operation from portable generators or RITE-POWER battery powered generators.
Beam-Controlled Optics– Bespoke lensing focuses light precisely onto the working area while minimising light pollution to the surrounding area.
Even Illumination Along the Track– Unique design provides uniform coverage between lights along the track, exceeding typical HSE guidance levels.
Compact and Lightweight Design– Smaller and lighter than many traditional rail lighting systems, helping avoid issues with vehicle weight limits, storage space and transport.
Lower Carbon Operation– Low energy demand reduces operational power requirements and supports lower carbon project delivery.
Rugged, Low-Maintenance Construction– Durable design suited to demanding rail maintenance environments.
Flexible Deployment Options– Compatible with common rail lighting deployment methods including masts, bases and cable systems.
Typical Installation
Average Lux – Approx 34 lux
Power Options for Pro-LINK lighting chains
1 x RITE-POWER 1750 Battery Generator will power 10 x Prolink Linkable Floodlights over 100M for up to 11 hours
1 x RITE-POWER 1750×2 Battery Generator will power 10 x Prolink Linkable Floodlights over 100M for up to 22 hours
1 x RITE-POWER 3850 Battery Generator will power 20 x Prolink Linkable Floodlights over 200M for up to 12 hours

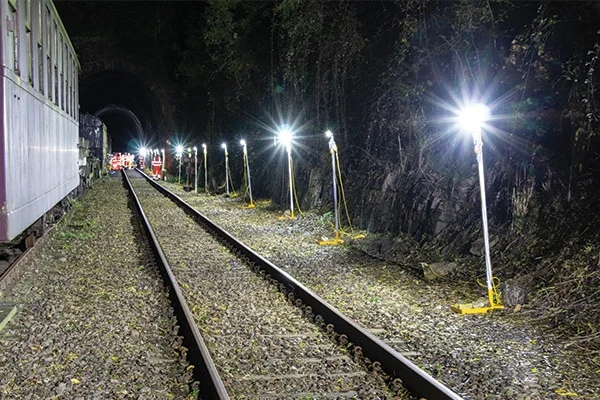

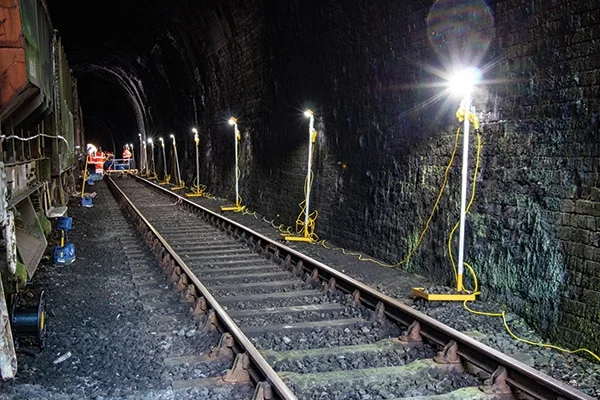

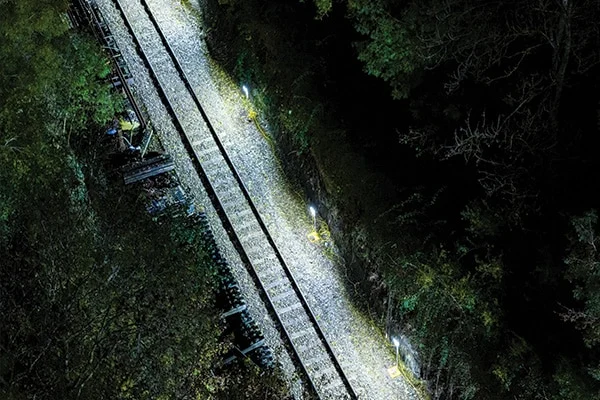

Prolink Photo Gallery
Product Used With
PROLINK SAFETY SHIFT LED LINKABLE TRACK LIGHT
Key Features & Benefits
Battery-Powered Emergency Lighting for PROLINK Rail Lighting Systems
Rechargeable Battery-Powered Linkable Track Light – Compact LED unit designed to integrate within PROLINK linear lighting systems.
Emergency Lighting Backup – Operates alongside a 110V mains-powered PROLINK installation to provide emergency illumination if power is lost.
Seamless Integration with PROLINK– Connect directly within the PROLINK string of lights, maintaining lighting continuity along the track.
Automatic Emergency Operation– Light remains on when mains power fails, helping ensure worker visibility and site safety.
12-Hour Battery Duration– Provides extended emergency lighting from a single charge.

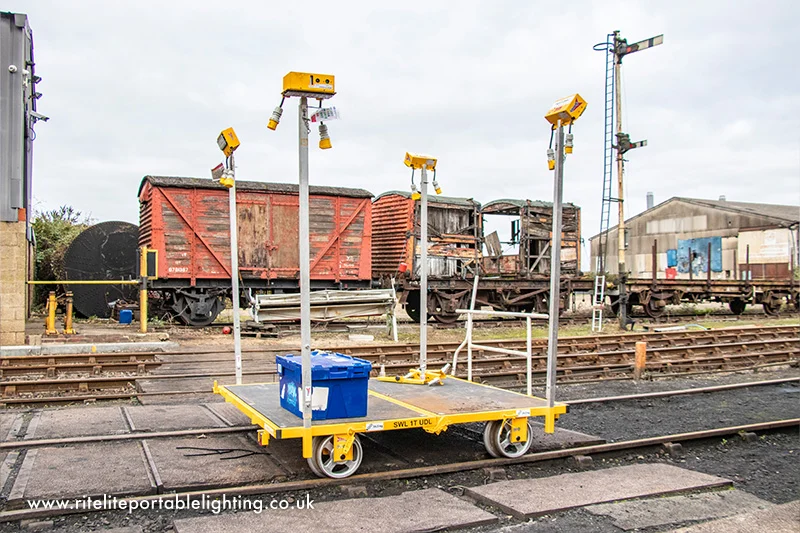

K21
Key Features & Benefits.
Advanced Beam-Control Optics – Twin-element hybrid optics deliver controlled light distribution along the track with minimal light pollution to surrounding area.
High Uniformity Illumination – Provides consistent lighting across the working area without dark spots between lighting units.
Efficient LED Performance – High light output achieved from just 220W of power, supporting energy-efficient rail lighting.
Compact, Lightweight Design – Portable unit designed for straightforward transport, positioning and deployment.
Flexible Mounting Options – Configurable for single or twin-head mounting depending on lighting requirements.
Multiple Deployment Methods – Compatible with magnetic mounting, poles and fence mounting for versatile site positioning.
Typical Installation
K21 fitted to gantry or tripod, dual lights
84 lux average. 50 lux minimum. 50m spacing
K21 fitted to gantry, single light
40 lux average. 25 lux minimum. 50m spacing
K21 fitted to gantry or tripod, staggered down track dual lights
85 lux average. 14 lux minimum. 100m spacing alternate
Power Options for the K21
1 x RITE-POWER 1750×2 Battery generator will power 1 x K21 light for 30 hours
1 x RITE-POWER 1750×2 Battery generator will power 2 x K21 lights for 15 hours
1 x RITE-POWER 3850 Battery generator will power 2 x K21 lights for up to 16 hours
1 x RITE-POWER 7770 Battery generator will power 4 x K21 lights for up to 16 hours

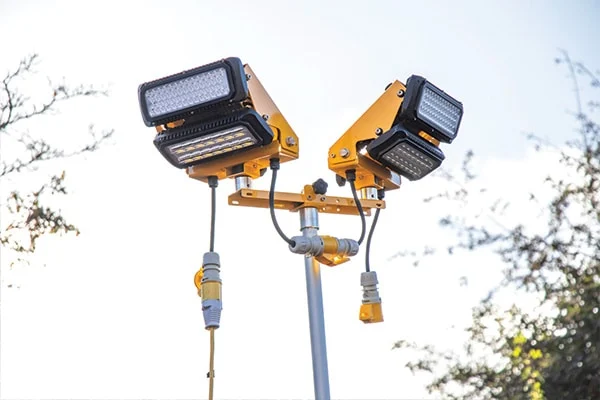

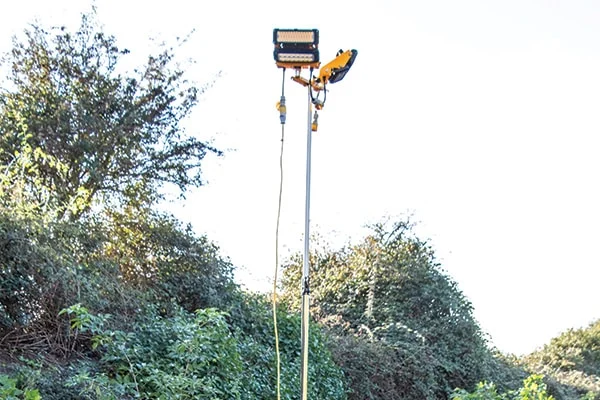

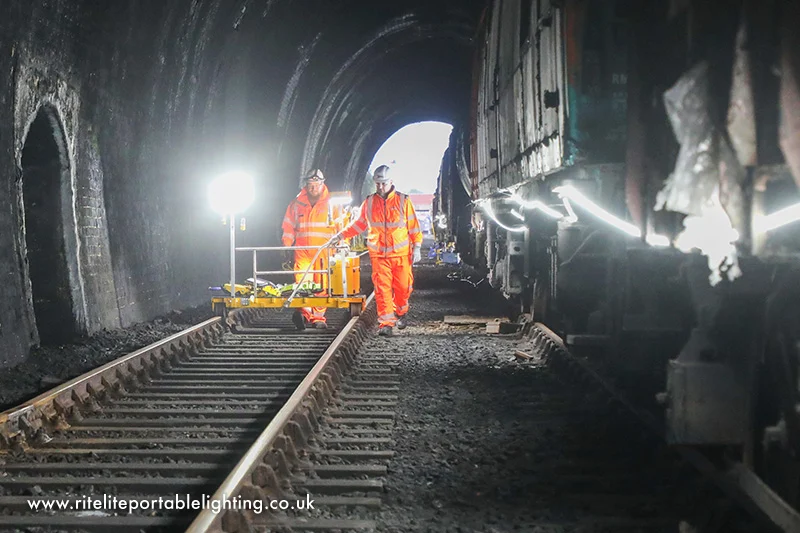

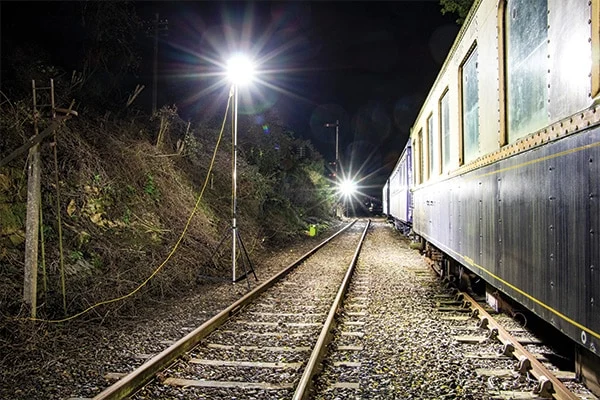

K21 Photo Gallery
Product Used With

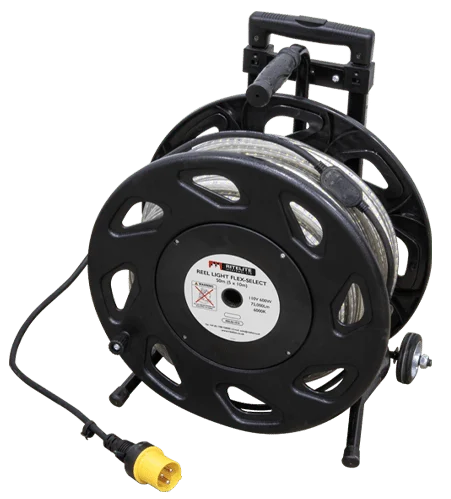

Reel Light Flex-Select
Key Features & Benefits
Rapid Tunnel & Access Lighting – Provides quick, continuous lighting for tunnels, walkways and rail access areas.
Fast, Straightforward Installation – Compact reel design allows lighting to be deployed quickly along temporary working zones.
Integrated Cable Reel System – Portable reel format enables easy transport, storage and controlled cable deployment.
Multiple Length Options – Available in 15m, 25m and 50m versions to suit varying site layouts.
IP65 Rated Construction – Waterproof design suitable for demanding rail maintenance environments.
6400K Daylight Output – Bright white light improves visibility for inspection and task work.

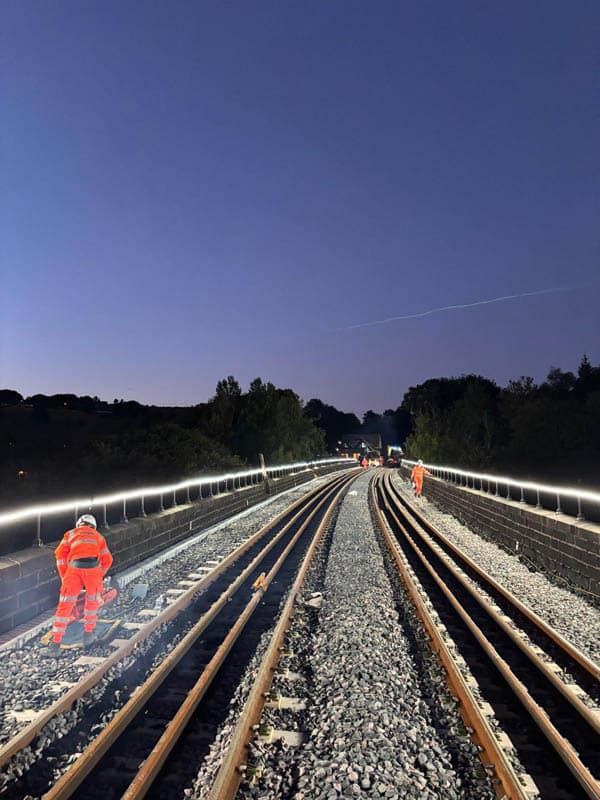

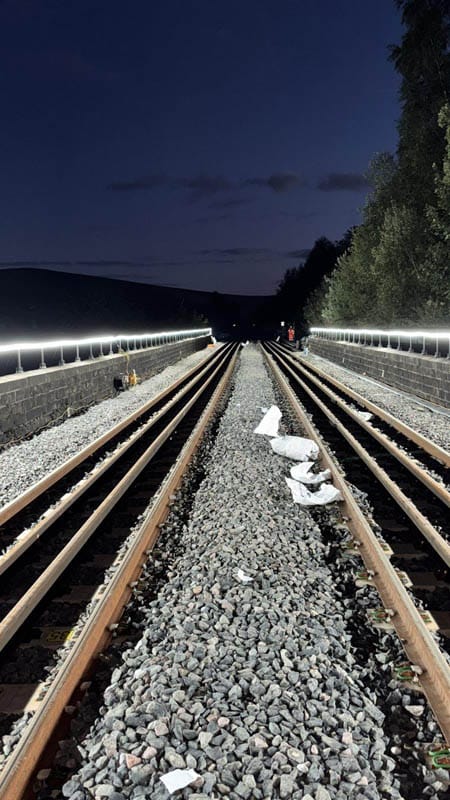

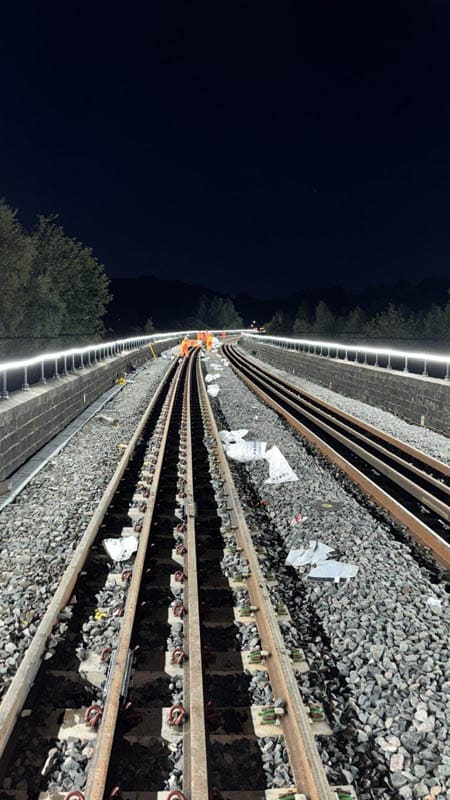

Reel Light Flex-Select Photo Gallery
RITE-POWER INDUSTRIAL PORTABLE BATTERY POWERED GENERATORS
Key Features & Benefits
Portable Battery-Powered Generator – Flexible power supply designed to provide reliable electricity in remote or temporary work locations.
Compatible with Ritelite Rail Lighting Systems – Powers PROLINK, K21, K45-LITE and other Ritelite lighting solutions, as well as compatible tools and equipment.
Silent, Zero-Emission Operation – Fume-free power suitable for tunnels, compounds and other environments where noise and emissions must be controlled.
No Fuel Required – Rechargeable lithium battery system removes the need for diesel or petrol generators.
Low Maintenance Power Solution – Battery-powered design eliminates many servicing requirements associated with traditional generators.
Highly Portable System – Compact, transportable unit that can be easily deployed or removed from site to avoid security concerns.
Long Duration Operation – Provides dependable power for extended shifts and weekend maintenance work.
Rugged Industrial Construction – Engineered for reliable performance in demanding construction and rail environments.
Product Used With
