22,000 Equivalent
Lumens

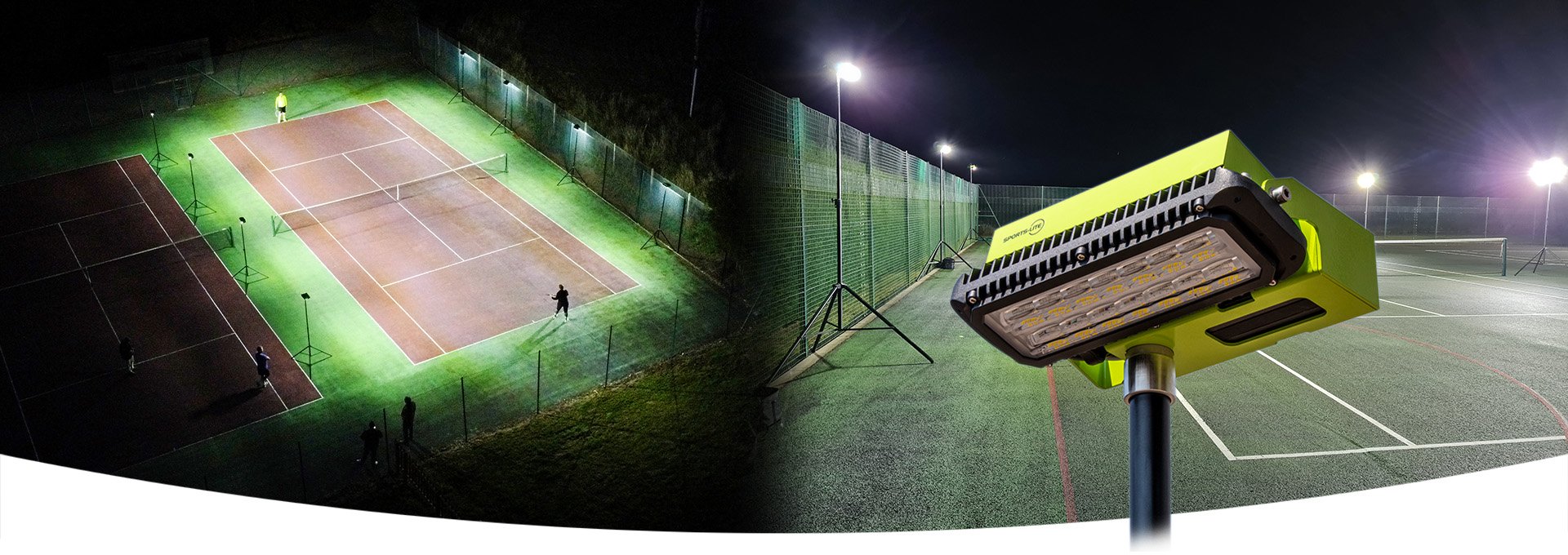

SPORTS-LITE TRAINING KIT FOR MUGA COURTS
Ritelite’s SPORTS–LITE training kits offer Multi Use Games Areas an affordable solution for winter training. Silent operation, no trailing cables, battery powered. Lights can be set up anywhere on the court quickly and easily.
Using advanced optical lens design the Sports-LITE optimises all available light to maximise the useable light on the court whilst creating very low glare.
Fast and easy to setup in under 1 minute per light
Lightweight and compact to store & transport
Supplied with waterproof carry bags
Optimised optical lensing for low glare or light pollution
Directs all light onto the training surface
No planning permission required
Can be used anywhere on any terrain
Fully rechargeable lithium batteries
Options for 2 hours 20 minutes or 4 hours 20 minutes duration
Safe, silent & zero carbon
No trailing cables, no noise & no fuel costs
Save money on hiring expensive floodlit venues for winter training
Cost of recharging an 8 pc Sports-LITE kit = less than £1
TYPICAL LAYOUT OF THE SPORTS-LITE TRAINING KITS
Sports-LITE training kits are available in multiples of 2. Common kit sizes are;
6 x Sports-LITE Training Kit
8 x Sports-LITE Training Kit
ALL KITS INCLUDE
light heads, 3m tripods, removable lithium battery packs with chargers, and weather proof carry bags.
UNIQUE LENSING OPTIMISED TO ENSURE ALL THE LIGHT IS DIRECTED TOWARDS THE PLAYING SURFACE
All light is directed on to playing surface offering uniform light to optimum levels for training.
* 22,000 lumens when comparing light output to other symmetrical lensed beam pattern products.
KEY FEATURES OF THE SPORTS-LITE LIGHTING KITS
22,000 equivalent lumens light output* IP65 waterproof
Stable to 25mph winds. No extra tie downs or ground pegs required
Unique lensing optimised for all playing surfaces. Low light pollution to nearby areas
Safe silent operation. No trip hazards. No trap hazards. No noise. No maintenance. Soft descent anti-trip tripod
Quick & simple deployment by one person in under 1 minute per light
Multiple kit options for all budgets and training requirements
Compact to store and transport. Only 9.64kg per kit. Easy to fit a full set in a car boot
Supplied with waterproof carry bags as standard
TECHNICAL SPECIFICATIONS OF THE SPORTS-LITE TRAINING KIT
- 3M anti-trap, soft descent aluminium tripod
- 5700K Cool White Light sports focused lensing for maximum coverage with low light spill
- Waterproof, IP65 rated light heads
- Quick and simple set up by one person in under 1 minute per light set
- 22,000 equivalent lumens light output when comparing light output to other symmetrical lensed beam pattern products
| SPORTS-LITE WEIGHTS / DIMENSIONS | |
| TOTAL SYSTEM WEIGHT (standard battery) | 10.65Kg (Light head, battery and tripod) |
| TOTAL SYSTEM WEIGHT (high capacity battery) | 11.34Kg (Light head, battery and tripod) |
| LIGHT HEAD | |
| WEIGHT (excluding battery) | 2.88Kg |
| DIMENSIONS (W x H x D) | 300mm x 250mm x 100mm |
| TRIPOD | |
| WEIGHT | 6.25Kg |
| CLOSED DIMENSIONS | 1540mm x ø140mm |
| OPEN DIMENSIONS | 3000mm x ø1950mm |
Charging Options
The Sports-Lite training kits are a fantastic energy friendly lighting solution with very little energy required to recharge the Sports-Lite’s lithium battery packs.
- Single chargers supplied with units as standard
- Optional high powered chargers for faster charging
- 4, 5 or 6-way multi-bank charger to charge multiple units from one plug socket
The units can be charged in as little as 4.5 hours (charging a standard battery with the high power charger). They can be charged after the training session and be available for any unexpected training evenings you may have.
| BATTERY TYPE | PRODUCT CODE | DURATION | CHARGE TIMES | |
| STANDARD CHARGER | FAST CHARGER | |||
| Power Pack Battery | LSPL/BATT200 | 2h 20m | 6 hours* | 4.5 hours |
| Power Pack+ Battery | LSPL/BATT370 | 4h 20m | 11.5 hours | 8.5 hours* |
POWER PACK BATTERY (2h 20m)
A rechargeable lithium battery pack with a max 2h 20m duration, complete with in-built battery level indicator
LSPL/BATT200
POWER PACK+ BATTERY (4h 20m)
A rechargeable lithium battery pack with a max 4h 20m duration, complete with in-built battery level indicator
LSPL/BATT370
STANDARD CHARGER
Standard battery charger for charging the Sports-Lite battery packs
LSPL/CHARGER150
FAST CHARGER
Fast battery charger for charging the Sports-Lite battery packs at a faster rate
LSPL/CHARGER200
4 MULTI-WAY BATTERY CHARGERS
Sports-Lite 4-way battery charger
LSPL/4WAYCHARGER150
4 MULTI-WAY FAST CHARGERS
Sports-Lite 4-way fast charger
LSPL/4WAYCHARGER200
5 MULTI-WAY BATTERY CHARGERS
Sports-Lite 5-way battery charger
LSPL/5WAYCHARGER
5 MULTI-WAY FAST CHARGERS
Sports-Lite 5-way fast charger
LSPL/5WAYCHARGER200
6 MULTI-WAY BATTERY CHARGERS
Sports-Lite 6-way battery charger
LSPL/6WAYCHARGER150
6 MULTI-WAY FAST CHARGERS
Sports-Lite 6-way fast charger
LSPL/6WAYCHARGER200
TRIPOD
A light weight 3 metre tripod for use with the Sports-Lite LED light head
LSPL/TRIPOD
STABILITY KIT
Add to the centre of the tripod to increase stability in strong wind
LSPL/STABILITYKIT
FENCE ADAPTOR
A 3m height adjustable mast which can be permanently fixed to any fence. Protective padding also available
LSPL/FENCEADAPTOR
LIGHT HEAD BAG
Store up to 2 Sports-Lite heads, batteries and chargers safely in this padded weatherproof storage bag
LSPL/HEADBAG
TRIPOD BAG
Store up to 2 Sports-Lite tripods safely in this padded weatherproof storage bag
LSPL/TRIPODBAG
FENCE KIT PADDING
Padding for the Sports-LITE Fence Adaptor for additional player protection
LSPL/FENCEKITPADDING
