22,000 Equivalent
Lumens
Ritelite’s KFIRE-LITE is a high power LED rechargeable battery powered or mains powered area flood light ideal for fire and rescue services.
Using advanced optical lens design the KFIRE-LITE focuses all available light onto the required surface for maximised area illumination giving low glare and low light spill (light pollution) to surrounding areas.
Optimised beam controlled lensing for minimal light pollution
Directs all the light onto the required surface. 6500k cool white light
Lightweight to carry and compact to store
Supplied with waterproof carry bags
Fast and easy to setup in under 1 minute per light by 1 person
Silent Operation. No mains or generator required. Zero carbon
No trailing cables, no noise & no fuel costs
Flexible & Robust to cope with almost any remote lighting application
Fully rechargeable lithium batteries
Long battery life up to 4 hours 20 minutes duration from one charge
KFIRE-LITE LENSING
OPTIONS

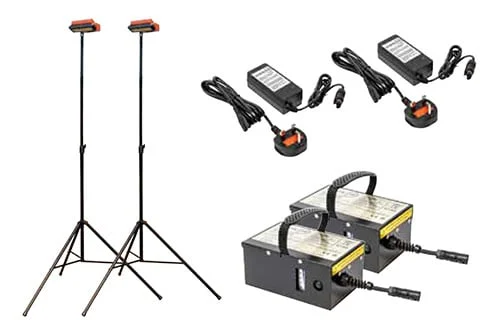

TWIN KIT WITH
STANDARD 2H BATTERY PACKS
LFBL/2KIT/EU

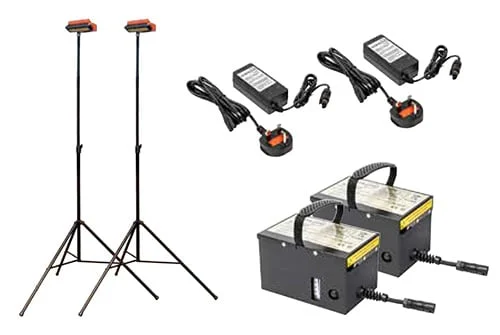

TWIN KIT WITH
HIGH CAPACITY 4H BATTERY PACKS
LFBL/2KIT/EU/4H

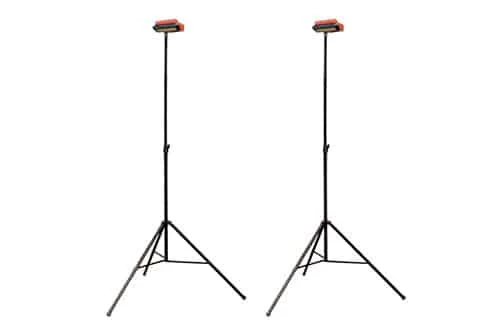

TWIN KIT WITH
240V MAINS POWER ADAPTOR
FBL/MP125/2KIT/TC
KEY FEATURES OF THE KFIRE-LITE
22,000 equivalent lumens light output (when comparing light output to symmetrical lensed beam pattern products)
Stable to 25mph winds. No extra tie downs or ground pegs required
Unique lensing optimised for low glare and maximum light where needed
Safe silent operation. No trip hazards. No trap hazards. No noise. No maintenance
Quick & simple deployment by one person in under 1 minute per light
Choice of battery or mains 240V powered products
Compact to store and transport. Easy to fit a full set in a vehicle
Supplied with waterproof carry bags as standard
TECHNICAL SPECIFICATIONS OF THE KFIRE-LITE KIT
- 3M anti-trap, soft descent aluminium tripod
- Daylight White Light focused lensing for maximum coverage with low light spill
- Waterproof, IP65 rated light heads
- Quick and simple set up by one person in under 1 minute per light set
- 22,000 equivalent lumens light output when comparing light output to other symmetrical lensed beam pattern products
| KFIRE-LITE WEIGHTS / DIMENSIONS | |
| TOTAL SYSTEM WEIGHT (standard battery) | <10.5Kg (Light head, battery and tripod) |
| TOTAL SYSTEM WEIGHT (high capacity battery) | <11.5Kg (Light head, battery and tripod) |
| LIGHT HEAD | |
| WEIGHT (excluding battery) | 2.88Kg |
| DIMENSIONS (W x H x D) | 300mm x 250mm x 100mm |
| TRIPOD | |
| WEIGHT | 6.25Kg |
| CLOSED DIMENSIONS | 1540mm x ø140mm |
| OPEN DIMENSIONS | 3000mm x ø1950mm |
Charging Options
The KFIRE-LITE’s are a fantastic energy friendly lighting solution with very little energy required to recharge the KFIRE-LITE’s lithium battery packs.
- Single chargers supplied with units as standard
- Optional high powered chargers for faster charging
- 4, 5 or 6-way multi-bank charger to charge multiple units from one plug socket
The units can be charged in as little as 4.5 hours (charging a standard battery with the high power charger). They can be charged straight after use ensuring they will be fully charged ready for the next deployment.
| BATTERY TYPE | PRODUCT CODE | DURATION | CHARGE TIMES | |
| STANDARD CHARGER | FAST CHARGER | |||
| Power Pack Battery | LFBL/BATT200 | 2h 20m | 6 hours* | 4.5 hours |
| Power Pack+ Battery | LFBL/BATT370 | 4h 20m | 11.5 hours | 8.5 hours* |
- How long does the KFIRE-LITE last on one charge?
The KFIRE-LITE has 2 options of high energy lithium-ion batteries available to last either 2 hours 20 minutes or 4 hours 40 minutes from a single charge. - Can the KFIRE-LITE be used in rain?
Yes, the KFIRE-LITE is rated IP65 and is fully waterproof for normal outside use. - How do I know how much charge my KFIRE-LITE Battery has?
Your KFIRE-LITE battery will show its state of charge (SOC) via the 5 LED display on the battery. When the battery power on button pressed, the LED’s will show the charge level. The single red (power on LED) and four green LED’s indicate the battery is fully charged at 100%. As the battery discharges the green LED indicators will gradually go out in approximately 20% stages. When the red LED indicator shows, the battery is low and those relying on the light should finish the task in hand so they aren’t suddenly left in darkness. At approximately 5% SOC the red LED will flash. When the battery is completely exhausted no LED’s will show until the battery is placed on charge again. - How long does it take to recharge the battery?
The KFIRE-LITE lithium battery takes from 4.5 hours to 11.5 hours to charge from flat to full capacity depending on which size battery you are using and which charger. The table below explains this further. We recommend keeping your batteries fully charged ready for use.BATTERY TYPE PRODUCT CODE DURATION CHARGE TIMES STANDARD CHARGER FAST CHARGER Power Pack Battery LFBL/BATT200 2h 20m 6 hours* 4.5 hours Power Pack+ Battery LFBL/BATT370 4h 20m 11.5 hours 8.5 hours* * Chargers supplied as standard within kits
- Can I leave the batteries charging overnight?
You are able to charge the batteries in a well ventilated area at any time of the day when they are not in use ensuring the batteries will always be ready to use when needed. - What charger options are available for the KFIRE-LITE?
The KFIRE-LITE is delivered with a mains battery chargers. Multibank charger options are available to charge up to 5 units at once from one power socket. - Do full instructions come with the product?
Yes each KFIRE-LITE order will be delivered with an Operator’s Manual which will explain all details of how to operate the product. User set up video’s and the manual are also available via QR code directly from each of the KFIRE-LITE light heads.
