22,000 Equivalent
Lumens

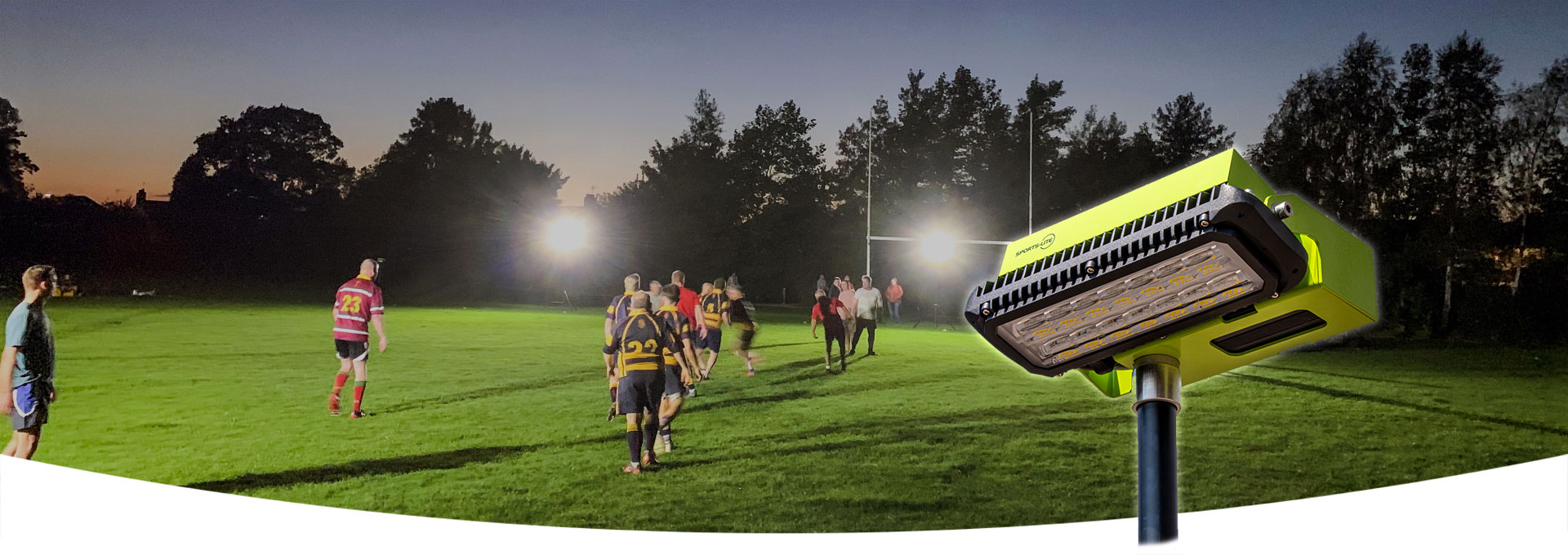

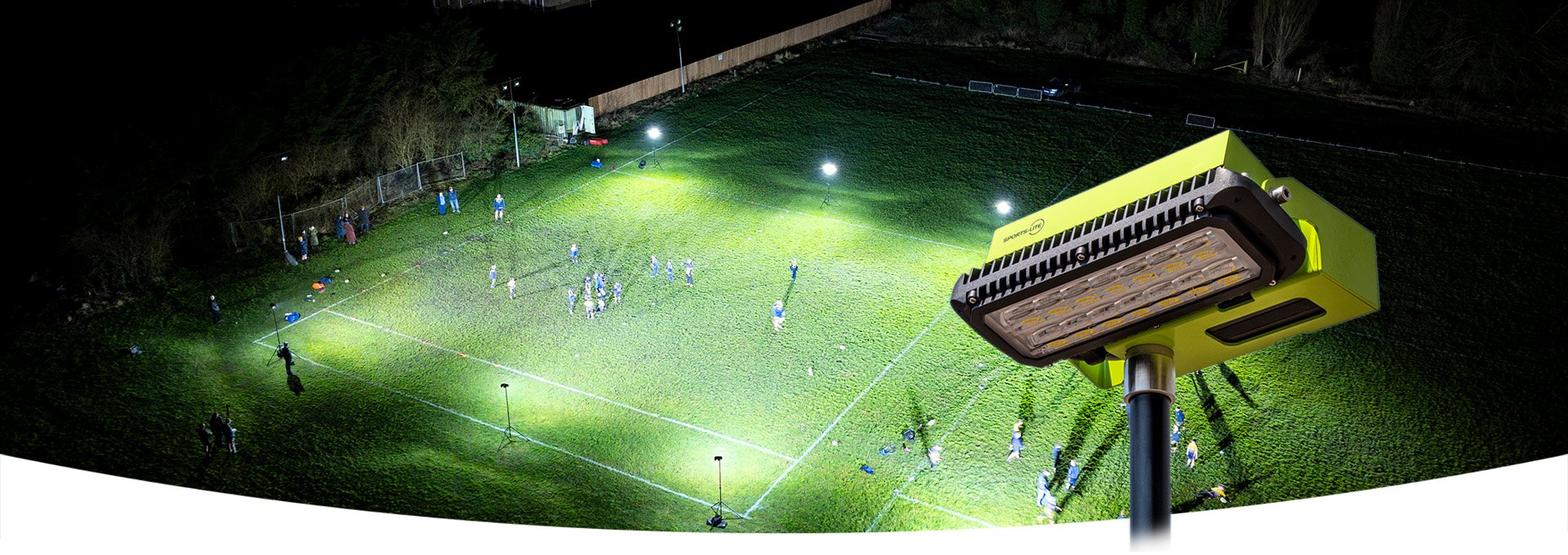

SPORTS-LITE TRAINING KIT FOR RUGBY
Ritelite’s SPORTS-LITE training kits offer clubs a fast, affordable solution for winter training. Silent operation, no trailing cables, battery powered. Lights can be set up anywhere, on all types of pitches, quickly and easily.
Using advanced optical lens design the Sports-LITE optimises all available light to maximise the useable light on the pitch whilst creating very low glare that could affect the players.
SPORTS-LITE TRAINING KIT OPTIONS
Sports-LITE training kits are available in multiples of 2. Recommended kit sizes are;
4 Kit
30m x 30m drill training area
6 Kit
Third of rugby pitch
8 Kit
Half of rugby pitch
12 Kit
2 Thirds of rugby pitch
16 Kit
Full rugby pitch
ALL KITS INCLUDE
light heads, 3m tripods, removable lithium battery packs with chargers, and weather proof carry bags.

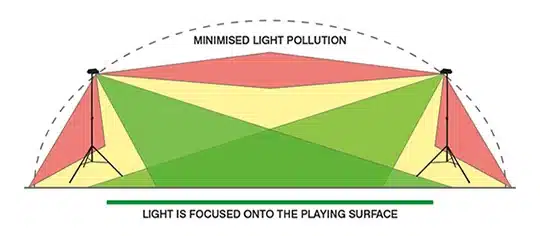

UNIQUE LENSING OPTIMISED TO ENSURE ALL THE LIGHT IS DIRECTED TOWARDS THE PLAYING SURFACE
All light is directed on to playing surface offering uniform light to optimum levels for training.
Data based on a 60M x 40M pitch set up with 8 x LED Sports-LITE lights
* 22,000 lumens when comparing light output to other symmetrical lensed beam pattern products.

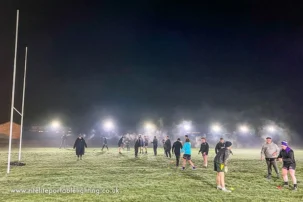

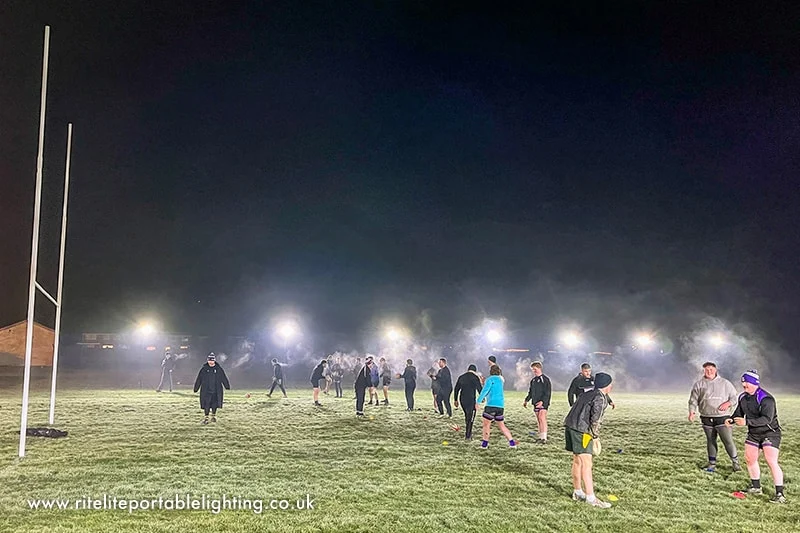

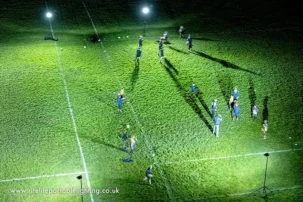

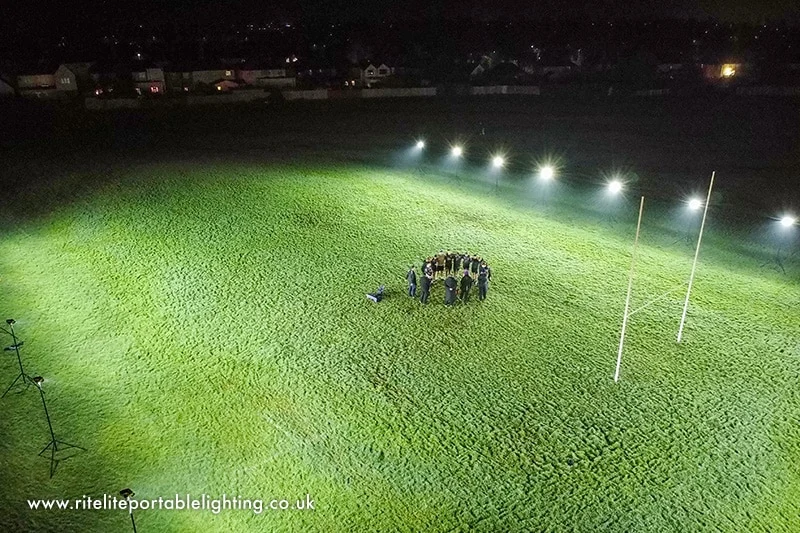

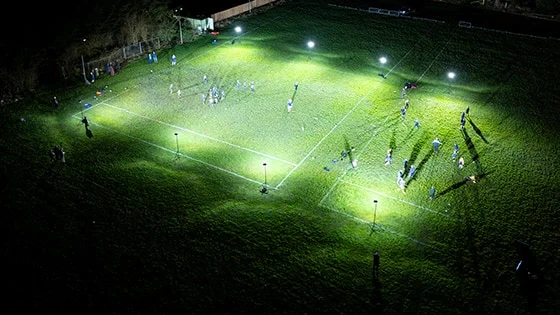

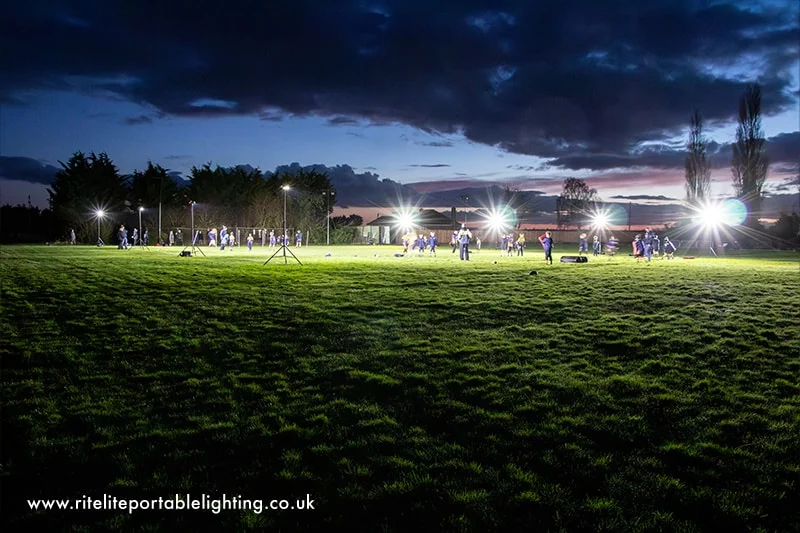

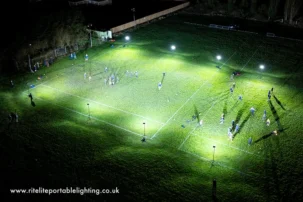

WHERE SPORTS-LITE’S ARE ALREADY BEING USED FOR TRAINING
Transform winter Rugby training sessions through the dark winter evenings with the Sports-LITE training kits. Quick to put up, easy to use, and offering superb illumination optimally designed for sports, the Sports-LITE’s are fantastic portable floodlights for rugby pitches. These Rugby LED training lights are waterproof to IP65, suitable for any weather, easy and safe to operate, and can be put on any size pitch or training area. Highly portable, compact, and light to store and transport the Sports-LITE floodlights for rugby pitches last for over 2 hours and 20 minutes on one charge and are easy to recharge with multiple charger solutions available to charge many lights at once from one plug. There are no trailing cables, no emissions, and no noise and the Sports-LITE does not require planning permission to use.
With grants available to help clubs with initial investment the Sports-LITE is the ideal Rugby training light.
TECHNICAL SPECIFICATIONS OF THE SPORTS-LITE TRAINING KIT
- 3M anti-trap, soft descent aluminium tripod
- 5700K Cool White Light sports focused lensing for maximum coverage with low light spill
- Waterproof, IP65 rated light heads
- Quick and simple set up by one person in under 1 minute per light set
- 22,000 equivalent lumens light output when comparing light output to other symmetrical lensed beam pattern products
SPORTS-LITE WEIGHTS / DIMENSIONS | |
TOTAL SYSTEM WEIGHT (standard battery) | 10.65Kg (Light head, battery and tripod) |
TOTAL SYSTEM WEIGHT (high capacity battery) | 11.34Kg (Light head, battery and tripod) |
LIGHT HEAD | |
WEIGHT (excluding battery) | 2.88Kg |
DIMENSIONS (W x H x D) | 300mm x 250mm x 100mm |
TRIPOD | |
WEIGHT | 6.25Kg |
CLOSED DIMENSIONS | 1540mm x ø140mm |
OPEN DIMENSIONS | 3000mm x ø1950mm |
Charging Options
The Sports-Lite training kits are a fantastic energy friendly lighting solution with very little energy required to recharge the Sports-Lite’s lithium battery packs.
- Single chargers supplied with units as standard
- Optional high powered chargers for faster charging
- 4, 5 or 6-way multi-bank charger to charge multiple units from one plug socket
The units can be charged in as little as 4.5 hours (charging a standard battery with the high power charger). They can be charged after the training session and be available for any unexpected training evenings you may have.
BATTERY TYPE | PRODUCT CODE | DURATION | CHARGE TIMES | |
STANDARD CHARGER | FAST CHARGER | |||
Power Pack Battery | LSPL/BATT200 | 2h 20m | 6 hours* | 4.5 hours |
Power Pack+ Battery | LSPL/BATT370 | 4h 20m | 11.5 hours | 8.5 hours* |
POWER PACK BATTERY (2h 20m)
A rechargeable lithium battery pack with a max 2h 20m duration, complete with in-built battery level indicator
LSPL/BATT200
POWER PACK+ BATTERY (4h 20m)
A rechargeable lithium battery pack with a max 4h 20m duration, complete with in-built battery level indicator
LSPL/BATT370
STANDARD CHARGER
Standard battery charger for charging the Sports-Lite battery packs
LSPL/CHARGER150
FAST CHARGER
Fast battery charger for charging the Sports-Lite battery packs at a faster rate
LSPL/CHARGER200
4 MULTI-WAY BATTERY CHARGERS
Sports-Lite 4-way battery charger
LSPL/4WAYCHARGER150
4 MULTI-WAY FAST CHARGERS
Sports-Lite 4-way fast charger
LSPL/4WAYCHARGER200
5 MULTI-WAY BATTERY CHARGERS
Sports-Lite 5-way battery charger
LSPL/5WAYCHARGER
5 MULTI-WAY FAST CHARGERS
Sports-Lite 5-way fast charger
LSPL/5WAYCHARGER200
6 MULTI-WAY BATTERY CHARGERS
Sports-Lite 6-way battery charger
LSPL/6WAYCHARGER150
6 MULTI-WAY FAST CHARGERS
Sports-Lite 6-way fast charger
LSPL/6WAYCHARGER200
TRIPOD
A light weight 3 metre tripod for use with the Sports-Lite LED light head
LSPL/TRIPOD
STABILITY KIT
Add to the centre of the tripod to increase stability in strong wind
LSPL/STABILITYKIT
FENCE ADAPTOR
A 3m height adjustable mast which can be permanently fixed to any fence. Protective padding also available
LSPL/FENCEADAPTOR
LIGHT HEAD BAG
Store up to 2 Sports-Lite heads, batteries and chargers safely in this padded weatherproof storage bag
LSPL/HEADBAG
TRIPOD BAG
Store up to 2 Sports-Lite tripods safely in this padded weatherproof storage bag
LSPL/TRIPODBAG
FENCE KIT PADDING
Padding for the Sports-LITE Fence Adaptor for additional player protection
LSPL/FENCEKITPADDING
