REEL LIGHT
FLEX-SELECT

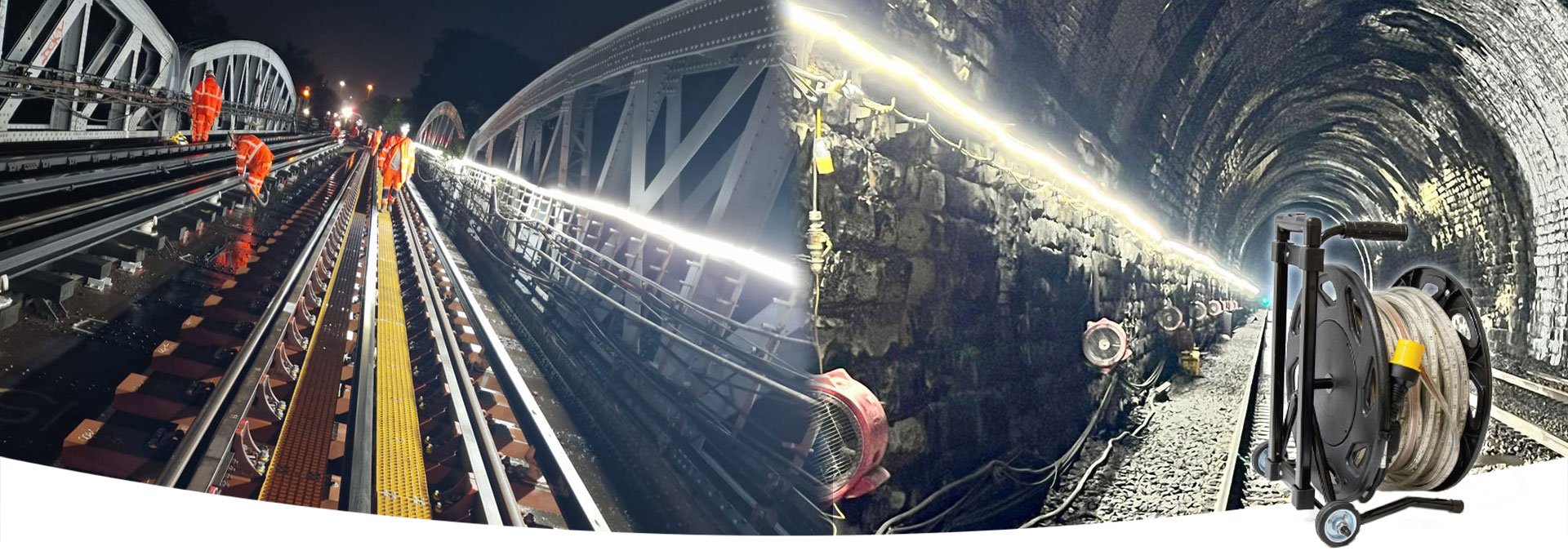

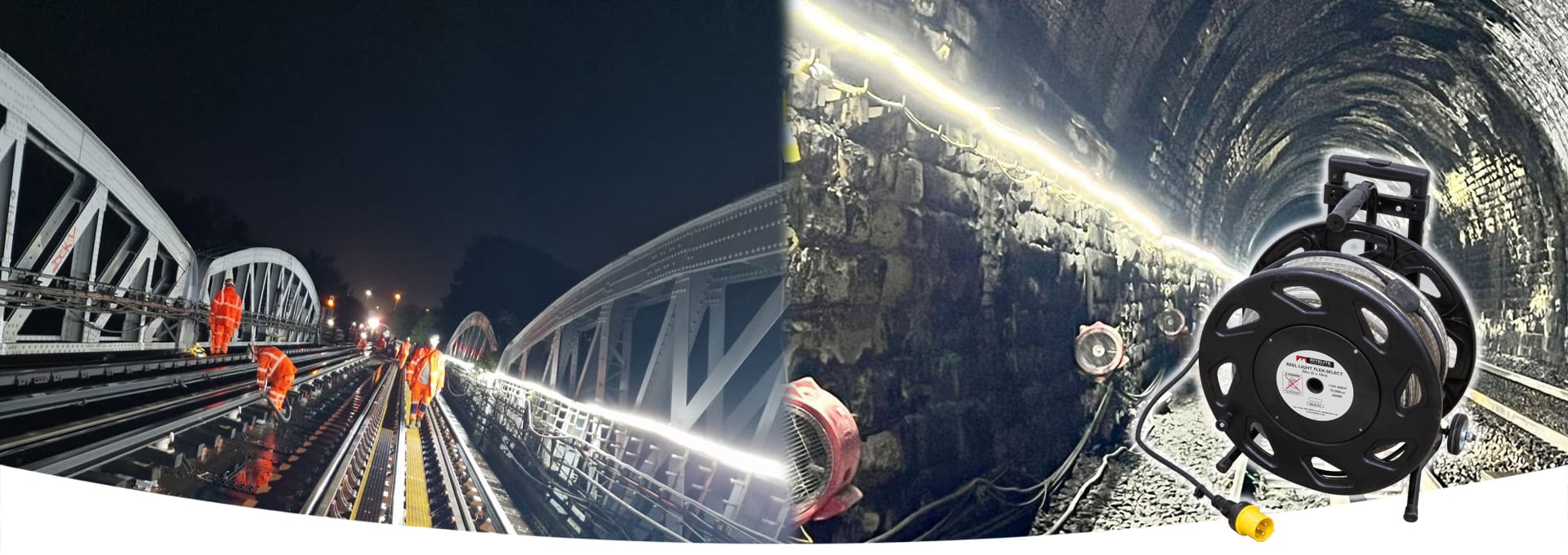

A flexible lighting solution for tunnels, walkways, perimeter & area lighting where rapid deployment is required
WHAT MAKES THE REEL LIGHT FLEX-SELECT SUCH A FANTASTIC LED LIGHTING SOLUTION?
The Ritelite Reel Light Flex-Select is a lighting solution ideal for rapid deployment designed to be used for illumination of areas and also in areas where warning or hazard identification is required.
Typical Applications
Internal or external work areas

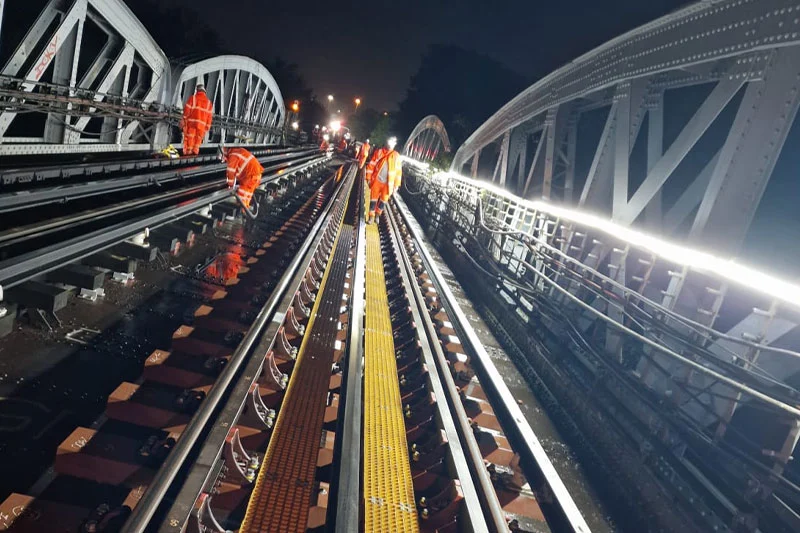

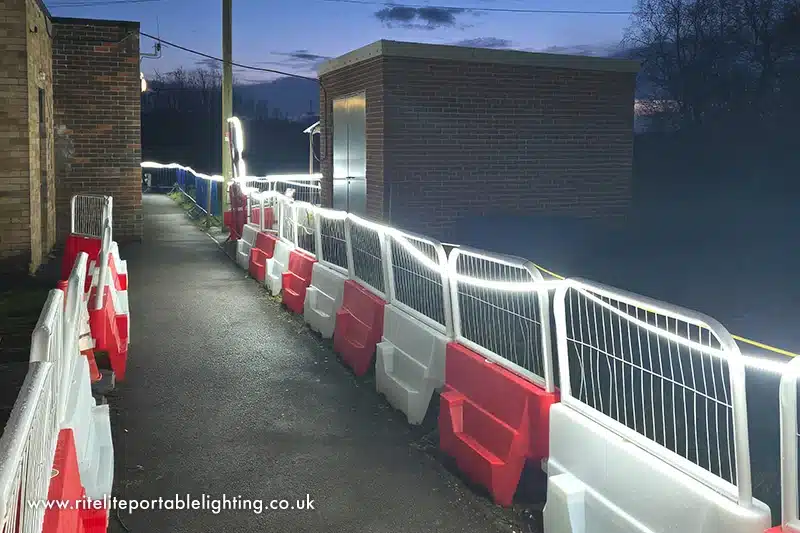

Linear paths or walkways

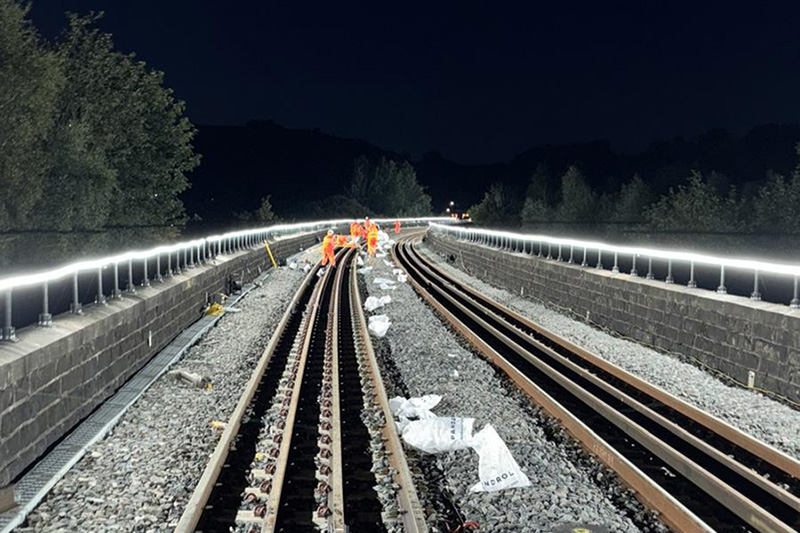

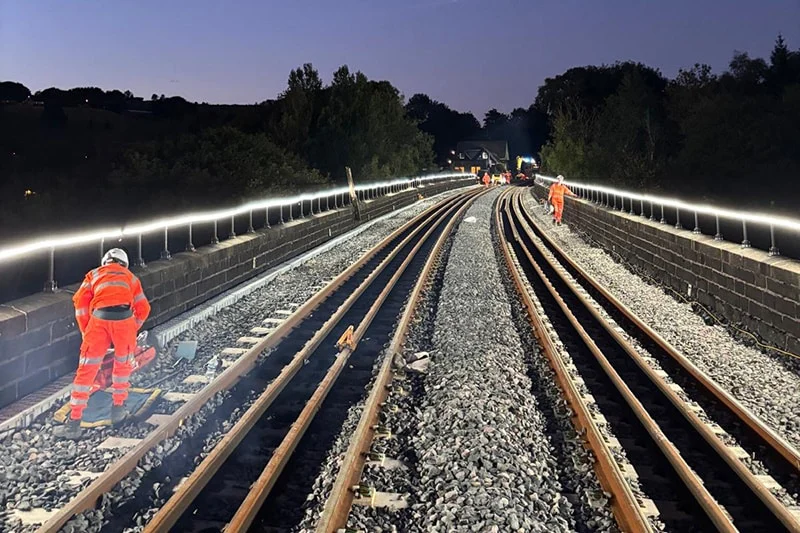

Edge marking, guard rail or scaffold illumination

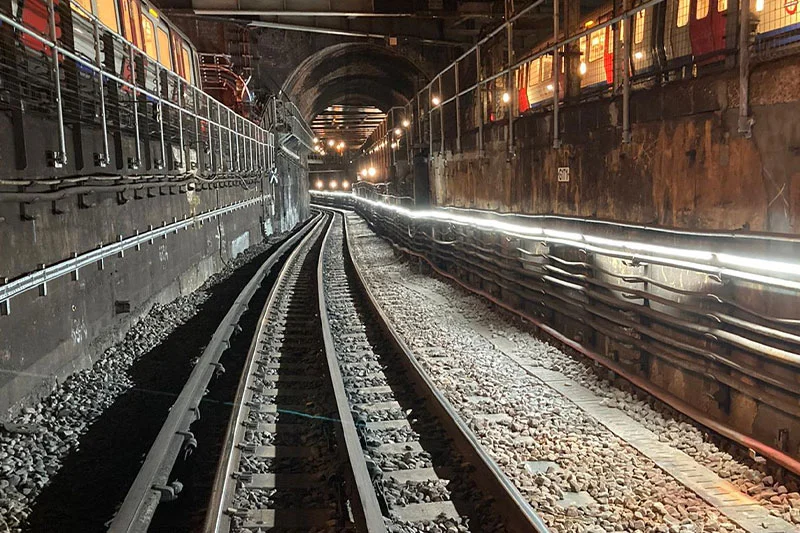

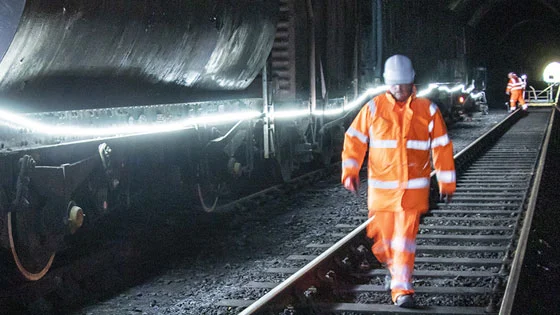

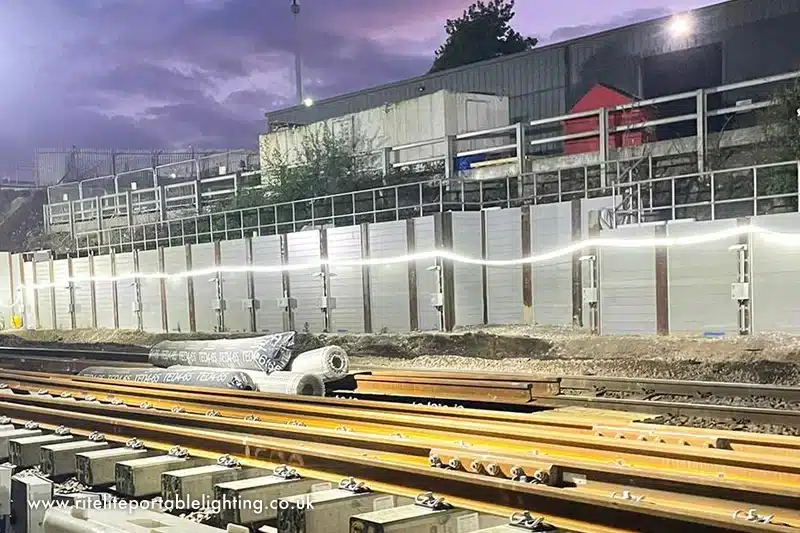

Tunnels, stairwells or access routes
KEY FEATURES

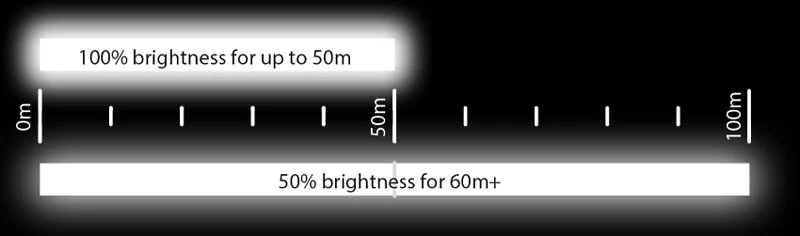

MODES OF USE
Max 100% brightness up to 50m
Max 50% brightness for 60m+

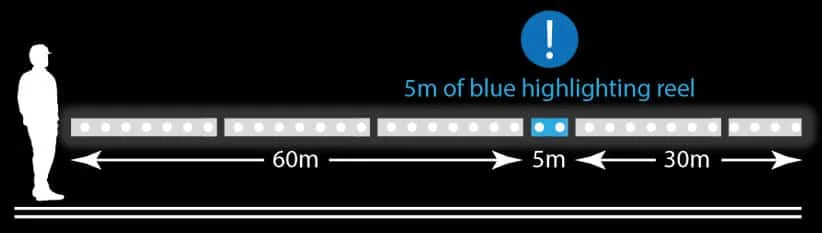

The Reel Light Flex-Select is highly adaptable. The modular design allows for changing both the length and coloured LED to suit the worksite. This diagram shows 95m of Reel Light Flex-Select being used to illuminate two sections of walkway or worksite, with 5m of coloured blue LED highlighting a specific area. This could be a site access way, emergency area, unsafe terrain or any other area that may require designation and identification.
TECHNICAL SPECIFICATIONS OF THE REEL LIGHT FLEX-SELECT
| Product Code | RSL50-10-5 |
| Power | 600W (12W/m) |
| Voltage | 110V |
| Length | 50m (5 x 10m) |
| Width x Height | (Collapsed) H530 x W450 x D300mm – Handle extends to 1200mm |
| Lumen Output | 75000 lumens (50m) |
| Operating Temperature | -25°C to +55°C |
| Colour Temperature | 6000K |
| PRODUCT CODE | DESCRIPTION |
| RSL-10-1 | Separate Sections White – 10m additional/replacement section |
| RSL-5-B | Colour Section – 5m blue section |
| RSL50DC | Dimmer System – Required for applications >50m |
| RSL-CD | Power Input – 110V input power section |
