K9 LED Portable Worklight
A versatile and portable LED torch / worklight system designed for patrol, inspection and emergency work situations.
WHY IS THE K9 LED PORTABLE WORKLIGHT THE BEST PRODUCT FOR SO MANY APPLICATIONS?
6,600 lumens
Over 17 hours duration at 100% power
Variable focus to suit any work task
Multiple Ways to Set up and Use for any remote working application
Intergrated 1.8m tripod system. 3m & 4.5m optional taller tripod systems available
Compact and light weight
HOW CAN THE K9 BE USED?
Directional Area Floodlight
Long Distance Spot Light
Site Work Light
Torch Light
KEY FEATURES & BENEFITS OF THE RITELITE K9 PORTABLE WORKLIGHT SYSTEM
The Ritelite K9 offers users both flood and spot beam angles and anything in between making it an ideal light for all applications. The K9 can be used as a handheld work light or extended up to 1.8M as an area floodlight.
Suitable for all environments The K9 is robust, ruggedized and designed to deal with the rigours of a harsh work environment. It is virtually maintenance free and suitable for a multitude of terrains and applications.
The unique K9 light management system ensures that all light is targeted towards the area required to achieve maximum light output with maximum battery efficiency.
The K9 can last at 100% brightness for over 17 hours ensuring high light levels can be maintained for prolonged periods in critical situations when working remotely from a power source.
The brightness levels of the K9 can be controlled to give longer light duration from one charge if required. One battery charge will give between 8 hours light at 100% to 110 hours light at 8% depending on ambient temperatures, with the standard SLA battery.
The Ritelite K9 can be supplied with a mains charger or the product can be fitted with an optional in-built charging system to allow full automatic charging from a 12 or 24 volt vehicle increasing flexibility and applications.
K9 MODES OF USE
Torch Mode
Torch mode allows the user to carry the unit with the extension arm and head folded down and locked in position
Worklight Mode
Worklight mode allows the user to site the unit in a suitable position on the ground or on a platform where the extension arm can be swung up and locked into position.

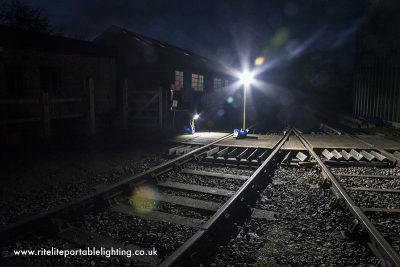

Floodlight Mode
The K9 has an inbuilt pair of fold out stability enhancing legs that allow the unit to become an effective tripod system without the need to carry additional equipment. Four quicklok extension poles fit compactly within the base enabling the light head to be used as an area floodlight with a height of 1.8M. The system is robust and quick to deploy with 360 degree movement possible.
KEY FEATURES & BENEFITS OF THE RITELITE K9 PORTABLE WORKLIGHT SYSTEM
The Ritelite K9 offers users both flood and spot beam angles and anything in between making it an ideal light for all applications. The K9 can be used as a handheld work light or extended up to 1.8M as an area floodlight.
Suitable for all environments The K9 is robust, ruggedized and designed to deal with the rigours of a harsh work environment. It is virtually maintenance free and suitable for a multitude of terrains and applications.
The unique K9 light management system ensures that all light is targeted towards the area required to achieve maximum light output with maximum battery efficiency.
The K9 has been designed to last at 100% for an average 8 hour shift ensuring high light levels can be maintained in critical situations when working remotely from a power source.
The brightness levels of the K9 can be controlled to give longer light duration from one charge if required. One battery charge will give between 8 hours light at 100% to 110 hours light at 8% depending on ambient temperatures, with the standard SLA battery.
The Ritelite K9 can be supplied with a mains charger or the product can be fitted with an optional in-built charging system to allow full automatic charging from a 12 or 24 volt vehicle increasing flexibility and applications.
TECHNICAL SPECIFICATIONS OF K9 LED PORTABLE WORKLIGHT
Unique Features of the K9
One Work Light Suitable For Every Task
No need to carry several products. Unique multi-function design means that the K9 can be used from a torch/search light to an area floodlight
Integrated Tripod System With 1.8m Working Height
No need to carry any additional equipment – Folding stabiliser legs and quick deploy extension poles are integrated into the base of the K9 to ensure enhanced stability on uneven surfaces.
Always Ready When You Need It Using The Mobile Charging Option
The optional in-built fast 12-24v DC mobile charger means you can keep your K9 fully charged and ready for use even on the move and in between tasks.
Unrivalled Performance To Size/Weight Ratio
Delivers maximum performance in any remote application. Compact design, easy to carry, with highest light output efficiency, coupled with minimal space claim in your vehicle.
Lightweight Lithium Battery Option For Increased Portability
Especially advantageous for use in difficult terrains e.g. mountain areas, or in emergency situations. Offers the same performance with a significant weight saving for ease of deployment over longer distances in extreme situations.
Adjustable Beam From Spot To Flood
The K9 is fitted with Ritelite’s unique diffuser to enable users to switch between a wide flood beam or a focused spot beam as required or even a combination of both.
Accidental Overload Protection
The K9 30 LED has an in-built M.C.B (Minature Circuit Breaker) which allows you to easily reset if over loaded. This prevents accidental overloading of the wiring if a high load is placed on either of the two outlet sockets.
Extension Cable
Heavy duty full retracting spiral extension cable – no need for additional extension cables.
Construction
The K9 30 LED has been constructed using high quality materials to produce a tough, long lasting product for the professional user. High impact engineering polymers combined with stainless steel fittings ensure the K9 30 LED is impervious to everyday knocks and bangs. The K9 30 LED employs an internal steel chassis to retain the battery. This construction makes the K9 30 LED a very strong robust unit, giving reliability throughout the K9 30 LED’s life.
Remote control system
The optional remote control system allows complete control of brightness, modes and battery status allowing the unit to be placed out of reach yet with full control at your fingertips. In addition any number of extra K9 30 LED units can be automatically switched on and controlled by the one remote through the mesh networking technology employed. One button press can switch on over a hundred units instantly, each unit allows the signal to be rebroadcast, so infinite distances and areas can be covered.
- Light output up to 6,600 lumens
- Colour temperature 6500 Kelvin
- 6 brightness levels
- Protection class: IP54
- Stowed dimensions (L) 430mm x (W) 215mm x (H) 255mm
- Height with integral tripod: 1.8m
- Height with additional tripod: 4.5m
| Battery Type | Product Code | Duration at 100% | Weight (including poles) |
|---|---|---|---|
| SLA | K9/SLA/V/MC | 7h 45m | 11.6Kg |
| Lithium Phosphate | K9/LP/V/MC | 9h 45m | 8.2Kg |
| Lithium | K9/L2/V/MC | 8h 45m | 7.6Kg |
| Dual Lithium | K9/L2X2/V/MC | 17h 45m | 8.75Kg |
Optional fast charging solutions available – please contact us for further details.
Extension Poles
Stored in the base of the K9, a set of quick lock non-conductive fibreglass extension poles that slot and twist together enabling the K9 portable worklight to be extended from a torch/worklight into a 1.8m area floodlight.
Vehicle Vepac Adaptor
The standard Vepac adaptor cable for charging a Vepac equipped K9 Ritelite portable worklight in any vehicle. Suitable for use with K9 worklights fitted with either Sealed Lead Acid or Lithium batteries.
12V 3A Battery Charger
The compact Alpha Plug Top Battery Charger has been designed to charge the K9 portable worklights fitted with Sealed Lead Acid batteries. This charger is not suitable for lithium models.
Vepac Vehicle Battery Charger
The compact Vepac Vehicle Battery Charger is designed to charge your K9 worklight or other device fitted with a Sealed Lead Acid battery on the go from any vehicle.
Beta 12V 4A Battery Charger Wide Range Input Voltage
The Beta 12V 4A Battery charger is a desktop battery charger with a wide range input voltage.
K9 4.5m Tripod System C/W Adjustable Legs
Use your K9 on multiple locations and terrains with an adjustable leg. The adjustable leg forms part of the 4.5m K9 Tripod System and enables the user more flexibility when positioning the K10 to light up a larger area.
Tripod Extension Lead
A 3m extension lead that enables the K9 LED Head to be fitted to the 4.5m tripod options to enable maximum flexibility.
AMF Emergency System
Auto Mains Failure detection system switches on all equipped K9 30 LED’s in power outage. Simply plug into the supply that needs maintaining. K9’s need to be fitted with a HDR chip to be compatible.
Robust Carry Case
A robust, well padded carry case designed to safely store and carry your K9 or K10 unit. Comes with handles and shoulder strap for easy transportation and it has storage in the lid for chargers and other accessories.
5-Way Vepac Mains Adaptor
A 5-way power supply that enables the user to charge 5 Vepac K9 units at once.
5-Way Battery Charger
A battery charger ideal for charging up to 5 devices at once. The 5-way battery charger is perfect for charging 5 K9 portable worklights fitted with Sealed Lead Acid batteries in a workshop or site environment.
Beta Desktop Battery Charger
Designed for use with K9 worklights fitted with Sealed Lead Acid batteries, the Beta Desktop Battery charger offers a faster recharge than the Alpha Plug Top charger and gives a 12V 4A output.
Mains Vepac Adaptor
This mains Vepac adaptor will allow you to charge your Vepac equipped K9 Ritelite portable worklight from any mains power outlet. Suitable for use with K9 worklights fitted with either Sealed Lead Acid or Lithium batteries.
K9 4.5m Tripod System
Light up a larger area, achieve maximum uniformity and full 360 degree light effect with the K9 4.5m Tripod System. Shoulder strap included. Total weight: 4.4kg. Total footprint at extended height: 1.52m (legs at max spread).
Mesh Remote Control
A remote control + MESH network module for the K9 LED that duplicates all functions of LED controls.
Magnetic Bracket
A magnetic bracket that enables the user to attach the K9 LED to any robust steel surface.
- Are spares available for my K9?
Yes please visit K9 accesories for a full range of standard spares and accessories we offer for the K9. If you cannot find the part you are looking for on this link please contact us at [email protected] or 01780 758585. - How does the 1.8m integrated tripod work on the K9 Portable Worklight?
Within the base of the K9 Worklight 4 x quickly deployable extension poles are stored which connect together enabling the light head to be raised to 1.8M tall. The stabilising legs fold out from the side of the product to complete a stable tripod for enhanced stability on uneven surfaces. - I have an old K9 which is no longer working, do you offer a repair service?
Yes, we can fix any issues with the K9. Please complete our repair form and our sales support team will be in contact. Once the unit has been returned to our main workshop we will diagnose the problem and advise what needs to be done and the cost (unless under warranty) before we start work on it. - Do you offer a choice of batteries?
We have a choice of four batteries – Sealed Lead Acid, Lithium Phosphate, and two sizes of Lithium Ion batteries which give a variety of durations for different applications. The battery dictates the weight of the product with Lithium Ion batteries offering the lightest solution for increased flexibility especially if carrying for long distances in remote areas. - What is the maximum duration from the K9’s battery?
This depends on the battery type the unit is fitted with. For maximum duration the power setting can be set as low as 8%. This will give up to 220 hours duration when used with the highest capacity battery – the dual Lithium model. - Will Lithium last any longer than SLA batteries on one charge?
Lithium batteries do all last longer than the SLA battery. SLA will last up to 8 hours at 100% brightness. The standard Lithium Ion and the Lithium Phosphate will last around 8 hours 30 minutes, the dual Lithium model will last up to 17 hours at 100% brightness. - How can you charge K9 units?
A range of chargers are available for the K9 including multi-bank options to charge more than one product at once and vehicle chargers. View the full range of chargers here.
