QUAD POD K65
MOBILE SPORTS LIGHTING TOWER FOR RUGBY
A highly efficient area flood lighting solution for Rugby combining optimised illumination and uniformity with minimised light loss, glare and light pollution
WHY DO SO MANY RUGBY CLUBS CHOOSE OUR QUAD POD K65 MOBILE SPORTS LIGHTING TOWER?
High Power, instant, flicker free LED light for large area floodlighting
Optimised illumination & uniformity of light
Rapid safe deployment - one person set up
Approximately 70% lower light pollution than typical lighting tower designs
Compact to store and transport, extending to 6.5m height
Powered by diesel generators, mains power or lithium battery powered generators
KEY FEATURES & BENEFITS OF THE QUAD POD K65 MOBILE SPORTS LIGHTING TOWER
High power beam controlled LED light heads providing up to 266,000 equivalent lumens* from a maximum 1460W power consumption. All light directed onto playing surface
Unique parallel mast design - The centre of gravity is very low with the weight perfectly balanced over the wheels for easy and safe handling even on difficult terrain.
Can be used for almost any sport on any surface.
Safe to operate – in-built mast safety systems and operator level RCBO electrical safety isolation switch.
One person quick deployment. Highly mobile and able to be manoeuvred over any terrain enabling use in a much wider range of applications than other lighting towers
Silent, fume free operation when mains or lithium battery generator powered - suitable for indoor use.
KEY FEATURES & BENEFITS OF THE QUAD POD K65 MOBILE SPORTS LIGHTING TOWER
High power beam controlled LED light heads providing up to 266,000 equivalent lumens* from a maximum 1460W power consumption. All light directed onto playing surface
Unique parallel mast design - The centre of gravity is very low with the weight perfectly balanced over the wheels for easy and safe handling even on difficult terrain.
Can be used for almost any sport on any surface.
Safe to operate – in-built mast safety systems and operator level RCBO electrical safety isolation switch.
One person quick deployment. Highly mobile and able to be manoeuvred over any terrain enabling use in a much wider range of applications than other lighting towers
Silent, fume free operation when mains or lithium battery generator powered - suitable for indoor use.

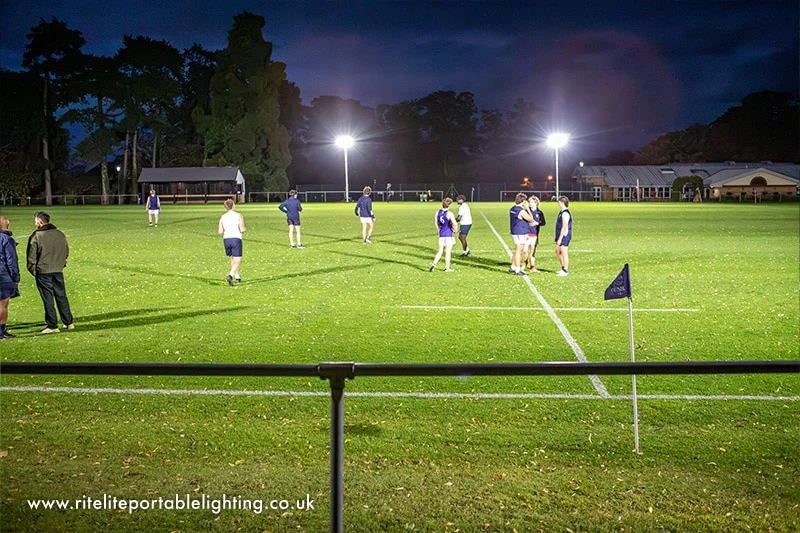

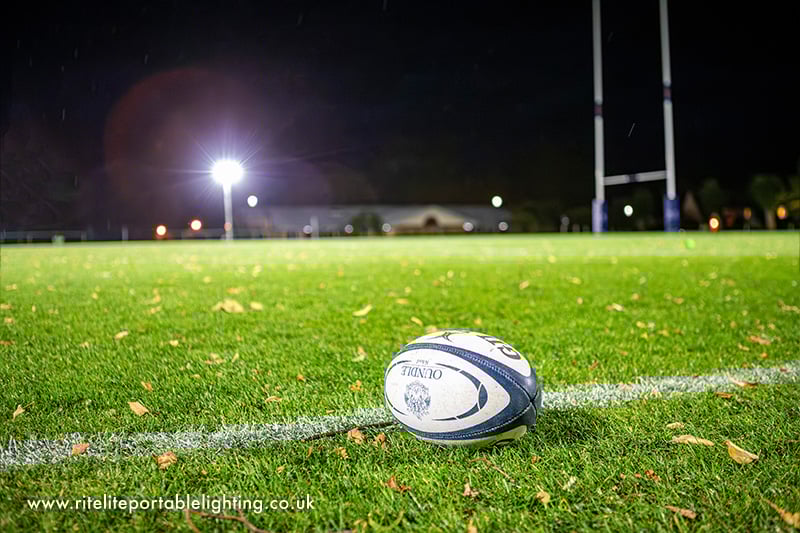

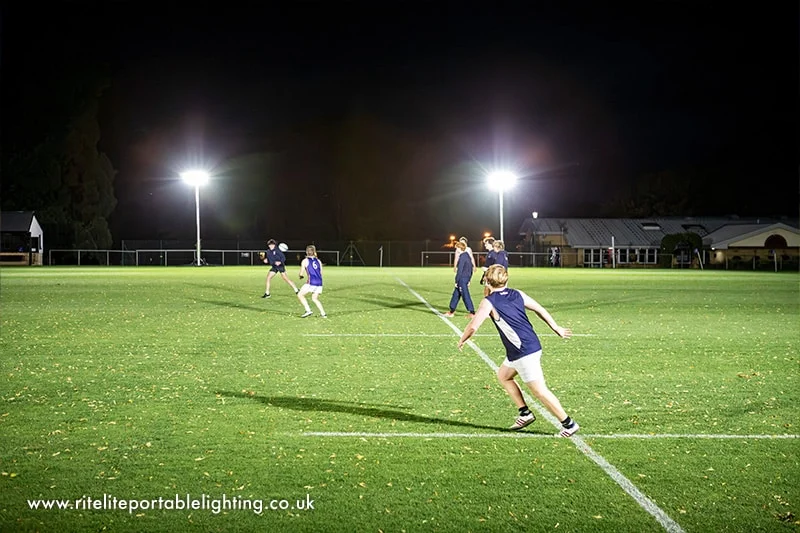

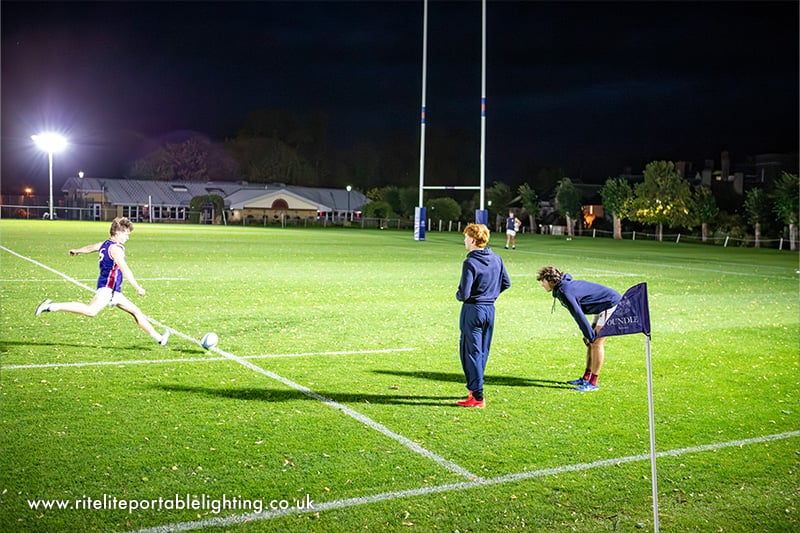

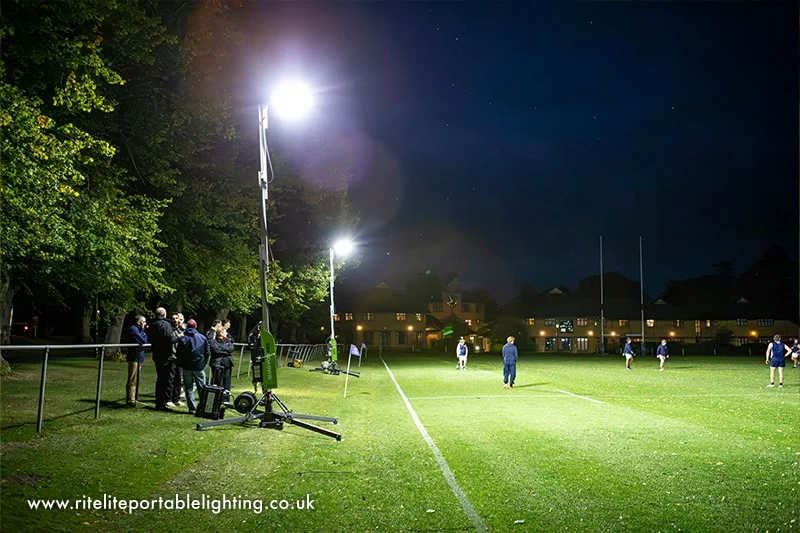

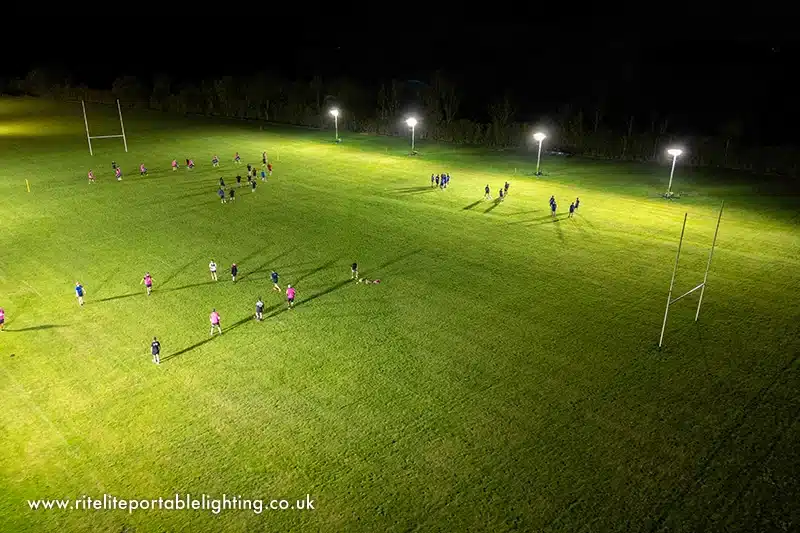

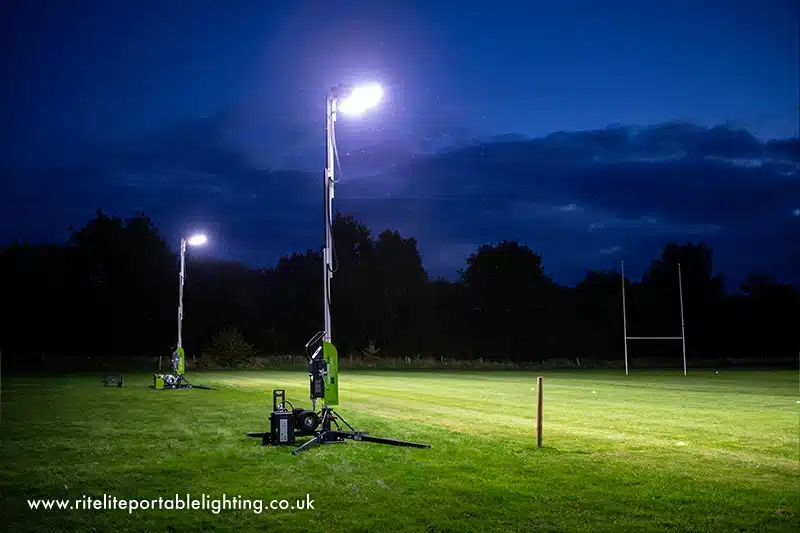

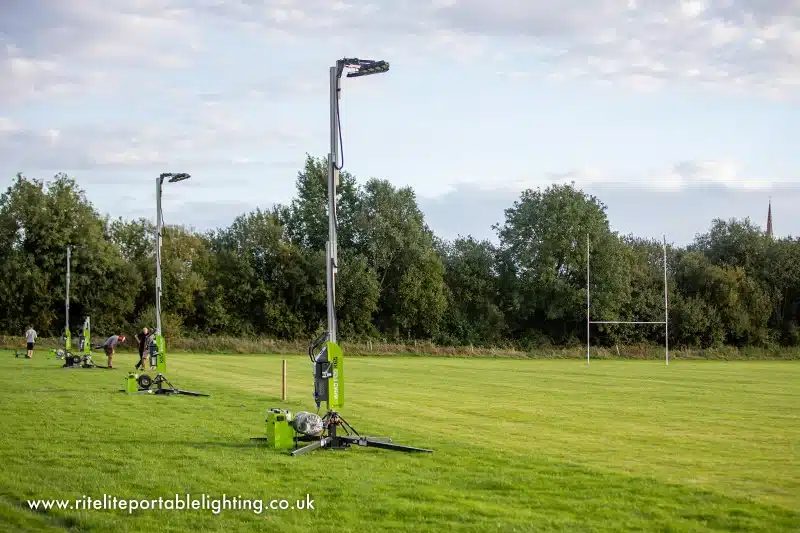

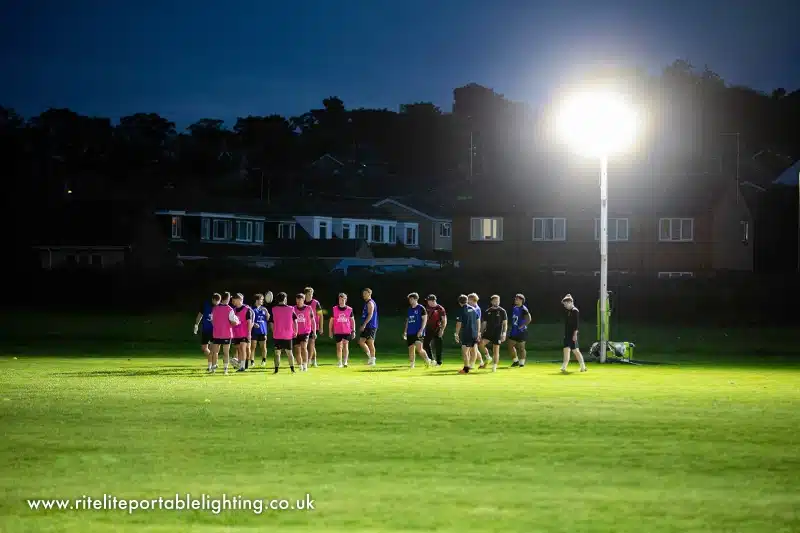

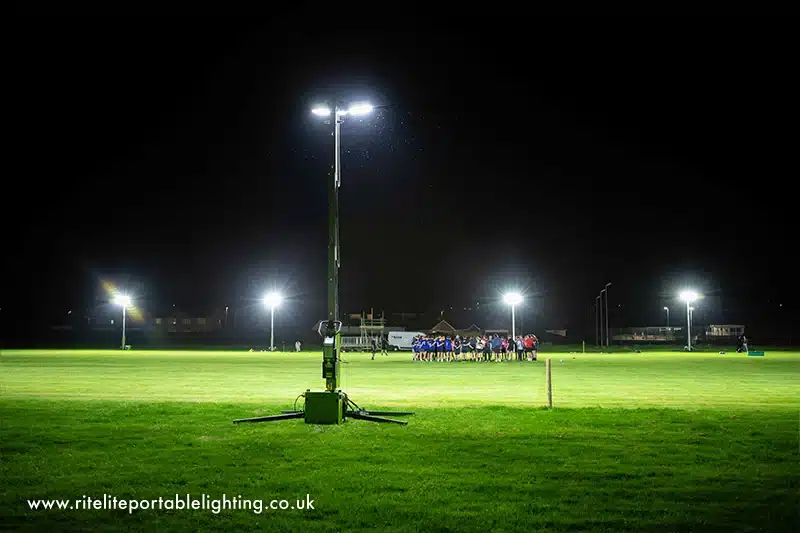

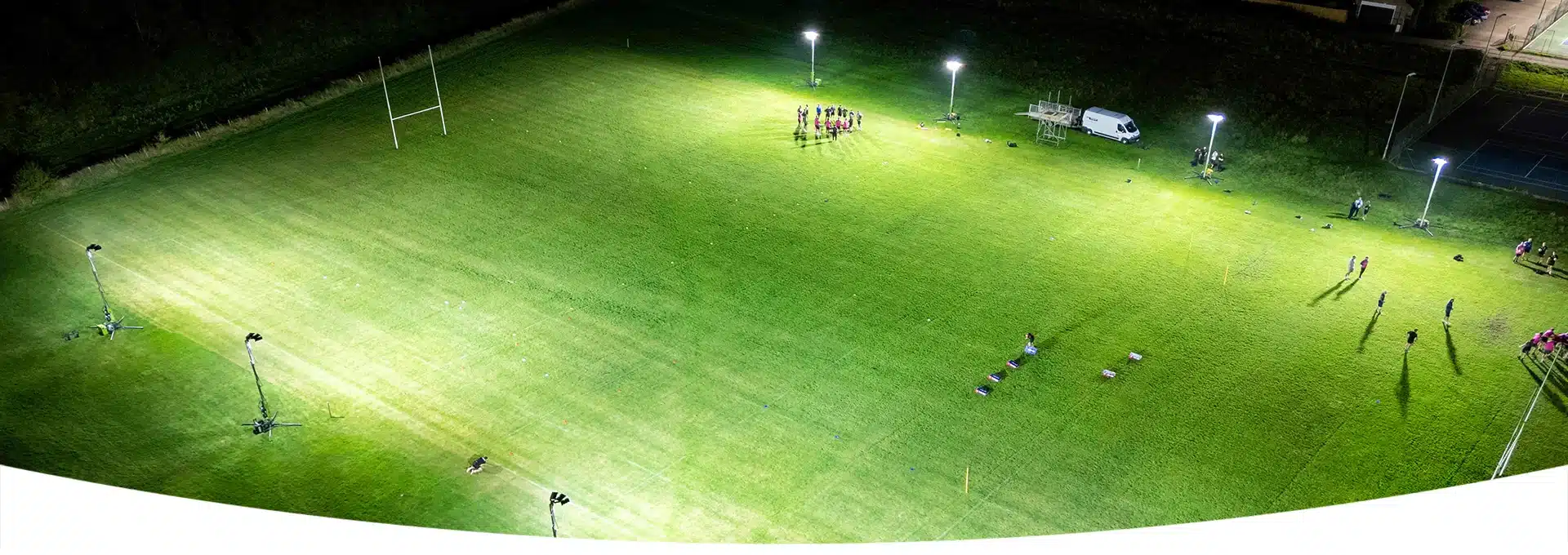

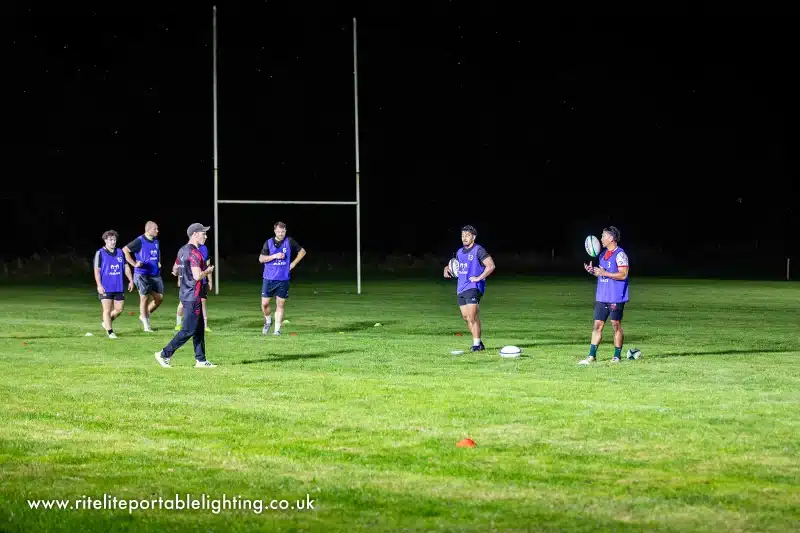

Where Quod Pod’s are already being used for Rugby Training
TECHNICAL SPECIFICATIONS OF THE K50 & K65 QUAD POD LIGHTING TOWERS
Individual, fully adjustable light heads
Allows light to be adjusted to suit any lighting application including a 360° light pattern.
Integrated manual winch with automatic safety brake
The slack rope safety system automatically detects when the winch rope is not correctly tensioned and prevents the user from continuing to operate the winch in the mast lowering direction. This helps to protect the user from potentially unsafe operating conditions and also protects the wire rope and winch from damage.
Operator level RCBO electrical safety isolation switch
No need to lower mast to turn luminaries on and off. Instant power off should an electrical problem occur.
Independently adjustable legs
Rapid to deploy, Independently adjustable legs. Designed to enable maximum stability when deployed on any sports pitch.
Built in level gauge
Reduces set-up time and allows the operator to ensure that the mast is setup correctly and safely.
Fork lift pockets and tie down points
For safe and fast handling, loading and unloading at storage depots and sports sites.
Automatic mast safety and stowage lock
Helps prevent mast from being raised until legs are deployed and secures mast for transport.
Automatic mast safety interlock system
Market leading, double pin safety locking system ensures that the mast is automatically and safely mechanically locked in all positions when raising the mast. This system also acts as a “dead man’s handle” for safe lowering of the mast.
Compact to store and transport
Will fit through standard size door enabling storage in any location. 8 Quad Pod lighting towers can be stored on a footpoot of 3m x 2m.
Low pressure footprint
Low pressure footprint with non-marking base. Optimum stability with minimum ground impact. Ideal for deployment on impressionable ground surfaces.
Unique parallel mast design
Allows the mast sections to slide past each other and the light head assembly to be fully retracted and stowed at the base of the unit. The centre of gravity is very low with the weight perfectly balanced over the wheels for easy and safe handling even on difficult terrain.
Low centre of gravity for safe handling on site
Typical telescopic mast designs do not allow the light heads to be retracted below approx 2m height for transportation and positioning on site. This results in either having to remove the light heads or in a high centre of gravity making positioning and handling difficult and potentially unsafe, especially on uneven surfaces.
Adjustable, removable wheel kit for transport, storage and security
Easily adjust the wheel kit for increased flexibility when transporting or storing the Quad Pod mobile lighting towers or remove completely when in situ to prevent theft.
The full standard model range is as shown in the below tables. To discuss specific requirements or the options available in more detail please do not hesitate to contact us or call 01780 765600
K50
| Product Code | Mast Height | Light Heads | Weight | Closed Dimensions | Open Dimensions | Wattage | Voltage | Lumens | Equivalent Lumens* |
|---|---|---|---|---|---|---|---|---|---|
| K50/MK5-L2X3/110/T60309 | 5m | L2x3 | 215Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 5m | 730 | 110 | 97,000 | 129,000 |
| K50/MK5-L2X3/230/T60309 | 5m | L2x3 | 215Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 5m | 730 | 230 | 97,000 | 129,000 |
| K50/MK5-L3X3/110/T60309 | 5m | L3X3 | 220Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 5m | 1100 | 110 | 146,000 | 208,000 |
| K50/MK5-L3X3/230/T60309 | 5m | L3X3 | 220Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 5m | 1100 | 230 | 146,000 | 208,000 |
| K50/MK5-L3X4/110/T60309 | 5m | L3X4 | 225Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 5m | 1460 | 110 | 195,000 | 266,000 |
| K50/MK5-L3X4/230/T60309 | 5m | L3X4 | 225Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 5m | 1460 | 230 | 195,000 | 266,000 |
K65
| Product Code | Mast Height | Light Heads | Weight | Closed Dimensions | Open Dimensions | Wattage | Voltage | Lumens | Equivalent Lumens* |
| K65/MK5-L2X3/110/T60309 | 6.5m | L2x3 | 227Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 6.5m | 730 | 110 | 97,000 | 129,000 |
| K65/MK5-L2X3/230/T60309 | 6.5m | L2x3 | 227Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 6.5m | 730 | 230 | 97,000 | 129,000 |
| K65/MK5-L3X3/110/T60309 | 6.5m | L3x3 | 232Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 6.5m | 1100 | 110 | 146,000 | 208,000 |
| K65/MK5-L3X3/230/T60309 | 6.5m | L3x3 | 232Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 6.5m | 1100 | 230 | 146,000 | 208,000 |
| K65/MK5-L3X4/110/T60309 | 6.5m | L3X4 | 237Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 6.5m | 1460 | 110 | 195,000 | 266,000 |
| K65/MK5-L3X4/240/T60309 | 6.5m | L3X4 | 237Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 6.5m | 1460 | 230 | 195,000 | 266,000 |
* 266,000 lumens when comparing light output to other symmetrical lensed beam pattern products.
FOOTPRINT WHEN DEPLOYED
FOOTPRINT WHEN STOWED
K65 Sports Protection Pad Kits
Additional player protection when locating K65 on run off areas for sports applications with space restrictions. Lightweight, waterproof, polyester reinforced PVC flame retardant material with waterproof expanded PE foam. Quick and easy to install and remove. Can be retrofitted on existing K65 Sports Mobile Lighting Towers and compatible for use together with Quad Pod Cover.
K65-PROTECT Standard protection
front main protection pad + 2 x leg protection pads for front K65 stability legs
K65-PROTECT+ Increased protection
front main protection pad + 4 x leg protection pads for all K65 stability legs
K65-PROTECT360 360° protection
front and rear protection pads + 4 x leg protection pads for all K65 stability legs
Quad Pod Cover
A high quality waterproof cover to protect the Quad Pod K65 when stored outside. It attaches to the unit and can be tied back during operation allowing access to all user controls.
Anemometer
Anemometer including magnetic bracket. Monitor the wind speed with this mast mountable anemometer. Quick installation. Automatic levelling. Wireless connection with mobile phone app up to 100m range. Adjustable maximum wind speed alarm function.
110V 14m Extension Lead
Extension leads are available in a variety of lengths to meet customer requirements. We offer a choice of plugs and sockets suitable for any country or voltage and also a choice of cable specifications. Please contact our sales department on 01780 758585 to discuss specific requirements.
240V 14m Extension Lead
Extension leads are available in a variety of lengths to meet customer requirements. We offer a choice of plugs and sockets suitable for any country or voltage and also a choice of cable specifications. Please contact our sales department on 01780 758585 to discuss specific requirements.

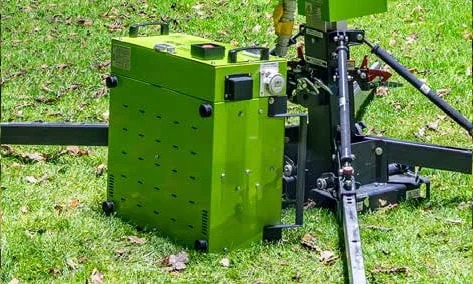

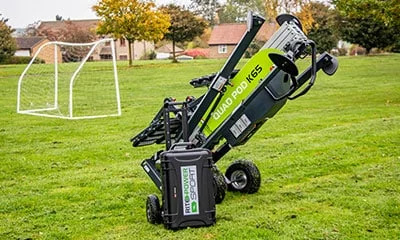

Rite-Power 3850 Portable Battery Powered Generator
A 2500W 3850 W/h industrial portable power generator. Rugged, compact waterproof case with industrial input and output sockets configurable as required.
Rite-Power 5250 Portable Battery Powered Generator
The RITE-POWER 5250 model of portable battery powered generator supplies 5250WH of energy at 2500W continuous power to use with lights, tools and other construction or site equipment. Zero emissions and safe operation.
Rite-Power 7700 Portable Battery Powered Generator
The RITE-POWER 7700 portable battery powered generator supplies 2500W continuous power from a 7700 WH energy bank to power tools, lighting and construction equipment. Safe and silent operation with zero emissions.

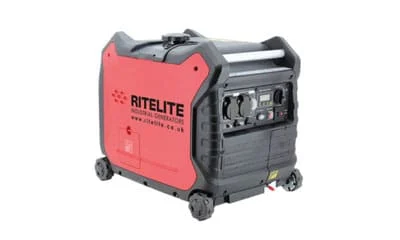

3.0KW Electric Start 100V or 240V
A power source for applications including construction sites, sports fields, and events. Available with either a 110V or 240V output.

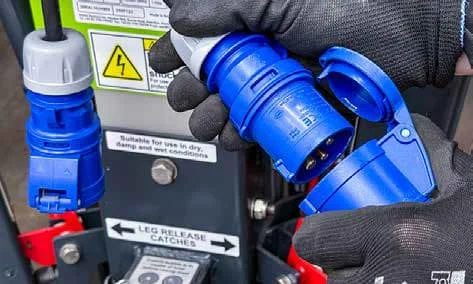

- How can the Quad Pod K65 mobile lighting tower be powered?
It is possible for the Quad Pod K65 to be powered from multiple power sources including mains power, diesel generators or a Ritelite RITE-POWER battery powered generator. The Quad Pod K65 can be supplied with either a 110V or 240V input voltage plug depending on application. Please contact our sales team to discuss further. - What are the closed dimensions of the Quad Pod K65 product?
The closed dimensions of the Quad Pod K65 mobile lighting tower is 1.09M x 0.83M x 1.95M (L x W x H). This enables it to be able to be pushed through a standard size door for storage and moved to where it is needed for use over almost any terrain by hand. - How heavy is a Quad Pod K65?
The heaviest model of the K65 6.5M Quad Pod weighs 237kg. This weight is evenly distributed over wide rough terrain wheels to enable it to be easily manoeuvered over almost any terrain into the required position. Forklift lift points assist movement onto transport vehicles and a lifting eye is available for customers who wish to lift via crane or other machine. - How bright are the Quad Pod K65 lighting towers?
The maximum brightness possible on a Quad Pod K65 lighting tower will give an average 20 lux over a massive 6868m2 area. To work out how many Quad Pod lighting towers you would need please contact us and we will be able to advise via relux lighting diagrams how many Quad Pod K65 Mobile lighting towers you would need for your required lighting levels. - Can Ritelite offer a repair service for damaged Quad Pods?
Yes Ritelite are able to support UK customers with repairing and servicing the Quad Pod K65 mobile lighting towers. Please contact our repair team with your product serial number and details of what needs repairing for a full quotation. We are able to offer customers the option to service or repair Quad Pods on site or can quote for return to our Lincolnshire workshop depending on nature of the issue. - Are spare parts available for the Quad Pod K65 mobile lighting towers?
Yes a full range of spare parts are available for the Quad Pod K65 mobile lighting towers. Please contact our sales team with your product serial number and what spares you need for a full quotation. - Do you offer training for correct setting up Quad Pod K65 mobile lighting towers?
We can arrange training for setting up the units for small groups of people at your site within the UK. Contact us for further information. - How many Quad Pod’s do I need to illuminate an 11v11 football pitch?
For an 11 V 11 full size pitch we would recommend between 6 and 8 units Quad Pod K65 mobile lighting towers, depending on the brightness level you wish to achieve. Our in house lighting design team can advise further and send relux lighting diagram to visually show the illumination levels that can be achieved. Please Contact us to find out more - Can the Quad Pod K65 be run from a battery?
Yes we offer a range of battery powered generators under our RITE-POWER range which will power the Quad Pod. Both 110V and 230V options are available with a choice of power output for different applications and countries. View the options on our Quad Pod Accessories webpage. - What is the wind rating for a Quad Pod K65 mobile lighting tower?
The Quad Pod K65 is safe to use in wind speeds up to 30mph. - Do we need planning permission to use the Quad Pod K65?
As the Quad Pod is a temporary lighting tower no planning permission is generally required, however care should be taken on setup to ensure the light does not dazzle road users or shine onto other buildings such as homes. - Can the Quad Pod run from a 110v supply?
The Quad Pod K65 mobile lighting tower has an input voltage range of 100-240V so will work fine with 110V circuits. Customers need to specify the type of connector you need when ordering so ensure site compatibility. - What does Beam Control mean?
Beam control refers to Ritelite’s unique lighting design ensuring that all the light that our products produce is directed towards the required playing or work surface rather than being lost into the sky or surrounding area in the most efficient way possible. Beam Controlled lensing considerably reduces any light pollution from the light to the surrounding area, especially important in built up areas or near protected wildlife areas. To understand more about this concept please click here. - How does the Quad Pod K65 reduce light pollution?
The Quad Pod K65 Mobile lighting towers are designed to focus all the light onto the required surface through bespoke lensing and controlled efficiency. This means that light is not wasted into the sky or spilling out onto neighbouring areas. To find out more about how Riteite’s unique beam control concept works please click here.
