K20 Power Head Dual Beam
A high power LED adjustable flood light for multiple applications
A HIGH POWER LED ADJUSTABLE FLOOD LIGHT WITH DUAL BEAM FOR MULTIPLE APPLICATIONS
Rugged high-power LED flood head for professional use
A compact low weight work light
Multitude of applications
Multi-adjustable light head and modules to achieve desired illumination
Low glare optical path with adjustable low & high light settings
Slim design with ergonomic carrying handle
WHAT IS UNIQUE ABOUT THE K20 POWER HEAD?
Dual direction lighting mode with individually adjustable lighting modules
Slim design with ergonomic carrying handle
180 degree vertical adjustment
Suitable for use with many tripod systems
360 degree horizontal rotation through cylindrical locking spigot system
Adjustable low & high light settings
WHAT IS UNIQUE ABOUT THE K20 POWER HEAD?
Dual direction lighting mode with individually adjustable lighting modules
Slim design with ergonomic carrying handle
180 degree vertical adjustment
Suitable for use with many tripod systems
360 degree horizontal rotation through cylindrical locking spigot system
Adjustable low & high light settings
Single Direction Setup
Dual Direction Setup
TECHNICAL SPECIFICATIONS OF THE K20 POWER HEAD
200W Bi Directional Single Connection
Product Code: K20-2
200W Bi Directional Daisy Chain Connection
Product Code: K20-2D
Integrated Cable Storage
4.5m Heavy Duty Tripod
(inc. male stud)
Dimensions:-
Closed: 2.0m (H)
Open: 4.5m max height extended x ø1.9m
Max Footprint: ø1.9m
Weight: 21kg
All Terrain 4.0m Tripod
(inc. male stud) A robust, light weight tripod designed for outdoor use with the K20 Power Head light that enables the user to raise the K20 Power Head Light to 4.0m
Dimensions:
Closed: 1.32mm x ø180mm
Open: 4.0m x ø1500mm
Weight: 8.7kg
Product Code: K20-T4M
Different Tripod Mountings Available

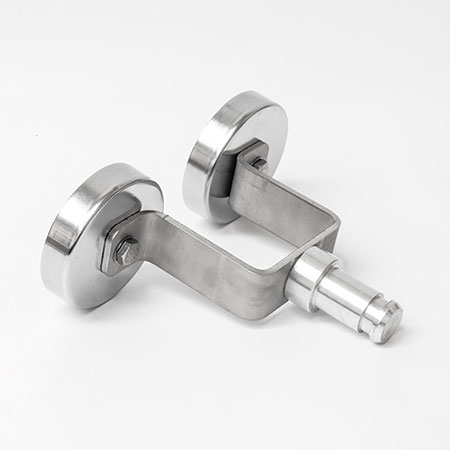

K20 / K21 Magnetic Bracket
Attach the K20 Power Head light to sturdy steel objects. When mounted the bracket design allows the K20 Power Head light to be adjusted through all angles, ensuring the best illumination for the application. Includes male stud.
Product Code: K20-MB
K20 / K21 Heavy Duty Quad Magnetic Bracket
Product Code: K20-MBQ

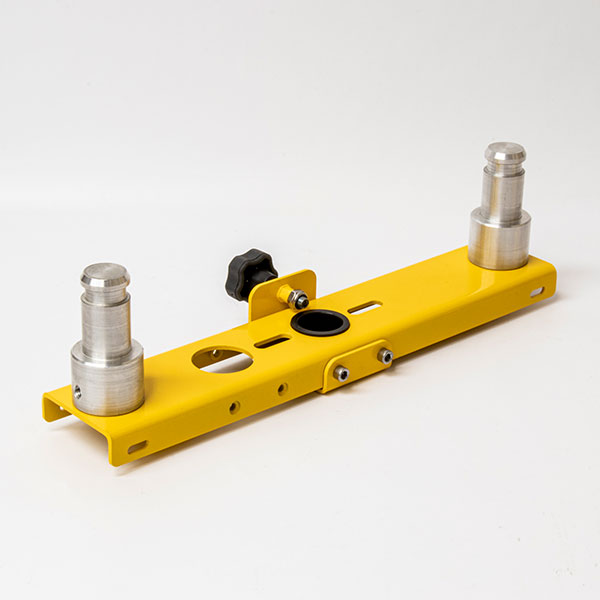

K20 / K21 Twin Head Adaptor
Product Code: K20-TAB
K20 / K21 Scaffold Bracket
The magnetic bracket accessory allows the K20 LED power head or K21 Gantry Light to be mounted to any steel surface. Product Code: K20-SB
110V 14m Extension Lead
Extension leads are available in a variety of lengths to meet customer requirements. We offer a choice of plugs and sockets suitable for any country or voltage and also a choice of cable specifications. Please contact our sales department on 01780 758585 to discuss specific requirements.
240V 14m Extension Lead
Extension leads are available in a variety of lengths to meet customer requirements. We offer a choice of plugs and sockets suitable for any country or voltage and also a choice of cable specifications. Please contact our sales department on 01780 758585 to discuss specific requirements.
Rite-Power 1750 Portable Battery Powered Generator
A 750W industrial portable battery powered generator enabling the supply of power for tools, lighting and construction equipment. Easy to transport, manoeuvre and charge with zero emissions and silent and safe operation.
Rite-Power 1750×2 Portable Battery Powered Generator
A 750W industrial portable battery powered generator that enabling supply of power for tools, lighting and construction equipment. Easy to transport, manoeuvre and charge with zero emissions and silent and safe operation.
Rite-Power 3850 Portable Battery Powered Generator
A 2500W industrial portable power generator with a rugged, compact waterproof case with industrial input and output sockets configurable as required.
Rite-Power 5250 Portable Battery Powered Generator
The RITE-POWER 5250 model of portable battery powered generator supplies 5250WH of energy at 2500W continuous power to use with lights, tools and other construction or site equipment. Zero emissions and safe operation.
Rite-Power 7700 Portable Battery Powered Generator
The RITE-POWER 7700 portable battery powered generator supplies 2500W continuous power from a 7700 WH energy bank to power tools, lighting and construction equipment. Safe and silent operation with zero emissions.
| Light Source | Twin LED module with individual positioning |
|---|---|
| Power | 100 to 200W (Low to high power) |
| Light Output | 15,000 lumens (low) to 27,000 lumens (high) @ 6400K |
| Beam Angle | 60 degrees |
| Longevity | 50,000 hours |
| Input | 90-305V AC 50/60Hz >0.98 power factor (multiple plug options available) |
| Operating Temperature Range | -20ºC to +40ºC |
| Dimensions (W x H x D) | 400mm x 130mm x 390mm (including tripod mount) |
| Weight | 4.85Kg (Linkable option 5.2Kg) |
| Construction | Powder coated aluminium |
| Cable length | 5-10m heavy duty cable (optional) |
| IP Class | IP65 (Electrical connector dependant) |
- Can the K20 run from a 110v or 240v supply?
The unit has an input voltage range of 90-305 VAC so will work with 110V or 240V circuits. Please specify the type of connector you need when ordering. - How bright is the K20?
The lumen output of the K20 is 27,000 lumens in brightness at 100%. At 50% power setting it is 15,000 lumens. The light can be adjusted in a number of ways to illuminate the required area. - What is the IP rating of the K20?
The K20 is rated IP65 so fully waterproof for normal outdoor use. - How long is the cable?
The cable length can be between 5 and 10 metres and can be adjusted to meet a specific requirement. Please let us know the length required when ordering. - Can the K20 be daisy chained?
The K20 can be fitted with input and output connectors allowing the units to be daisy chained together. This enables use of multiple units from one power source increasing the area that can be illuminated and reducing the quantity of equipment on site.
