K10 Portable Multi-function lighting system
The only portable rechargeable work light on the market which can optimally illuminate all of your remote work tasks in one single and easy to carry unit.
WHAT IS UNIQUE ABOUT THE K10?
Up to 12,000Lm
Best in class useable light output for any remote lighting task
Over 9 hours duration at 100% power
Variable focus to suit any work task
Directional or 360 degree head deployment to cover all temporary lighting requirement
Integrated 1.8m tripod system. 3m & 4.5m taller tripod systems available
Compact and light weight
Unrivalled performance to size/weight ratio
HOW CAN THE K10 BE USED?

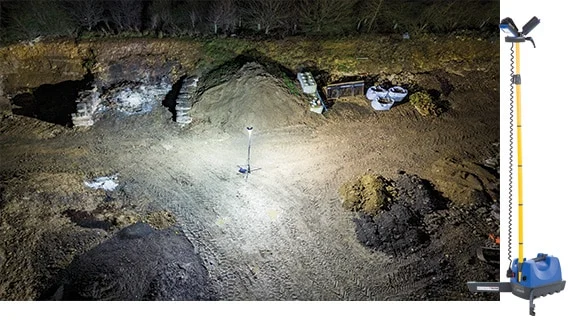

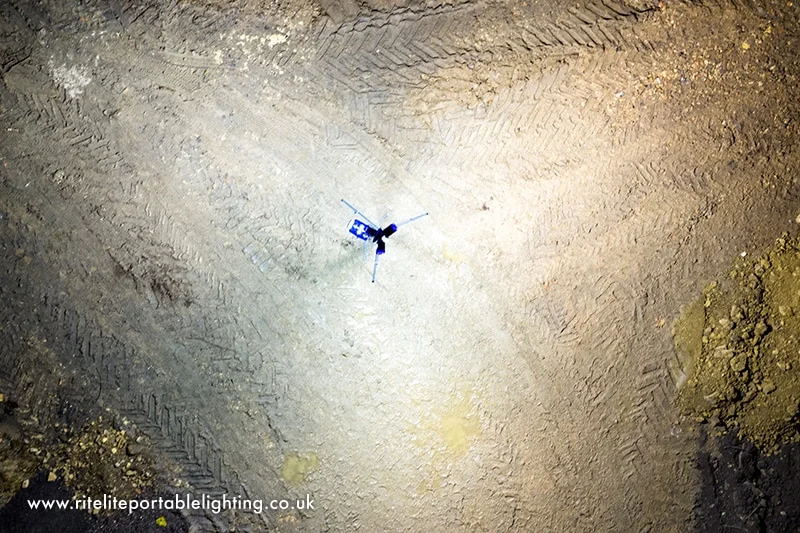

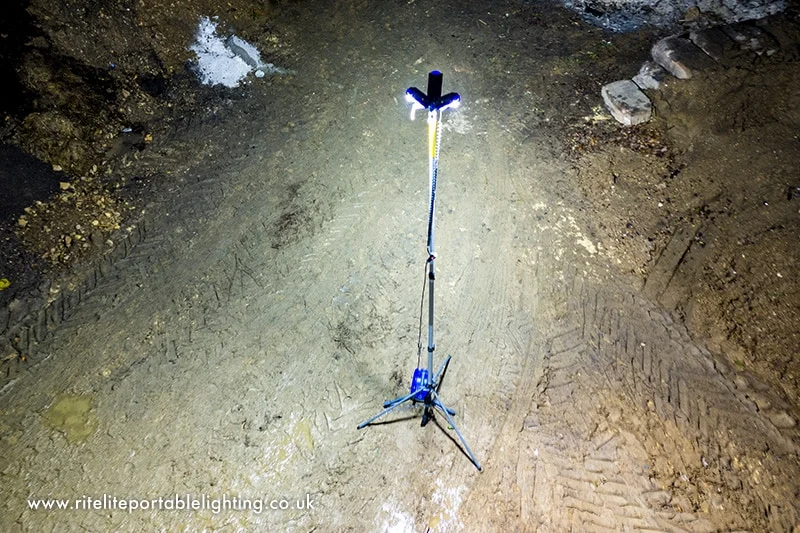

K10 360 Degree area illumination
The K10 headlets can be positioned to give full 360 degree illumination of an area at either a 1.8M height with the integrated tripod or 4.5M height using the additional tripod and extension lead.
The positioning of the headlets with either a wide flood beam or a focused spot beam ensures that the optimum light for the job in hand can be selected.

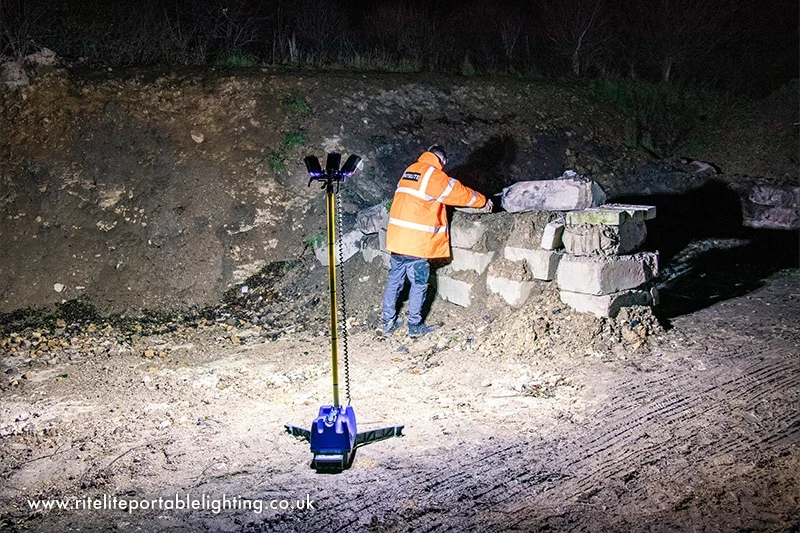

K10 180 degree directional floodlight
The K10 headlets can be positioned to direct all the high power LED light in a single direction as either a wide flood light or focused spot beam.
This setting could be optimal when working at the side of a rail track for example or working on a specific stationary task.
K10 inspection light
The K10’s flexibility extends with it being a lightweight high power solution for inspection or investigation situations. The ability to focus the light in a spot beam ensures that the light can reach further to identify any issues over a long distance.
K10 worklight for an enclosed environment.
The K10’s multi functionality means that it is not only a great site light but also perfect for use in an enclosed environment for example by an electrician working in a power cut situation or a construction worker inside a building.
WHY DO YOU NEED THE RITELITE K10?
Typical portable area floodlights have a fixed beam angle which cannot be adjusted according to the task in hand. The Ritelite K10 offers users both flood and spot beam angles and anything in between split over 3 headlets making it the ideal light for all applications.
triple light head design incorporating the unique Ritelite Light Management System, puts the maximum amount of light where you need it for any application.
All Ritelite products are designed on our philosophy to provide the highest level of “useable light” to the widest range of work task situations.
Don’t waste critical battery power illuminating the sky or any other areas where the light is of no benefit to your work task
The lumen output of the K10 is controlled to effectively illuminate a wide range of different working situations.
The “Right Light” for every task
Ritelite Beam Control for the K10
TECHNICAL SPECIFICATIONS OF THE K10
Power Functions
Light output can be dimmed from 8% to 150% and regulated as needed. Boost function to increase light output to 150% for detailed tasks where as much light as possible is required
Flood and Spot lensing
The K10 is fitted with Ritelite’s unique diffuser to enable users to switch between a wide flood beam or a focused spot beam as required or even a combination of both. Each headlet can be switched between the different beam angles to enable the user to create their optimum light effect for the application and maximum flexibility.
Integrated tripod
As with the K9 Worklight, the K10 comes with an integrated, quickly deployable tripod to allow the light head to be raised up to 1.8M high. This compact tripod solution ensures the K10 can be used in a variety of different applications without the need for additional equipment. The K10 also has in built stabiliser legs to give enhanced stability on uneven surfaces.
Multi-charging options
The K10 charges from 12V, 24V & 240V supplies making it flexible around the customer’s requirement. All units have battery monitoring software to monitor battery and charging status and battery levels are clearly indicated on the K10 light to indicate duration left before re-charge is required.
- Light output up to 12,000 lumens
- Colour temperature 6500 Kelvin
- 15 brightness levels
- Protection class: IP54
- Stowed dimensions (L) 430mm x (W) 215mm x (H) 255mm
- Height with integral tripod: 1.8m
- Height with additional tripod: 4.5m
| Battery Type | Product Code | Duration at 100% | Weight (including poles) |
|---|---|---|---|
| SLA | K10/SLA/V/MC | 2h 45m | 11.75Kg |
| Lithium Phosphate | K10/LP/V/MC | 4h 15m | 8.35Kg |
| Lithium | K10/L2/V/MC | 4h 15m | 7.75Kg |
| Dual Lithium | K10/L2X2/V/MC | 9h 15m | 8.9Kg |
Optional fast charging solutions available – please contact us for further details.
K10 Extension Poles
Stored in the base of the K10, a set of quick lock non-conductive fibreglass extension poles that slot and twist together enabling the K10 portable worklight to be extended from a torch/worklight into a 1.8m area floodlight.
Vehicle Vepac Adaptor
The standard Vepac adaptor cable for charging a Vepac equipped K10 Ritelite portable worklight in any vehicle. Suitable for use with K10 worklights fitted with either Sealed Lead Acid or Lithium batteries.
Mains Vepac Adaptor
This mains Vepac adaptor will allow you to charge your Vepac equipped K10 Ritelite portable worklight from any mains power outlet. Suitable for use with K10 worklights fitted with either Sealed Lead Acid or Lithium batteries.

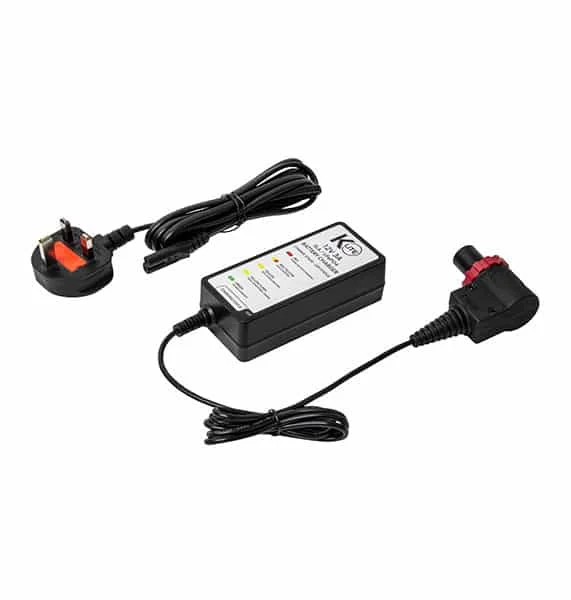

12V 3A Battery Charger
The compact Alpha Plug Top Battery Charger has been designed to charge the K10 portable worklights fitted with Sealed Lead Acid batteries. This charger is not suitable for lithium models.
Vepac Vehicle Battery Charger
The compact Vepac Vehicle Battery Charger is designed to charge your K10 worklight or other device fitted with a Sealed Lead Acid battery on the go from any vehicle.
Beta 12V 4A Battery Charger
The Beta 12V 4A Battery charger is a desktop battery charger with a wide range input voltage.
K10 4.5m Tripod System C/W Adjustable Legs
Use your K10 on multiple locations and terrains with an adjustable leg. The adjustable leg forms part of the 4.5m K10 Tripod System and enables the user more flexibility when positioning the K10 to light up a larger area.
Robust Carry Case
A robust, well padded carry case designed to safely store and carry your K9 or K10 unit. Comes with handles and shoulder strap for easy transportation and it has storage in the lid for chargers and other accessories.
5-Way Vepac Mains Adaptor
A 5-way power supply that enables the user to charge 5 Vepac K10 units at once.
Tripod Extension Lead
A 3m extension lead that enables the K10 LED Head to be fitted to the 4.5m tripod options to enable maximum flexibility.
5-Way Battery Charger
A battery charger ideal for charging up to 5 devices at once. The 5-way battery charger is perfect for charging 5 K10 portable worklights fitted with Sealed Lead Acid batteries in a workshop or site environment.
Beta Desktop Battery Charger
Designed for use with K10 worklights fitted with Sealed Lead Acid batteries, the Beta Desktop Battery charger offers a faster recharge than the Alpha Plug Top charger and gives a 12V 4A output.

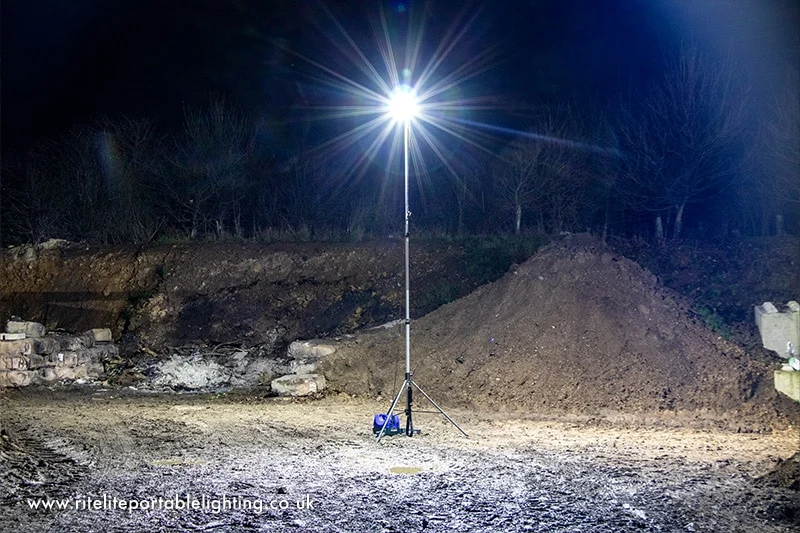

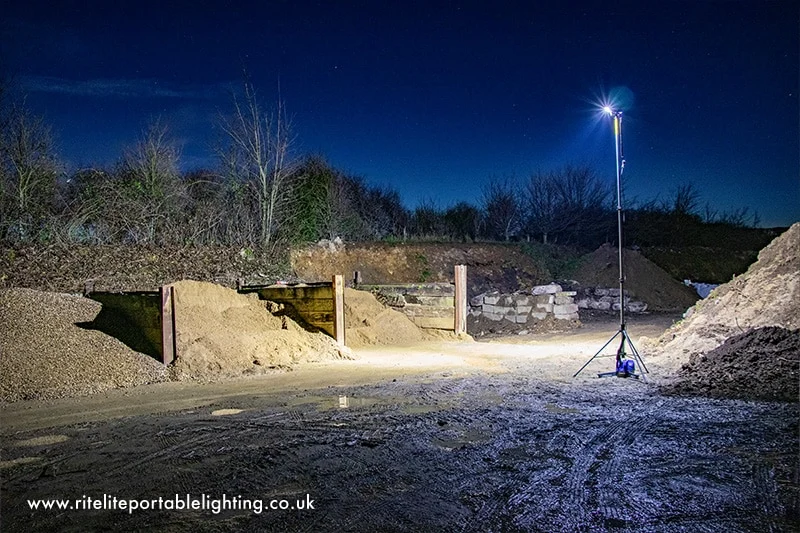

K10 4.5m Tripod System
Light up a larger area, achieve maximum uniformity and full 360 degree light effect with the K10 4.5m Tripod System. Shoulder strap included. Total weight: 4.4kg. Total footprint at extended height: 1.52m (legs at max spread).
- What is the light output on K10?
The K10 has a maximum light output of 12,000 lumens, when used at maximum brightness of 150%. At 100% brightness the output is 8,500 lumens. - How long will it last on full power?
At 100% brightness when used with the dual Lithium battery the K10 will last up to 8 hours. When used at 150% brightness duration would be approximately 4 hours 30 minutes duration. - How long does it take to recharge?
Recharging the SLA or Lithium models will take up to 7 hours when using the in-built VEPAC charging system. Dual Lithium units will take up to 15 hours. - What is the life expentancy of batteries?
The life expectancy of the batteries used in the K10 Portable worklights will depend on a number of factors including environment and use and care. As an approximate guide we would expect Sealed Lead Acid batteries to last for approximately 5 years and Lithium batteries 10+ years. - What is the maximum duration from the K10’s battery?
When used at the lowest power setting with a dual Lithium battery duratation would be approximately 90 hours.
