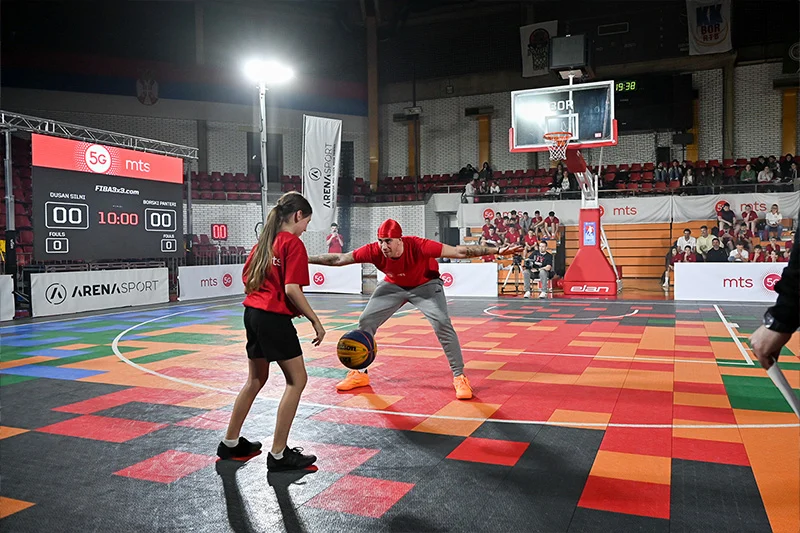

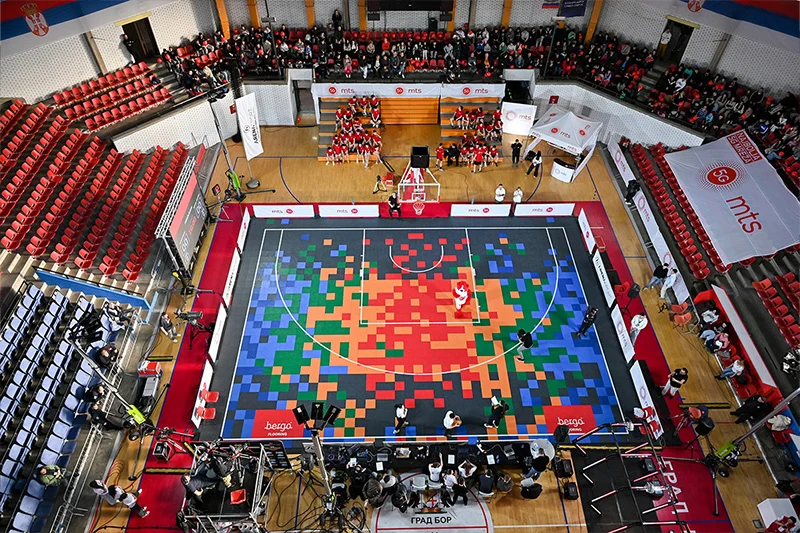

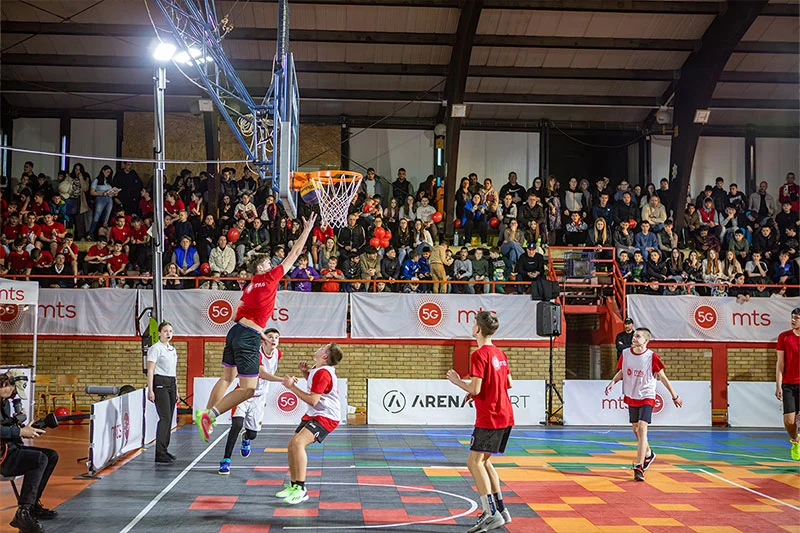

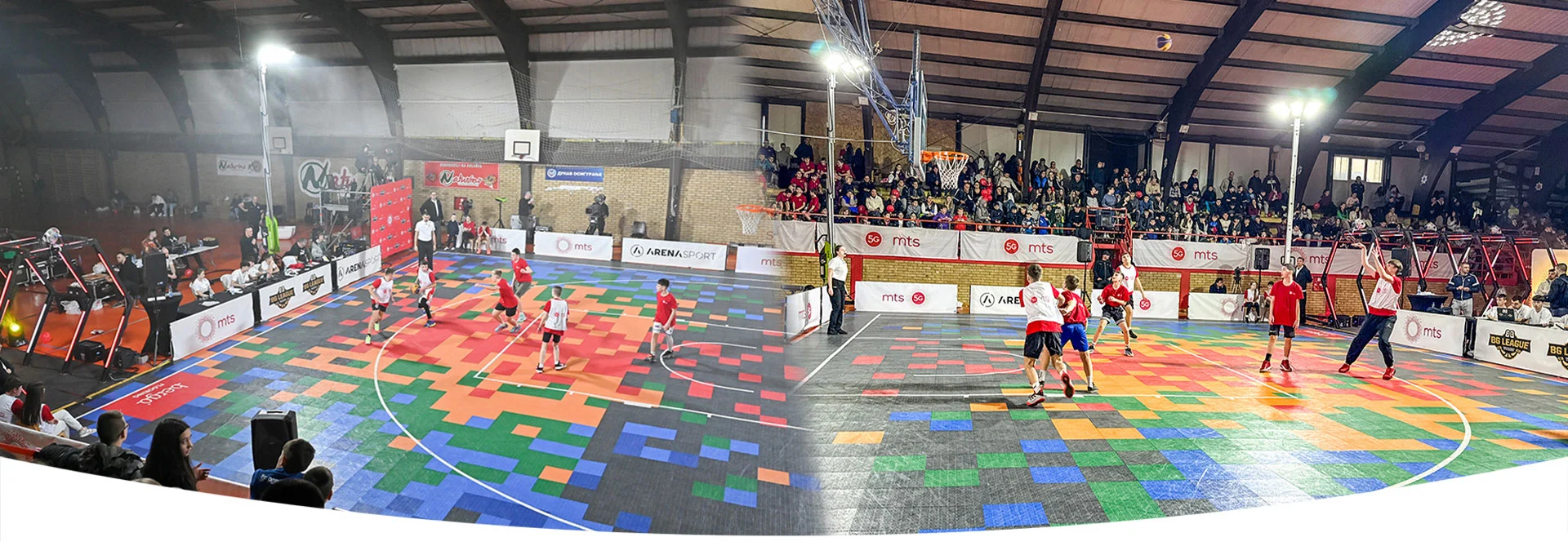

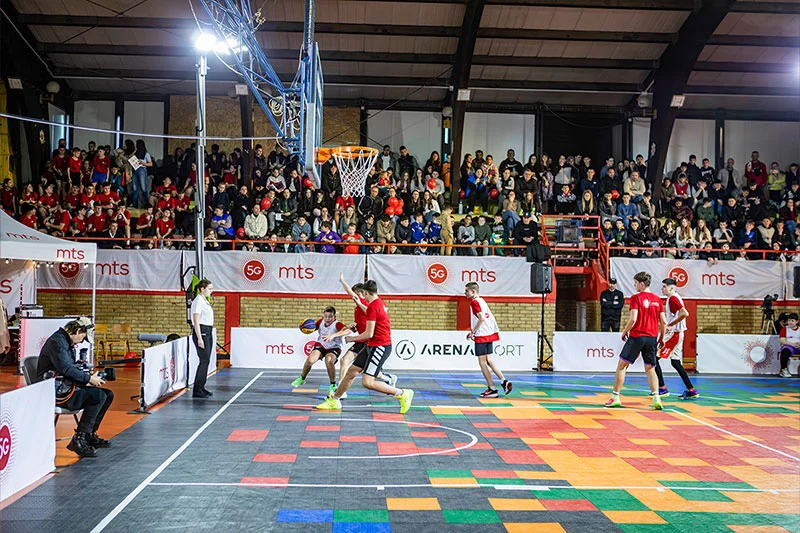

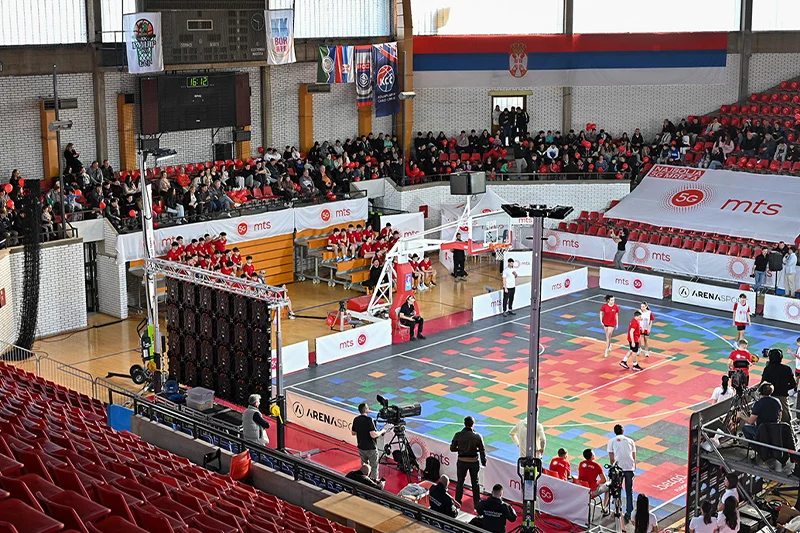

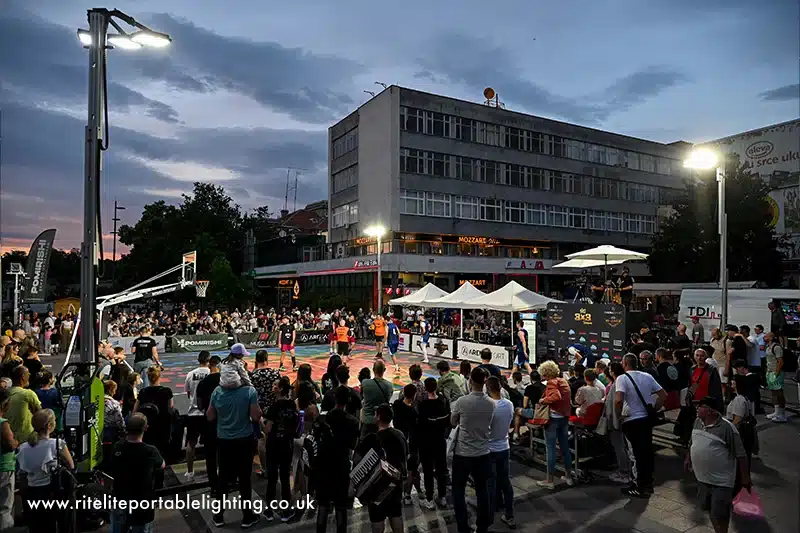

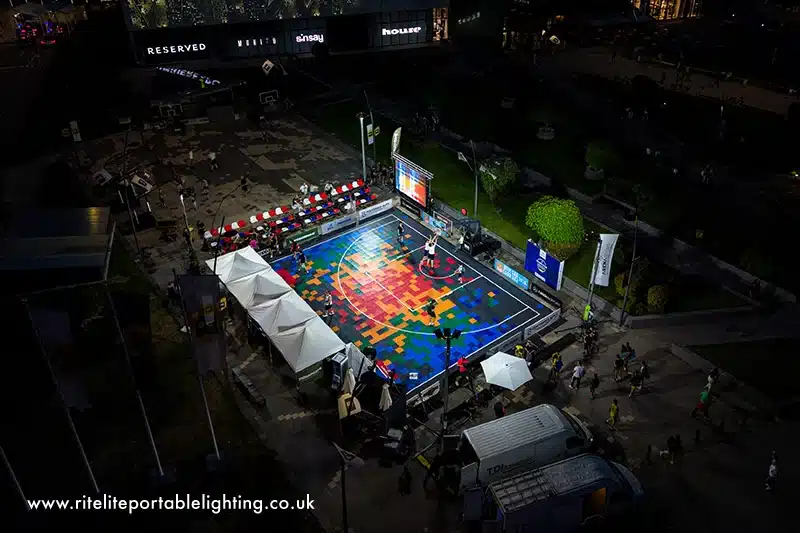

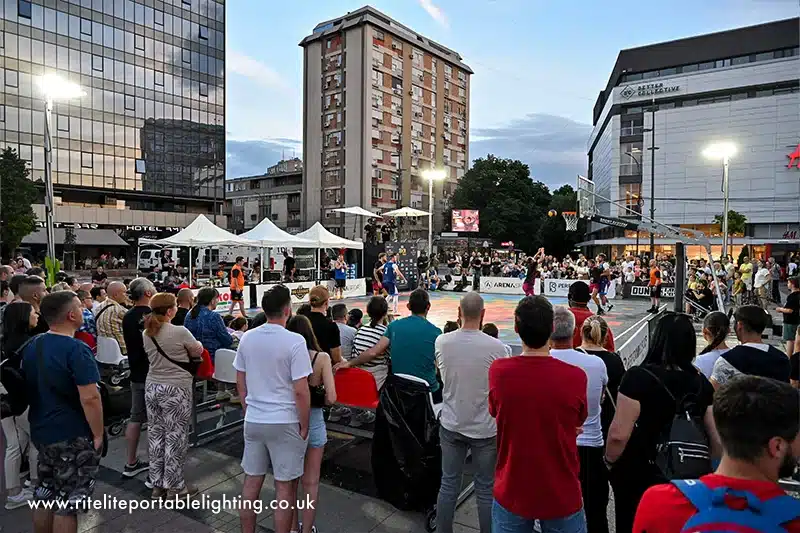

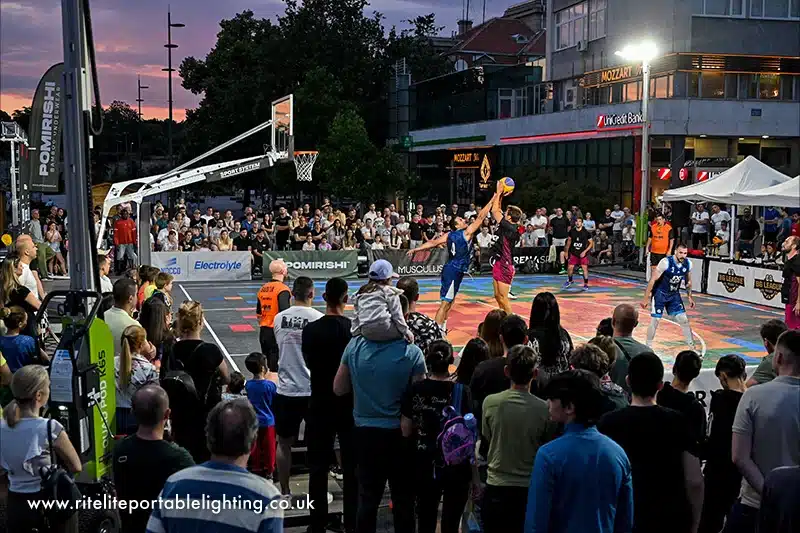

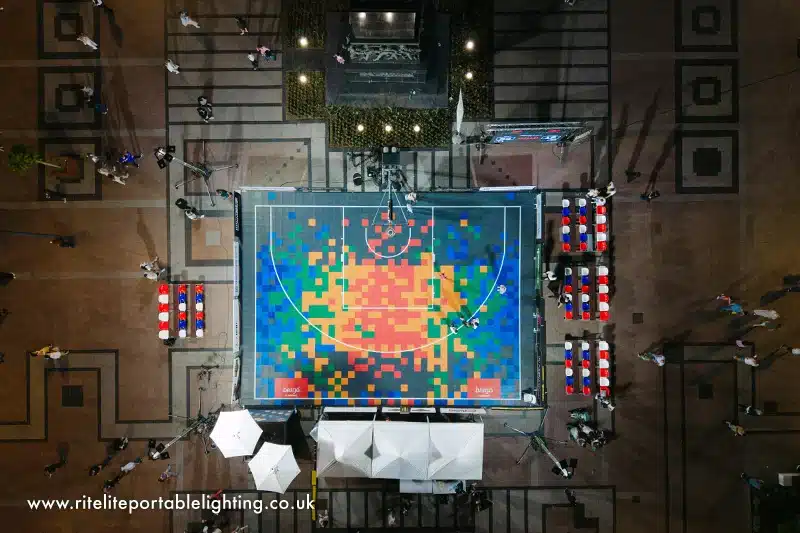

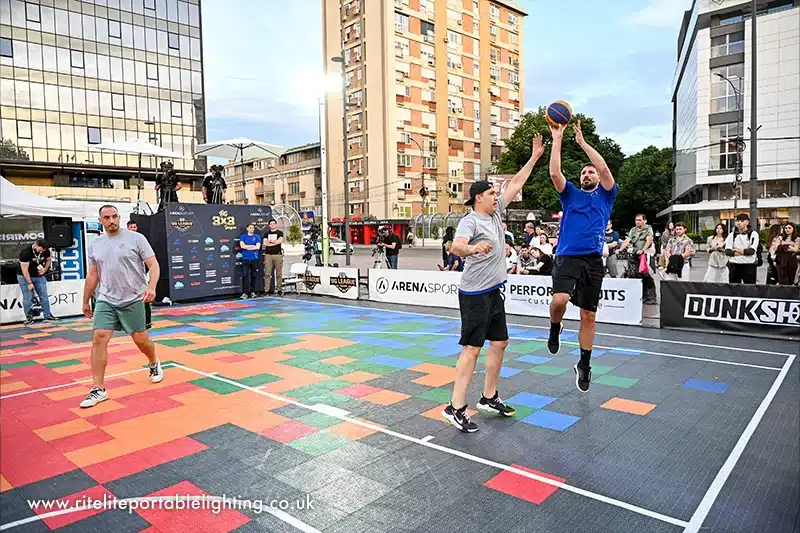

A flexible, high-performance area flood lighting solution for 3×3 Basketball
The Quad Pod K65 redefines possibilities for sports lighting. The smarter alternative to
permanent floodlights, so you can play anytime, anywhere.
Permanent lighting performance from a mobile system with Ritelite beam controlled focusing
Minimised light pollution. Up to 70% less light spill than typical lighting tower designs - perfect for residential or indoor locations
Flexible power options. Runs on lithium batteries, diesel or petrol generators or mains power. 110v & 240V input model options
Fast, one-person set-up. Safe and simple to position and deploy on any playing surface, no tools or planning permission required
180°-360° adjustable light heads to meet all training and use requirements
KEY FEATURES & BENEFITS OF THE QUAD POD K65 MOBILE SPORTS LIGHTING TOWER
Superb light output for excellent court coverage for spectators, players and television cameras. Similar performance to a permanent flood lighting system.
Compact extendable design, small footprint for easy storage and transportation. Fits easily fits through standard doorways and gates
Even coverage across the court. Beam-controlled lensing minimised dark spots and focuses all the light onto the playing surface
Built-in safety for peace of mind. Safe mast design, safety lock and RCBO isolation switch ensures safe operation in busy environments
Quick set-up in minutes - no tools required
Flexible for any location. 100% battery or mains or generator powered.
TECHNICAL SPECIFICATIONS OF THE K65 QUAD POD LIGHTING TOWERS
Integrated manual winch with automatic safety brake
The slack rope safety system automatically detects when the winch rope is not correctly tensioned and prevents the user from continuing to operate the winch in the mast lowering direction.
Automatic mast safety interlock system
Market leading, double pin safety locking system ensures that the mast is automatically and safely mechanically locked in all positions when raising the mast. This system also acts as a “dead man’s handle” for safe lowering of the mast.
Removable wheel kits
For semi-permanent installations to safeguard against theft
Automatic mast safety and stowage lock
Helps prevent mast from being raised until legs are deployed and secures mast for transport
Operator level RCBO electrical safety isolation switch
No need to lower mast to turn luminaries on and off. Instant power off should an electrical problem occur
One person deployment system
Even on difficult terrains, enabling use in a much wider range of applications than other lighting towers. Compact to store and transport. Will fit through a standard size door enabling storage in any location.
Unique parallel mast design
Allows the mast sections to slide past each other and the light head assembly to be fully retracted and stowed at the base of the unit. The centre of gravity is very low with the weight perfectly balanced over the wheels for easy and safe handling even on difficult terrain.
Low pressure footprint
Low pressure footprint with non-marking base. Optimum stability with minimum ground impact. Ideal for deployment on impressionable ground surfaces.
Fork lift pockets and tie down points
For safe and fast handling, loading and unloading.
Low centre of gravity for safe handling on site
Typical telescopic mast designs do not allow the light heads to be retracted below approx 2m height for transportation and positioning on site. This results in either having to remove the light heads or in a high centre of gravity making positioning and handling difficult and potentially unsafe, especially on uneven surfaces.

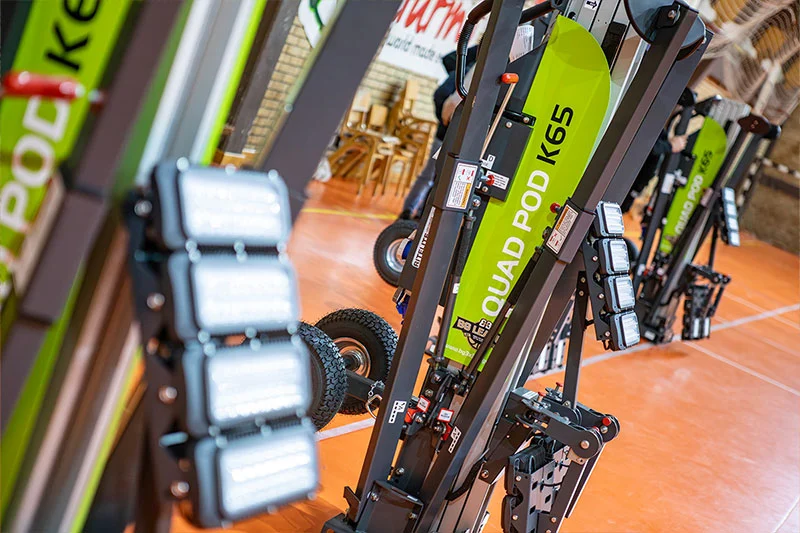

Pre-aimed ‘beam controlled’ light heads
Enables optimised illumination and uniformity to be achieved immediately on any playing surface. No onsite adjustment or setup required.
Independently adjustable legs
Rapid to deploy, Independently adjustable legs. Designed to enable maximum stability on all playing surfaces.
Built in level gauge
Reduces set-up time and allows the operator to ensure that the mast is setup correctly and safely.
Mains, battery and generator powered
For use with existing power supply equipment. 110V / 240V AC & DC options available
Low pressure wheel / tyres
Designed for easy 1 person manoeuvrability on and off the sports pitch without damage to the playing surface. Quick release wheel kit can be removed in seconds and stored remotely for additional security.
No power at your pitch? No problem.
Light any sport, anywhere with the QUAD POD K65 DC battery system for silent, emission-free training sessions.
100% standalone battery powered sports floodlighting system to DIN EN 12193 for full size pitches.
Battery powered, silent, fume-free operation – up to 3h 30m duration to meet all training requirements.
Funding friendly. Train without hiring expensive floodlit venues. Low recharge costs.
Waterproof IP65. Robust construction, highly efficient long-life lithium batteries, low maintenance requirements.
Reliable and safe to use - No fuel required. Protection from overload, over heating and over discharge
Multi-function display - Easily view charge status, battery capacity, estimated run or recharge time.
Do you want the flexibility to power other equipment? Do you need to use the Quad Pod K65 for other uses or events? RItelite’s range of large portable battery powered generators provide reliable, efficient portable power to run the Quad Pod K65 mobile lighting towers for longer training sessions.
Purchasing an AC 110V / 240V specification QUAD POD K65 with a RITE-POWER battery generator also ensures the product can be powered by any AC mains supply for alternative uses.
Other specifications available for longer duration or powering more than one Quad Pod at a time.
* 1 generator powering 1 x K65 Quad Pod with 3 LED 450W Heads. Duration may depend on operating conditions.
+ Costs calculated based on electricity cost of 30p per kW/h.
PETROL GENERATORS
Compact, mobile petrol generators suitable for powering Ritelite area LED floodlights including the K65 mobile lighting towers. Suitable for many applications including sports fields, events and construction sites.
Ready to move where power is needed, both units are strong and robust with integrated handles and wheels for manoeuvrability.
110V / 230V MAINS POWER
EXTENSION LEADS
Extension leads are available in a variety of lengths to meet customer requirements. We offer a choice of plugs and sockets, also a choice of cable specifications.
110V 14m Extension Lead
Extension leads are available in a variety of lengths to meet customer requirements. We offer a choice of plugs and sockets suitable for any country or voltage and also a choice of cable specifications. Please contact our sales department on 01780 758585 to discuss specific requirements.
240V 14m Extension Lead
Extension leads are available in a variety of lengths to meet customer requirements. We offer a choice of plugs and sockets suitable for any country or voltage and also a choice of cable specifications. Please contact our sales department on 01780 758585 to discuss specific requirements.
K65
| Product Code | Mast Height | Light Heads | Weight | Closed Dimensions | Open Dimensions | Wattage | Voltage | Lumens | Equivalent Lumens* |
| K65/MK6-L3X4/110V | 6.5m | L3X4 | 237Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 6.5m | 1460 | 110 | 195,000 | 266,000 |
| K65/MK6-L3X4/230V | 6.5m | L3X4 | 237Kg | 1.09m x 0.83m x 1.95m | 2.37m x 3.1m x 6.5m | 1460 | 230 | 195,000 | 266,000 |
* 266,000 lumens when comparing light output to other symmetrical lensed beam pattern products.
Different specifications are available for specific applications. To discuss your application please contact us.
FOOTPRINT WHEN DEPLOYED
FOOTPRINT WHEN STOWED
K65 Sports Protection Pad Kits
Additional player protection when locating K65 on run off areas for sports applications with space restrictions. Lightweight, waterproof, polyester reinforced PVC flame retardant material with waterproof expanded PE foam. Quick and easy to install and remove. Can be retrofitted on existing K65 Sports Mobile Lighting Towers and compatible for use together with Quad Pod Cover.
K65-PROTECT
Standard protection – front and rear protection pads + 2 x leg protection pads for front K65 stability legs
K65-PROTECT360
360° protection – front and rear protection pads + 4 x leg protection pads for all K65 stability legs
Quad Pod Cover
A high quality waterproof cover to protect the Quad Pod K65 when stored outside. It attaches to the unit and can be tied back during operation allowing access to all user controls.
Anemometer
Anemometer including magnetic bracket. Monitor the wind speed with this mast mountable anemometer. Quick installation. Automatic levelling. Wireless connection with mobile phone app up to 100m range. Adjustable maximum wind speed alarm function.
110V 14m Extension Lead
Extension leads are available in a variety of lengths to meet customer requirements. We offer a choice of plugs and sockets suitable for any country or voltage and also a choice of cable specifications. Please contact our sales department on 01780 758585 to discuss specific requirements.
240V 14m Extension Lead
Extension leads are available in a variety of lengths to meet customer requirements. We offer a choice of plugs and sockets suitable for any country or voltage and also a choice of cable specifications. Please contact our sales department on 01780 758585 to discuss specific requirements.
Rite-Power 3850 Portable Battery Powered Generator
A 2500W 3850 W/h industrial portable power generator. Rugged, compact waterproof case with industrial input and output sockets configurable as required.
Rite-Power 5250 Portable Battery Powered Generator
The RITE-POWER 5250 model of portable battery powered generator supplies 5250WH of energy at 2500W continuous power to use with lights, tools and other construction or site equipment. Zero emissions and safe operation.
Rite-Power 7700 Portable Battery Powered Generator
The RITE-POWER 7700 portable battery powered generator supplies 2500W continuous power from a 7700 WH energy bank to power tools, lighting and construction equipment. Safe and silent operation with zero emissions.
5.4kW Electric Start AVR Generator
A power source for applications including construction sites, sports fields, and events. Available with either a 110V or 230V output.
