Portable Lighting Tower

A high power mobile outdoor floodlighting solution specifically designed for Construction, Hire, Rail, Utilities and Outdoor Events

Watch The Quad Pod Portable Lighting Tower In Action

About Our Industrial Lighting Tower

The special demands of the construction, hire, rail and utilities sectors require unique solutions from equipment manufacturers, none more so than for mobile lighting equipment.

The potential applications for mobile lighting towers are wide ranging and diverse. From construction sites to outdoor sporting events, each application has its own specific requirements regarding the type of light projection required, power sources available, access to the site and placement of the towers.

Many applications including outdoor events take place on surfaces which must be protected from damage. Vehicle access may be restricted or prohibited meaning that traditional solutions including road towable lighting towers cannot be used.

Manufactured by Ritelite in the UK, the K50 and K65 Portable Lighting Towers provide the ideal solution for powerful, flexible and highly mobile lighting towers which can be used in just about any situation.

Two models are currently available: the K50 with a working height of 5m and the K65 with 6.5m. Both models are fitted with high power energy saving LED light heads which can be configured to provide an optimised light output according to specific user applications.

The K50 & K65 feature a rapid one person deployment system, reducing handling and set-up / break-down times to a minimum. All models can be deployed by one person in less than 2 minutes. The innovative and compact design optimises handling whilst also minimizing space claim for storage and transport.

In rough terrain applications, where access to site is restricted, or prevention of ground damage is critical, the built-in folding wheels with optional low pressure tyres allow the K50 & K65 lighting towers to be moved into position by one person. The Flexible power options enable the K50 & K65 to be used almost anywhere.

Why is the Quad Pod portable lighting tower so popular?

Highly flexible – easy to manoeuvre to any location

One person deployment system – quick and easy to set up in under 2 minutes

High power LED lights – 24,000 lumens of light per 200W light head

Generator or mains powered

Robust and ruggedized structure

Individual, fully adjustable light heads

Not Sure How Many Lights You’ll Need?

Tell us a little bit about your lighting area and we’ll create a custom lighting diagram. It will show you how many lights you’ll need to cover the area.

Quad Pod Light Effects

The Quad Pod’s Flexible Adjustable LED Light heads can be positioned to create the desired light effect from a 180 degree directional light to a full 360 degree area light.

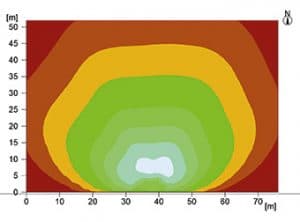

180 Degree Light

360 Degree Light

Download The Quad Pod Brochure

Please enter your email address below and we will instantly send you a copy of the brochure.

New For 2017

More Light

New 200W Light Heads

New 200W Ultra Efficient High Power 24,000 lumen LED Head

Total for 6 head Quad pod up to 144,000 lumens. The Quad pod is now fitted with the Latest Generation of High performance LED light source with new technology from Philips LED. These improved LEDs make the Quad Pod light source ultra bright, ultra efficient, rugged and reliable. Each 200W head offers an impressive 24,000 lumens of 6000K LED light.

New improvements for transport and logistics

Fork lift pockets combined with tie down points

New fork lift pockets and tie down points improves handling and distribution

Fully enclosed fork lift pockets combined with additional tie down points allow maximum load out and simple handling at depots and destination.

Slack rope protection system

Slack rope protection system to prevent the winch from being operated in an unsafe condition.

Mast Safety interlock system

Mast Safety interlock system to prevent the mast from being raised until the last stabiliser leg has been deployed.

Faster Deployment

Under 2 Minutes!

New Faster deployment in less than 2 minutes due to improved leg retaining catches and high grip tension bars.

The new rubber strap and catch system allows rapid release and securing of the Quad Pod legs. The addition of a Friction grip on the Leg tie bars allows quick tension of legs even if ice or mud is present.

Integrated manual winch with automatic brake

Allows safe raising / lowering of the mast

Individual, fully adjustable light heads

Allows light to be adjusted to suit any application including a 360° light pattern

RCD electrical safety isolation

Instant power off should an electrical problem occur

Independently adjustable legs

Copes with uneven surfaces

Built in level gauge

Ensures vertical mast raise

Automatic stowage lock

Prevents mast movement in storage or transport

Automatic mast raise safety interlock

Prevents chance of mast lowering unless correct operation used

One person deployment system

Quick and easy setup

Fork lift pockets and tie down points

Allow maximum load out and simple handling at depots and destination.

Large low pressure footprint

Gives non-marking safe secure base
Product CodeMast HeightNumber Of HeadsTechnologyWeightClosed DimensionsOpen Dimensions
K50/MK2-LED45m4LED210Kg1030 x 850 x 1970mm2370 x 3100 x 5315mm
K50/MK2-LED65m6LED229Kg1030 x 850 x 1970mm2370 x 3100 x 5315mm
K65/MK2-LED46.5m4LED220Kg1030 x 850 x 1970mm2370 x 3100 x 6840mm
K65/MK2-LED66.5m6LED239Kg1030 x 850 x 1970mm2370 x 3100 x 6840mm
K50/MK2-MH45m4Metal Halide165Kg1920 x 770 x 700mm2370 x 2370 x 5540mm
K50/MK2-MH65m6Metal Halide177Kg1920 x 770 x 700mm2370 x 2370 x 5540mm
K65/MK2-MH46.5m4Metal Halide192Kg1920 x 770 x 750mm3770 x 3770 x 6570mm
K65/MK2-MH66.5m6Metal Halide204Kg1920 x 770 x 750mm3770 x 3770 x 6570mm

The Quad Pod portable lighting solution can be powered by:

  • AC mains power supply (110V – 250V AC)
  • Petrol or diesel generators

Extension Leads
Extension leads are available in a variety of lengths to meet customer requirements.

Wheel Options
Two standard wheel options are offered to provide the maximum stability, optimum handling and minimum ground impact on a range of surfaces:

  1. Low profile wheels / tyres – particularly suitable for hard / dry surfaces
  2. Low pressure pneumatic wheels / tyres – particularly suitable for grassed or uneven surfaces and for use in wet conditions

wheel-options
