WHY IS THE QUAD POD K50 & K65 SO POPULAR IN THE EVENTS INDUSTRY?

Easy to store, transport and set up

Safe to operate with mast safety interlock system to prevent unsafe set up

Instant, flicker free high powered LED light

One person quick deployment

Ability to illuminate in any direction from 180˚ to 360˚ light to provide light where it is needed

110V & 240V options for power input from generator or mains power

KEY FEATURES OF OUT QUAD POD K50 & K65 MOBILE LIGHTING TOWERS

Ultra Efficient High Power 200W LED Light heads with options up to 240W – Total 245,000 maximum lumens per 6 head Quad Pod using only 1440w electricity

Unique parallel mast design. The centre of gravity is very low with the weight perfectly balanced over the wheels for easy and safe handling on any terrain for any event

Safe to operate - in built mast safety systems and operator level RCBO electrical safety isolation switch

One person quick deployment. Highly mobile and easy to manoeuvre over any terrain. Compact to store and transport

Automatic Mast Safety Interlock System to prevent unsafe set up

Silent, fume free operation when mains powered

OBTENGA UNA COTIZACIÓN
DESCARGA DE FOLLETOS
Finanzas & financiación

TECHNICAL SPECIFICATIONS OF THE K50 & K65 QUAD POD MOBILE FLOODLIGHTS

Individual, fully adjustable light heads

Allows light to be adjusted to suit any application including a 360° light pattern.

Integrated manual winch with automatic safety brake

The slack rope safety system automatically detects when the winch rope is not correctly tensioned and prevents the user from continuing to operate the winch in the mast lowering direction. This helps to protect the user from potentially unsafe operating conditions and also protects the wire rope and winch from damage.

Operator level RCBO electrical safety isolation switch

No need to lower mast to turn luminaries on and off. Instant power off should an electrical problem occur.

Independently adjustable legs

Rapid to deploy, Independently adjustable legs. Designed to enable maximum stability in all typical work site deployment conditions.

Built in level gauge

Reduces set-up time and allows the operator to ensure that the mast is setup correctly and safely.

Fork lift pockets and tie down points

For safe and fast handling, loading and unloading at storage depots and work sites.

Automatic mast safety and stowage lock

Helps prevent mast from being raised until legs are deployed and secures mast for transport.

Automatic mast safety interlock system

Market leading, double pin safety locking system ensures that the mast is automatically and safely mechanically locked in all positions when raising the mast. This system also acts as a “dead man’s handle” for safe lowering of the mast.

One person deployment system

Even on difficult terrains, enabling use in a much wider range of applications than other lighting towers.

Low pressure footprint

Low pressure footprint with non-marking base. Optimum stability with minimum ground impact. Ideal for deployment on impressionable ground surfaces.

Unique parallel mast design

Allows the mast sections to slide past each other and the light head assembly to be fully retracted and stowed at the base of the unit. The centre of gravity is very low with the weight perfectly balanced over the wheels for easy and safe handling even on difficult terrain.

Low centre of gravity for safe handling on site

Typical telescopic mast designs do not allow the light heads to be retracted below approx 2m height for transportation and positioning on site. This results in either having to remove the light heads or in a high centre of gravity making positioning and handling difficult and potentially unsafe, especially on uneven surfaces.

Product Code Mast Height Number Of Heads Technology Weight Closed Dimensions Open Dimensions Wattage

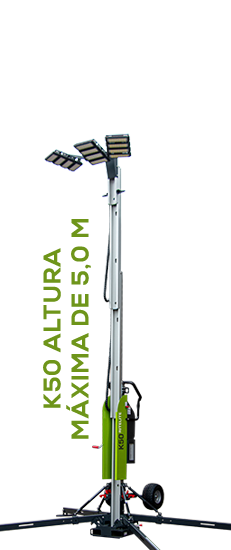

K50/MK4-L4-200W 5.2m 4 LED 220Kg 1090 x 830 x 1950mm 2370 x 3100 x 5200mm 200
K50/MK4-L6-200W 5.2m 6 LED 240Kg 1090 x 830 x 1950mm 2370 x 3100 x 5200mm 200
K65/MK4-L4-200W 6.62m 4 LED 230Kg 1090 x 830 x 1950mm 2370 x 3100 x 6620mm 200
K65/MK4-L6-200W 6.62m 6 LED 250Kg 1090 x 830 x 1950mm 2370 x 3100 x 6620mm 200
K65/MK4-L4-240W 6.62m 4 LED 230Kg 1090 x 830 x 1950mm 2370 x 3100 x 6620mm 240
K65/MK4-L6-240W 6.62m 6 LED 250Kg 1090 x 830 x 1950mm 2370 x 3100 x 6620mm 240

GENERATORS

We offer a choice of two generators which are ideal for use with all our Quad Pod mobile lighting towers. Both are portable, efficient to run with low carbon emissions, and low noise levels.

1.6 KW• Rated output: 1.6 KW
• Fuel Capacity: 4.2 litre
• Running time: up to 5 hours*
• Rated voltage: 110 or 230V
• Noise levels: 61 dBA
• Dimensions: 499 x 285 x 455mm • Weight: 21Kg * 1 generator powering 1 x K65 Quad Pod with 6 LED 200W Heads. Duration may depend on operating conditions.

How many Quad Pods will the 1.6KW generator supply? • 1 x K50 4 or 6 head unit with 200W light heads • 1 x K65 4 or 6 head unit with 200W light heads

3.0 KW

• Rated output: 3.0 KW
• Fuel Capacity: 10 litre
• Running time: up to 10 hours*
• Rated voltage: 230V
• Noise levels: 65 dBA
• Dimensions: 578 x 440 x 510mm
• Weight: 45Kg

How many Quad Pods will the 3.0KW generator supply? • 3 x K50 / K65 4 head unit with 200W light heads • 2 x K50 / K65 6 head unit with 200W light heads • 2 x K50 / K65 6 head unit with 240W light heads

EXTENSION LEADS

Extension leads are available in a variety of lengths to meet customer requirements. We offer a choice of plugs and sockets, also a choice of cable specifications.
